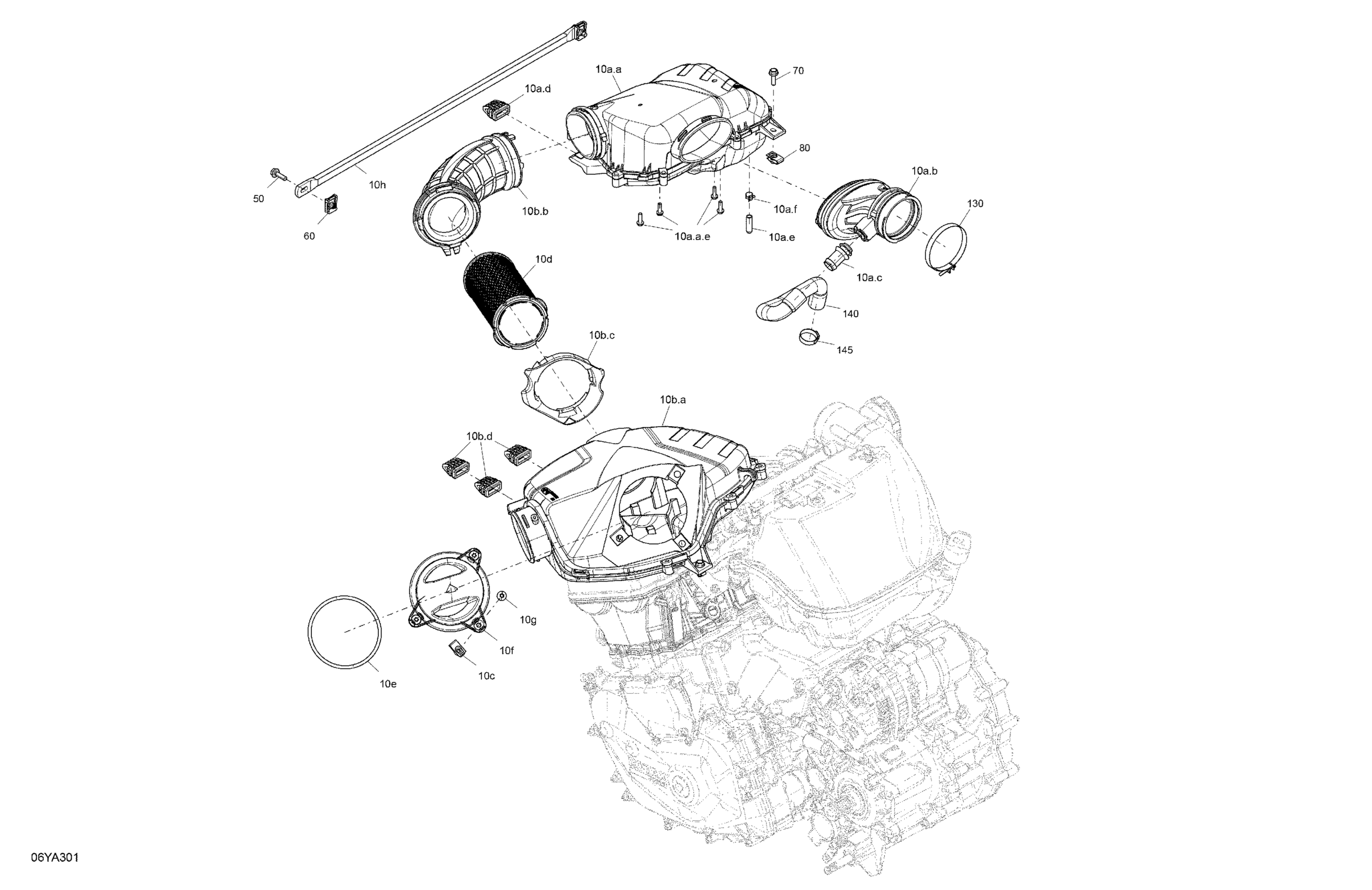

Can-Am RT - Chalk Metallic, 2021 Engine - Air Intake Diagram

Description

Price

10a.a

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$55.00

10a.a.e

Hex. Screw M4.8 X 1.8

243141680

$4.69

10a.b

Air Intake Adaptor

707800388

$34.00

10a.c

Breather Valve

273000234

$10.63

10a.d

Rubber Stopper

707800452

$8.00

10a.e

Cap Plug

293000105

$3.38

10a.f

Spring Clamp

414554800

$0.83

10b.a

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$55.00

10b.b

Intake Adaptor

707800485

$32.00

10b.c

Ring

707800525

$17.00

10b.d

Rubber Stopper

707800452

$8.00

10c

Panel Nut M6 X 1.0

250100198

$1.73

10d

Air Filter

707800483

$47.00

10e

O-ring

707800455

$8.00

10f

Cap

707800484

$19.00

10g

Torx Truss Screw M6 X 16

250000348

$1.74

10h

Link Rod | Includes 10k to 10k1

707800432

$24.00

Hex. Flange Screw M6 X 20

207662044

$1.66

Panel Nut M6 X 1.0

250100208

$1.07

Hex. Flange Screw M6 X 20

207662044

$1.66

Panel Nut M6 X 1.0

250100198

$1.73

130

Gemi Clamp

508000346

$9.31

140

Formed Hose

707800824

$19.00

145

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12
