Description

Price

1>10

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$561.49

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Intermedite Gear, 21 Teeth

420434582

$43.99

4

Needle Bearing | See Item 21a

420232654

$20.99

5

Intermedite Gear Shaft

420620681

$51.99

6

Ball Bearing

420632295

$47.49

7

Ball Bearing

420932822

$30.49

8

Torx Screw M6 X 16

420241529

$2.11

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Seal

420950089

$19.49

11

Support

420611451

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.69

13

Index Spring

420239561

$12.18

14

Step Ring

420227717

$12.12

15

Index Lever

420248526

$20.99

16

Washer

420827300

$5.24

17

Allen Screw M6 X 55

420240332

$5.35

18

Parking Lock Lever Ass'y

420258622

$71.99

19

Plain Washer

420227937

$13.24

20

Torx Flange Screw M8 X 35

420641188

$7.41

21

Needle Bearing

420632070

$25.99

22

Pinion Gear, 46 Teeth

420435730

$109.99

23

Retaining Ring

420845772

$6.38

24

Pinion Gear, 35 Teeth

420434547

$104.99

25

Thrust Washer

420427011

$5.79

26

Pigion Gear, 31 Teeth

420434532

$67.99

27

Needle Bearing | See Item 21a

420232654

$20.99

28

Thrust Washer Set, CVT Side

420281302

$86.99

29

Needle Bushing

420832240

$20.99

30

Countershaft, 14 Teeth

420620674

$147.99

31

Needle Bearing

420632070

$25.99

32

Pinion Gear, 28 Teeth

420934102

$77.99

33

Retaining Ring

420845772

$6.38

34

Shift Gear, 20 Teeth

420435740

$70.99

35

Fork Spindle

420258389

$24.99

36

Shifting Fork

420657311

$89.99

37

Shifting Fork

420657321

$88.99

38>39

Shift Drum Ass'y

420657338

$119.99

39

Contact Washer

420257592

$9.69

40>42

Shift Shaft Ass'y

420620923

$98.99

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Torx Flange Screw M6 X 35

420440274

$1.01

44

O-Ring

420631612

$4.33

45

Distance Ring

420647267

$42.49

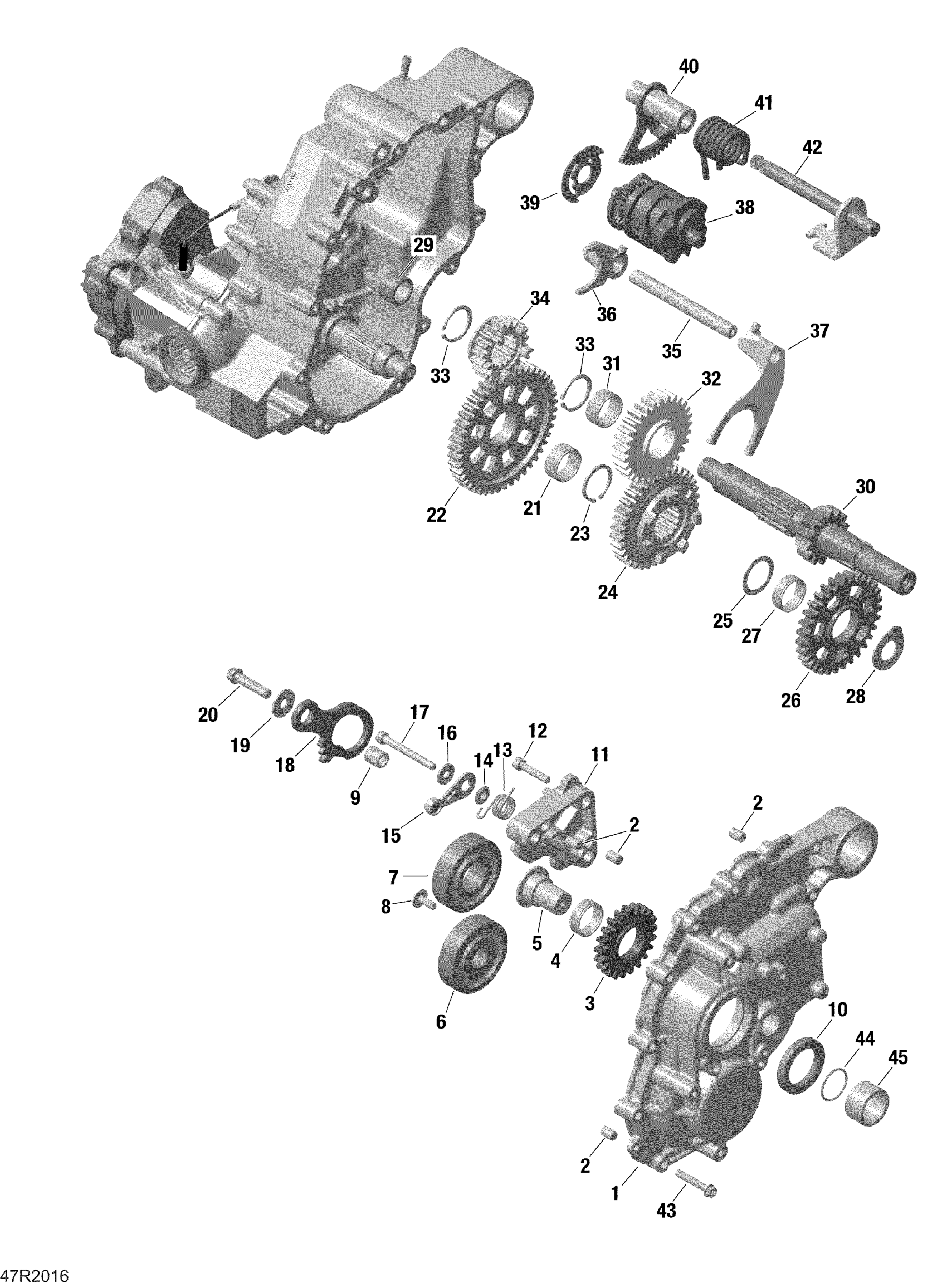

Can-Am Outlander 650 EFI - STD_DPS_XT_HUNTING - 2020 Gear Box 2 - 420686216 Diagram

LH Gear Housing Ass'y | Includes 1a to 10

Not Available As Spare Part - Friction Washer

Center Pin 8 X 12

Intermedite Gear, 21 Teeth

Needle Bearing | See Item 21a

Intermedite Gear Shaft

Ball Bearing

Ball Bearing

Torx Screw M6 X 16

Not Available As Spare Part - Friction Washer

Oil Seal

Support

Socket Head Screw M6 X 30

Index Spring

Step Ring

Index Lever

Washer

Allen Screw M6 X 55

Parking Lock Lever Ass'y

Plain Washer

Torx Flange Screw M8 X 35

Needle Bearing

Pinion Gear, 46 Teeth

Retaining Ring

Pinion Gear, 35 Teeth

Thrust Washer

Pigion Gear, 31 Teeth

Needle Bearing | See Item 21a

Thrust Washer Set, CVT Side

Needle Bushing

Countershaft, 14 Teeth

Needle Bearing

Pinion Gear, 28 Teeth

Retaining Ring

Shift Gear, 20 Teeth

Fork Spindle

Shifting Fork

Shifting Fork

Shift Drum Ass'y

Contact Washer

Shift Shaft Ass'y

Not Available As Spare Parts

Not Available As Spare Parts

Torx Flange Screw M6 X 35

O-Ring

Distance Ring
