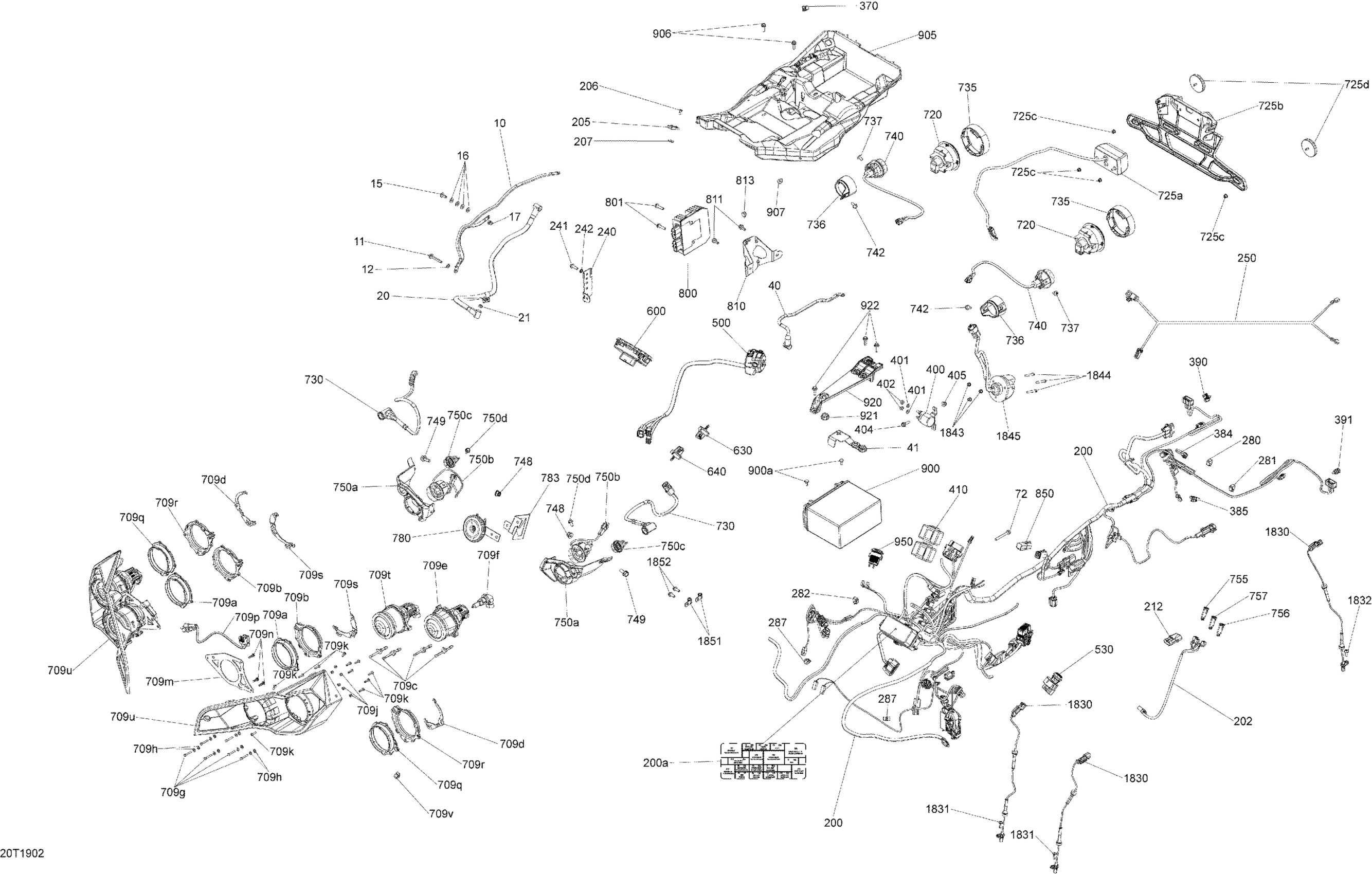

Can-Am Renegade 650 EFI - T3, 2019 Electrical - 650 EFI Diagram

#

Description
Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561414

$1.55

40

Positive Cable

710004376

$46.12

41

Battery Cable Cap

710006729

$7.37

50

Extension Cable 02 Sensor

710005819

$23.05

72

Hex. Flange Screw M6 X 16

210261640

$1.74

200

Harness | CARB Vehicle - Packages Hunting Edition & XT

710006013

$946.12

200

Harness

710006169

$969.20

202

Indicator Light Cable

710005840

$16.89

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

250

Brake Harness | Includes 1 to FRV2

710004324

$32.28

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

282

Clip

414227300

$1.45

287

Clip

414227300

$1.45

370

Tie-Rap Clip

710002896

$4.60

384

Tie-Rap Clip

710002896

$4.60

385

Tie-Rap Clip

710002896

$4.60

390

Tie-Rap Clip

710002896

$4.60

391

Tie-Rap Clip

710002896

$4.60

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561414

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

410

Flasher Unit

710003239

$78.43

500

LH Multi Fonction Control

710006211

$161.51

530

Ignition Switch

710008400

$78.43

600

Speedometer

710006216

$323.05

600a

Trim Ring Ass'y

710001183

$18.43

600b

BRP Logo, 13 mm

704901217

Unavailable

600c

Button

715900265

$12.68

630

Grey, Electronic Key

710002183

$55.35

640

Black, Electronic Key

710000817

$55.35

709a

LH Low Front Housing

710001083

$16.89

709a

RH Low Front Housing

710001081

$16.89

709b

LH Low Rear Housing

710001084

$10.98

709b

RH Low Rear Housing

710001082

$10.98

709c

Setting Screw

710001147

$12.91

709e

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$143.05

709f

Halogen Bulb

415129249

$39.97

709g

Hex. Screw M4 X 25

207142544

$1.63

709h

Flat Washer M5

234051410

$0.44

709j

Elastic Stop Nut M4

232541414

$0.48

709k

Phillips Screw K40 X 16

250000723

$0.81

709m

Painted Headlamp Support

705004309

$15.35

709n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

709p

Light Harness

710005944

$32.28

709q

LH High Front Housing

710001087

$16.89

709q

RH High Front Housing

710001085

$16.89

709r

LH High Rear Housing

710001088

$10.98

709r

RH High Rear Housing

710001086

$10.98

709s

LH High Light Support

710005853

$5.52

709s

RH High Light Support

710005856

$5.52

709t

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

709t1

Halogen Bulb

415129249

$39.97

709u

LH Front Facia

705004508

$47.66

709u

RH Front Facia

705004509

$47.66

709v

Clip

414227300

$1.45

720

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

720a

Bulb

520000758

$7.49

725a

License Plate Light | Europe

710005563

$124.58

725b

Plate Support | Europe

708300553

$22.28

725c

Red Reflector

705011221

$12.32

730

Position Light Harness

710005676

$13.52

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

747

Clip

414479100

$1.86

748

Hex. Flange Elastic Nut M8

233281414

$1.14

749

Hex. Flange Screw M8 X 20

207682044

$0.92

750a

RH Flasher Support

710005900

$6.92

750a

LH Flasher Support

710005899

$6.92

750b

Flasher | Europe

710002964

$35.14

750c

Day Light | Europe

710001726

$36.89

750d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

752

Washer

503175800

$3.26

753

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

783

Horn Support

710006112

$6.75

800

Voltage Regulator

710005842

$159.87

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

810

Rectifier Support

710002587

$13.49

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

813

Rubber Bumper

293830005

$5.33

850

Connector Plug

710004904

$8.55

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710006981

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1832

Torx Truss Screw M6 X 16

250000721

$1.39

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$212.28

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
