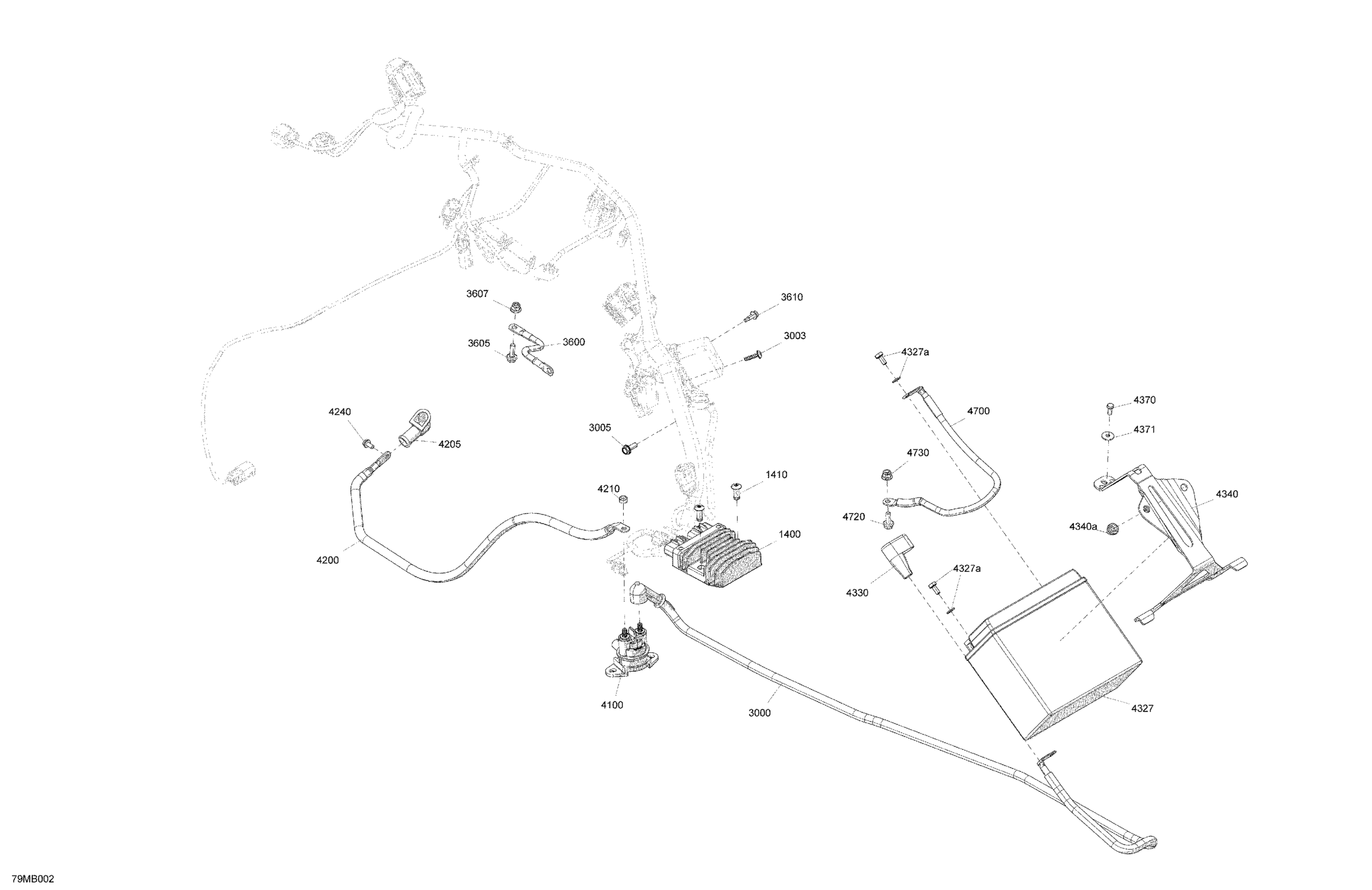

Ski-Doo 001 - RENEGADE 600 EFI - SPORT - North America, 2022 08- Electric - Lower Section Diagram

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Monobolt Rivet 6.4

293150182

$3.09

Chassis Wiring Harness

515178959

$329.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Hex. Flange Screw M6 X 16

250001062

$1.57

Ground Wire

515178248

$24.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay

278003012

$42.49

Positive Cable

515178919

$29.99

Protector Cap

710000495

$10.99

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Screw M5 X 10

207551044

$4.12

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11
