Description

Price

10

Chaincase Ass'y

504153718

$339.99

10a

Kit Plate Ass'y

861805514

$78.99

10b

Flange Elastic Nut M6

233261434

$4.44

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350153

$12.65

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket 23 Teeth

504153911

$44.99

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket 45 Teeth

504153995

$149.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160b

Cap

504154043

$2.11

1500

Drive Chain, 108 Links

504152631

$153.49

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1550

O-Ring

293300202

$1.01

1600

Chain Tensioner

504154577

$17.49

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154066

$189.99

1700d

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$55.99

1710

O Ring

293300214

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740d

Protector Tube | Not shown

503195447

$13.49

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500b

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154428

$412.99

3000b

Not Available As Spare Parts

XXX

Unavailable

3000c

Not Available As Spare Parts

XXX

Unavailable

3000d

Retaining Ring

504153886

$21.99

3000f

Ball Bearing

293350059

$30.99

3200

Track Ass'y 15" X 137" X 1.2C" | Includes 3200 to 3200b

504152838

$909.99

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

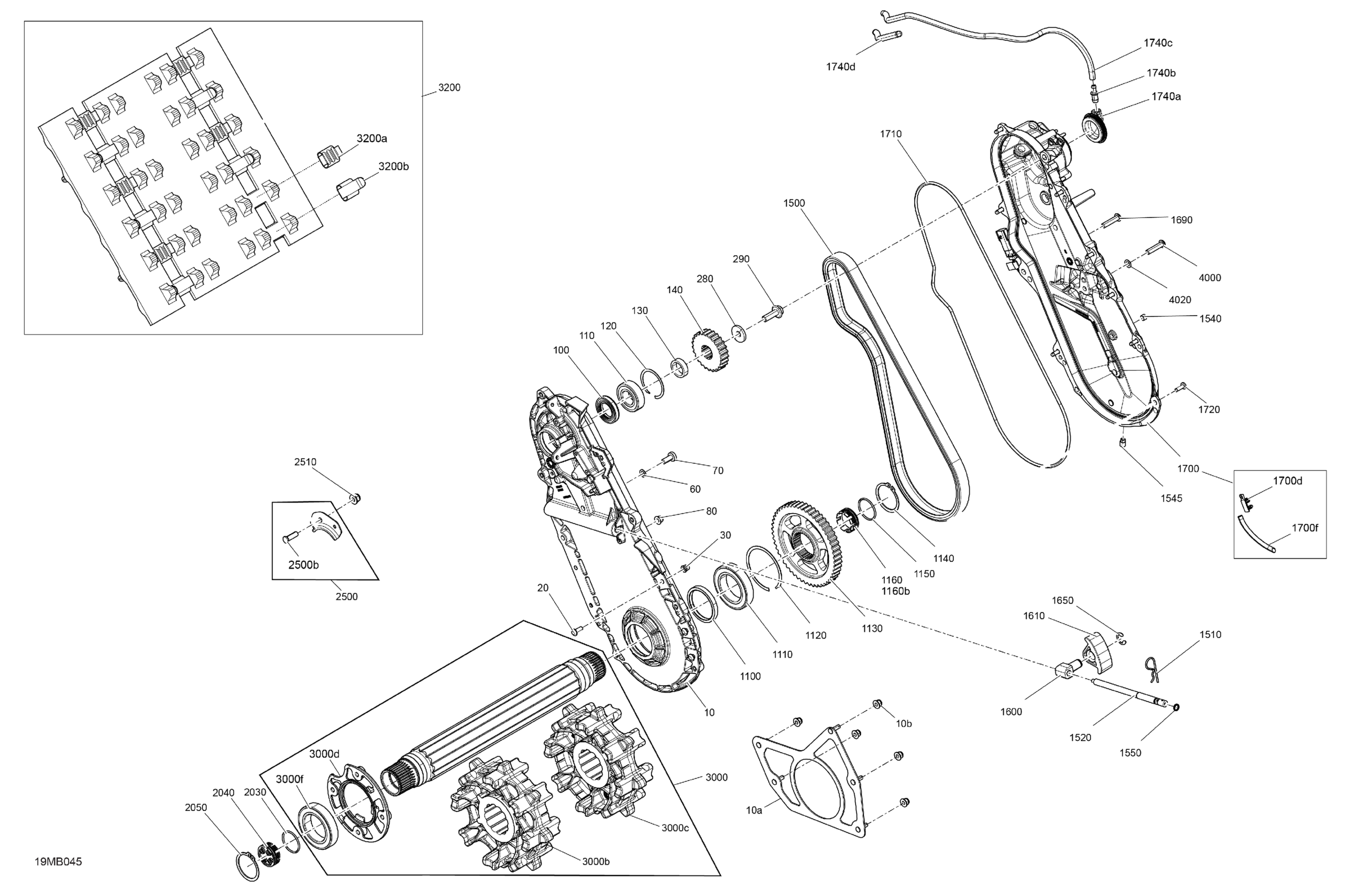

Ski-Doo RENEGADE 600 EFI - SPORT - 2022 Drive - System Diagram

Chaincase Ass'y

Kit Plate Ass'y

Flange Elastic Nut M6

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Washer

Torx Screw M8 X 20, Scotch Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket 23 Teeth

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Ball Bearing

Circlip

Sprocket 45 Teeth

Circlip

O-Ring

Magnetic Cap | Includes 150c to 150c2

Cap

Drive Chain, 108 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Hex. Countersunk Drain Plug

O-Ring

Chain Tensioner

Slider Chain

Circlip

Hex. Button Head Screw M8 X 1.25 X 35

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

Clip Connector

Braided Sleeve

O Ring

Hex. Flange Screw M6X20

Cap

Male Connector

Polyurethane Hose 10000Mm Long

Protector Tube | Not shown

O-Ring

Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500b

Clinch Stud, M8 X 25

Hex. Flange Elastic Nut M8

Drive Axle Ass'y | Includes 3000 to 3000f

Not Available As Spare Parts

Not Available As Spare Parts

Retaining Ring

Ball Bearing

Track Ass'y 15" X 137" X 1.2C" | Includes 3200 to 3200b

Track Guide | Track Width 16''

Cleat

Hex. Button Head Screw M8 X 1.25 X 35

Washer
