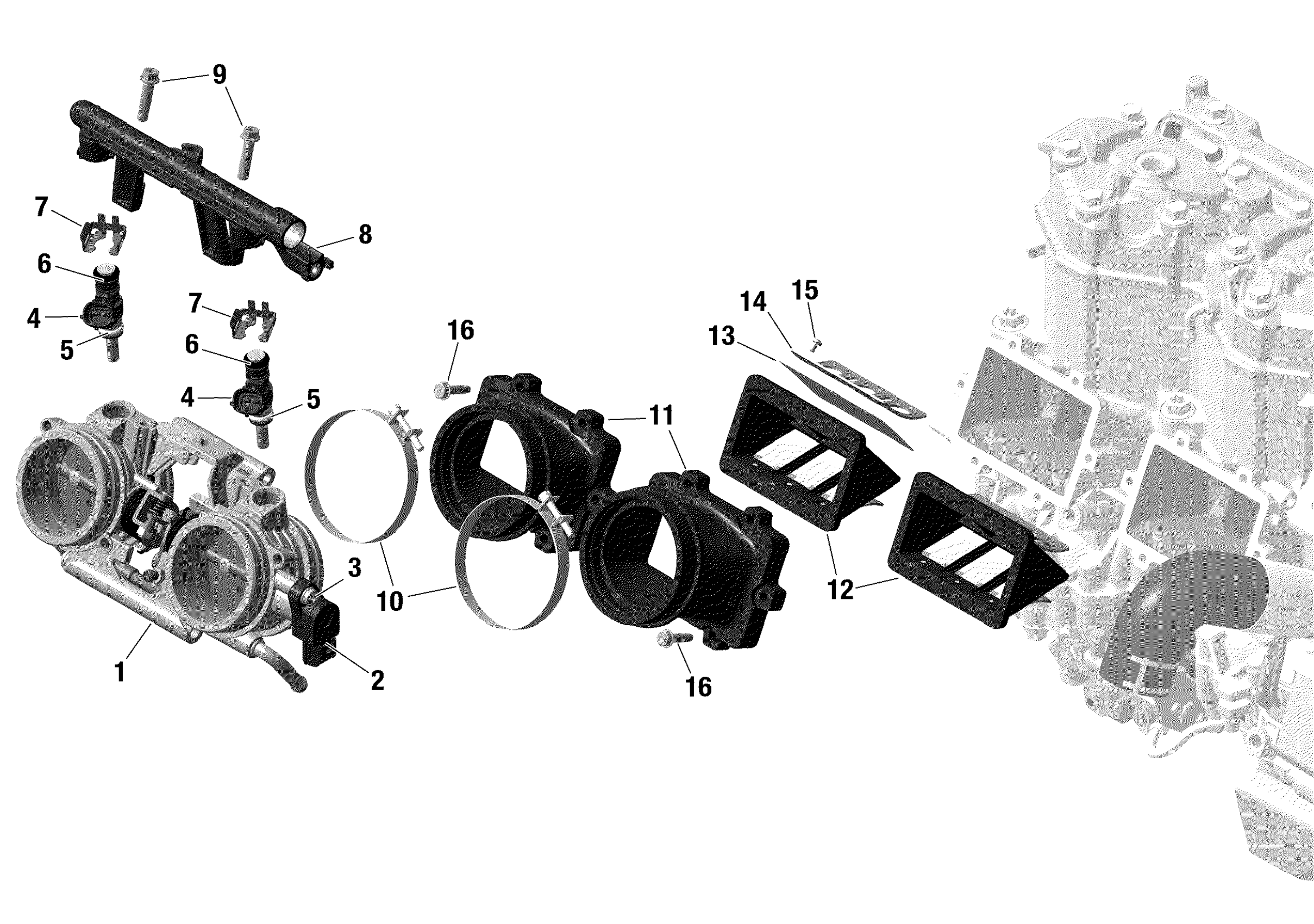

Ski-Doo 001 - RENEGADE 600 EFI - SPORT - North America, 2022 01- Rotax - EFI Diagram

Throttle Body Ass'y | Includes 1 TO 3

420893806

$1.00

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$70.99

Not Available As Spare Part - Friction Washer

Unavailable

Injection Valve | Includes no. 10-12

420874858

$164.49

O-Ring

420831050

$20.49

O-Ring

420430775

$4.29

Clip

420853031

$3.29

Fuel Rail

420874154

$26.99

Torx Flange Screw M6 X 25

420440234

$3.06

Clamp

420251208

$15.27

Intake Socket

420867392

$111.49

Reed Valve Ass'y

420924519

$54.99

Reed Pedal

420924532

$42.49

Reed Pedal Stop

420924539

$13.16

Phillips Screw M3 X 5

420941215

$1.69

Tapping Screw M5 X 20

420841556

$1.69
