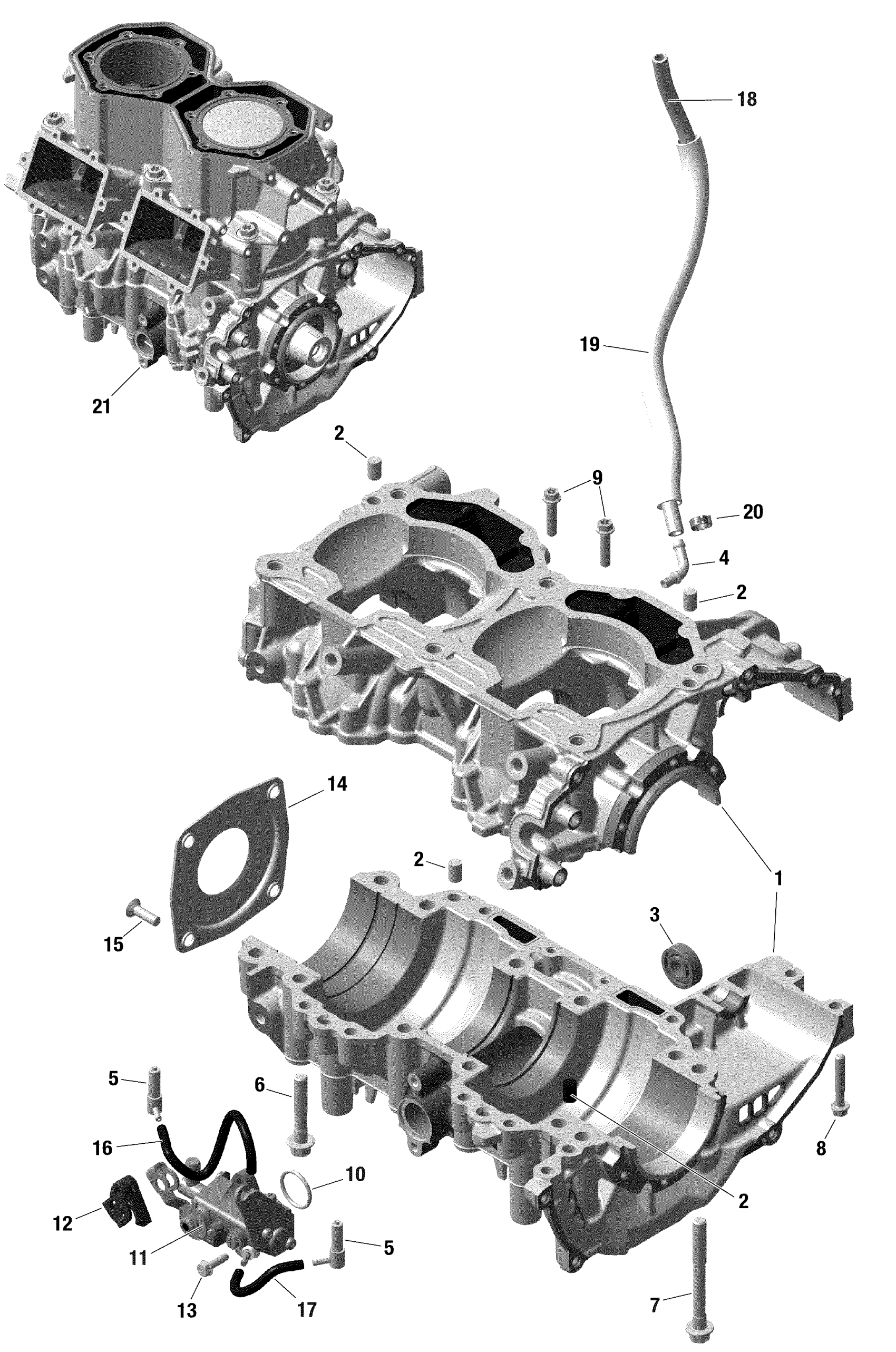

Ski-Doo RENEGADE 600 EFI - SPORT - 2022 Rotax - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420686664

$1.00

2

Center Pin 8 X 12

420632010

$4.01

3

Ball Bearing

420232100

$20.99

4

Impulse Fitting

420924529

$8.57

5

Check Valve

420956511

$35.99

6

Collar Hex Screw M8 X 45

420640433

$2.00

7

Collar Hex Screw M8 X 75

420640833

$2.00

8

Torx Flange Screw M6 X 35

420440274

$1.01

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

O-Ring

420430373

$3.17

11

Oil Pump Ass'y | Includes no. 11-12

420888781

$409.99

12

Lever

420260171

$0.95

13

Taptite Screw M5 X 16

420941926

$0.47

14

Oil Seal Cover

420812422

$14.83

15

Screw M6 X 20

420941436

$3.17

16

Oil Line 150MM

420960043

$3.17

17

Oil Hose 1500Mm Long

219704404

$17.26

18

Oil Line 310MM

420201551

$7.51

19

Protector Tube

420460047

$14.22

20

Clamp

420853653

$7.41

21

Short Block Ass'y

420059831

$2.00
