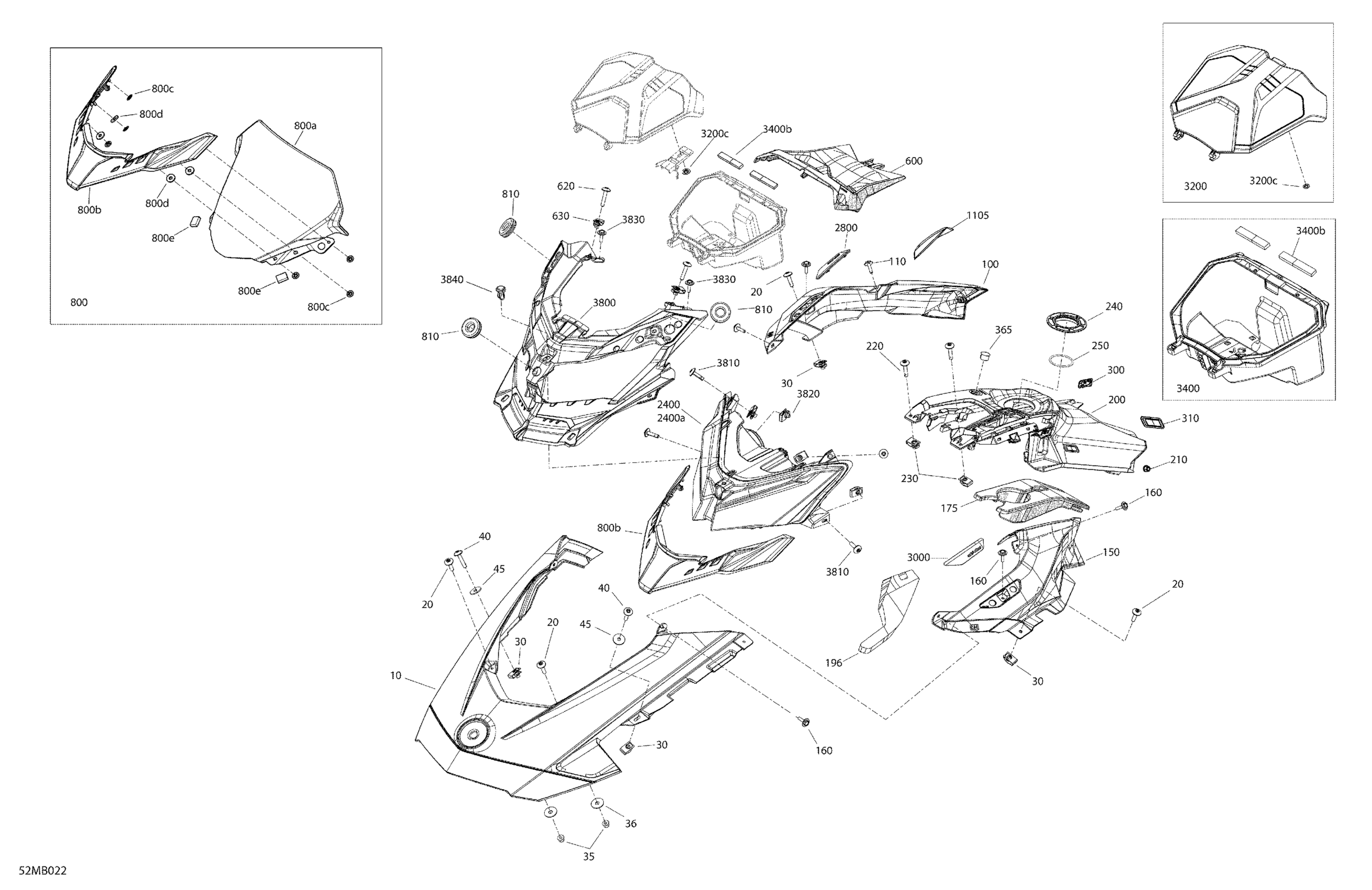

Ski-Doo RENEGADE 600 EFI - SPORT - 2022 Body - Hood Diagram

#

Description
Price

10

Sunburst Yellow, Front Hood

517305983

$203.82

20

Torx Screw M5 X 20

250000528

$1.74

30

Panel Nut M5 X 0.8

250000958

$3.48

35

Hex. Flange Nut M5

233151414

$0.46

36

Flat Washer

250200040

$1.82

40

Torx Screw M5 X 26

250000587

$3.61

45

Washer

250200166

$1.74

100

Sunburst Yellow, RH Hood

517306733

$192.28

110

Screw M4 X 16

250000725

$2.87

150

Sunburst Yellow, LH Hood

517306723

$192.28

160

Screw M4 X 16

250000725

$2.87

175

Console Pad

517307744

$15.35

196

LH Hood Foam

517306002

$11.54

200

Rear Console

517307686

$196.12

210

Flange Elastic Nut M5

233251434

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Console Nut

517306602

$11.22

250

O-Ring

706002839

$0.98

300

RH Cap

517306587

$1.31

310

LH Cap

517306588

$1.31

365

Cap

572051500

$5.38

600

Gauge Support

517308510

$35.35

620

Torx Truss M5 X 20

250000586

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

800

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$153.05

800a

Windshield 360

517306423

$164.58

800b

Deep Black, Windshield Support

517305749

$31.51

800c

Push Nut

732610072

$1.72

800d

Rubber Washer 5 mm

250200024

$1.77

800e

Gasket, Neoprene 2000Mm Long

219704476

$12.64

810

Grommet

517303756

$3.15

1105

Heat Shield

517307667

$2.05

2400

Headlamp | Includes 2400 to 2400a

517305752

$425.35

2400a

Bulb

415130081

$39.97

2800

RH Hood Plate

517306049

$11.54

3000

LH Hood Plate

517306050

$11.54

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$20.74

3200c

Push Nut

732610072

$1.72

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$18.43

3400b

Seal Joint

517305157

$2.28

3800

Deep Black, Headlamp Fairing

517305746

$64.58

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3830

Screw M4 X 16

250000725

$2.87

3840

Tuflok Plastic Rivet

293150230

$1.21
