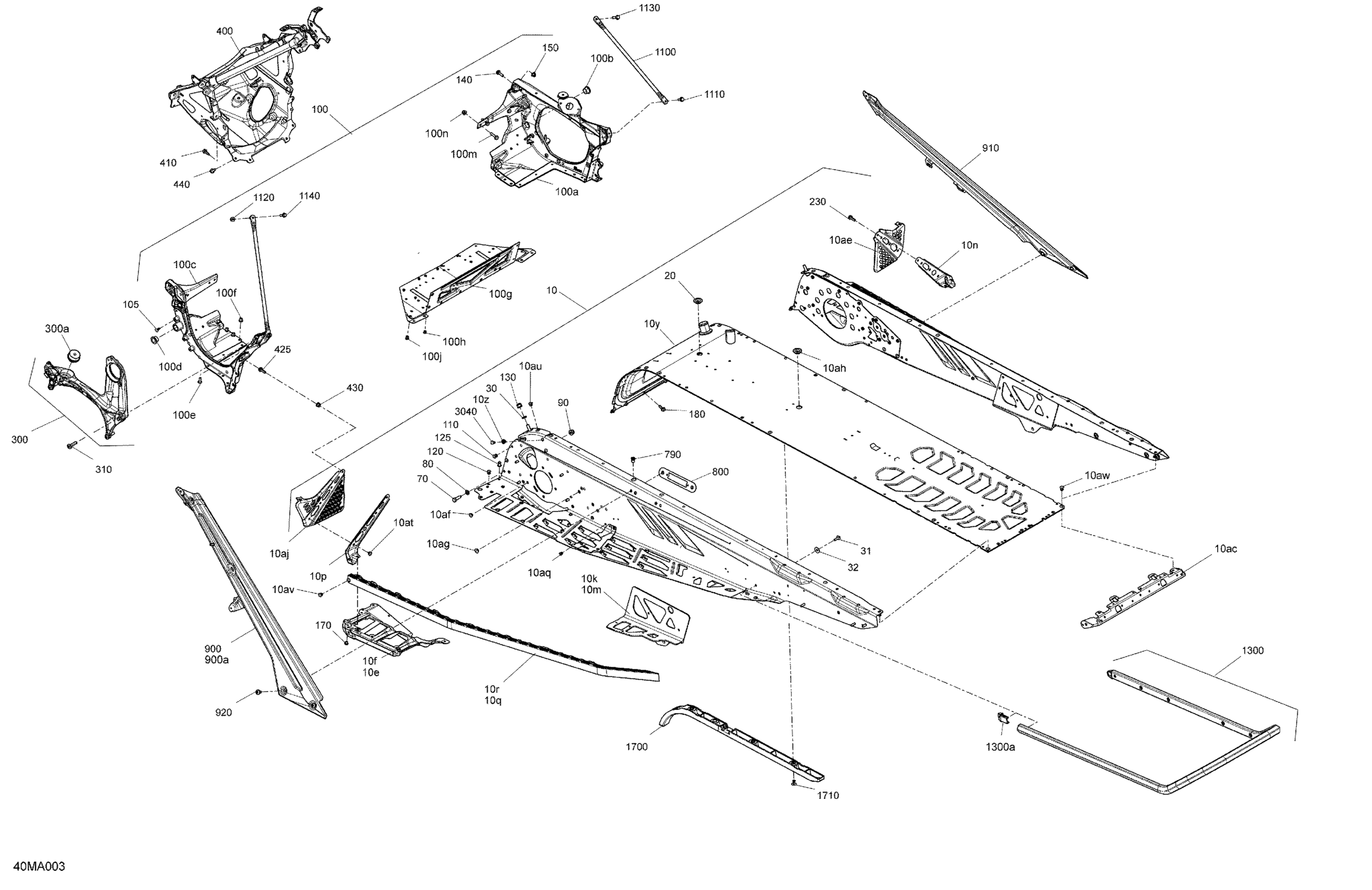

Ski-Doo RENEGADE 600 EFI - SPORT - 2021 Frame - System - Sport Diagram

#

Description
Price

10

Chassis Tunnel Module 137" | Includes 10 to 10aw

415130412

$3.00

10e

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10f

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10k

RH Rear Suspension Support This part replaces 518330095.

518334405

$94.99

10m

LH Rear Suspension Support This part replaces 518330094.

518334404

$104.99

10n

Stirrup Reinforcement

518331253

$21.99

10p

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10q

RH Roller

518328451

$194.99

10r

LH Roller

518328452

$194.99

10y

Radiator Tunnel 137 Ass'y

518334488

$720.49

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap

518328990

$22.49

10ae

RH Footrest

518328460

$44.99

10af

Full Moon Dart 8 mm

293730041

$2.21

10ag

Full Moon Dart 10 mm

293730059

$4.55

10ah

Black, Plug

293730052

$9.19

10aj

LH Footrest

518333007

$40.99

10aq

Rivet Avibulb 3/16

293150203

$2.09

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100j

518332685

$569.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100b

Leg Bushing

505072690

$12.49

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Bushing

505072690

$12.49

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518332716

$36.99

100h

Rivet Avibulb 3/16

293150203

$2.09

100j

Insert M5 X 0.8

293450268

$2.09

100m

Hex. Flange Screw M6 X 25

250000945

$4.44

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

105

Dart

293730079

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hemlock Rivet 6.5 mm

293150120

$7.41

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

440

Ornit Rivet 6,5 X 14.5

293150266

$2.40

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Black, RH Member Ass'y | Black

518330880

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

1300a

Cap

520001612

$10.99

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
