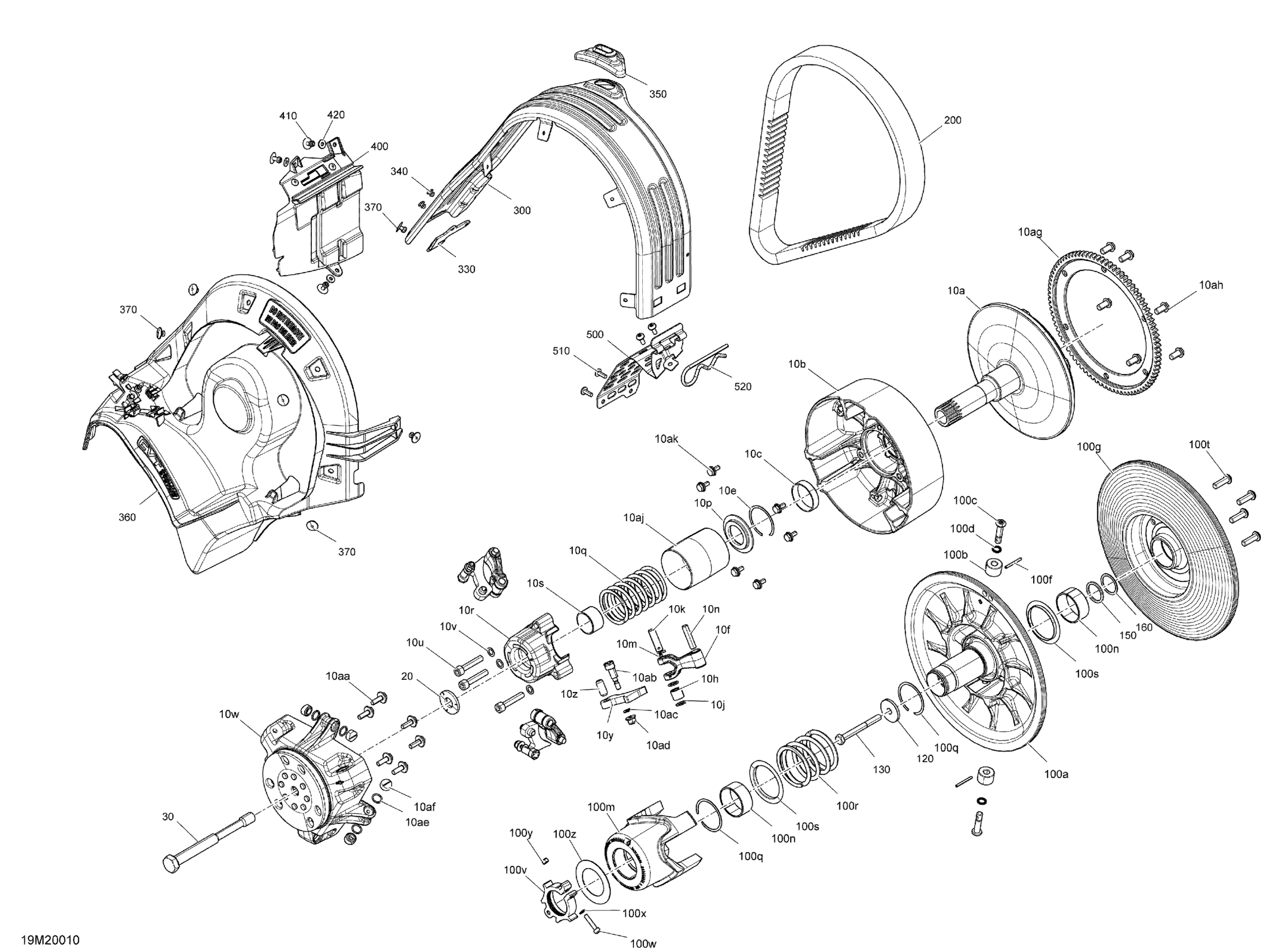

Ski-Doo RENEGADE 600 CARB - 2020 Pulley - System Diagram

#

Description
Price

10a

Fixed Flange Ass'y

417222937

$226.12

10b

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

10c

Bushing

417222758

$20.74

10e

Circlip

293370037

$3.02

10f

Lever | Includes 10f to 10g

417222671

$32.28

10h

Roller

417222947

$19.97

10j

Stopper Washer

417004302

$15.99

10k

Pin

417004308

$13.18

10m

Cotter Pin

250400060

$1.60

10n

Lever Axle

417223164

$4.25

10p

Spring Seat

417222312

$8.28

10q

Spring (Blue/Violet)

414817800

$14.75

10r

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

10s

Bushing

417009204

$16.12

10u

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

10v

Lock Washer 8 mm

250200009

$2.06

10w

Governor Cup Ass'y

417223669

$456.89

10y

Ramp 412

417222515

$32.28

10z

Spring Pin M10 X 22

250400050

$2.38

10aa

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

10ab

Calibration Screw

417223501

$27.66

10ac

Washer

417005600

$3.86

10ad

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10ae

O-Ring

732401030

$0.95

10af

Slider Shoe

417222992

$4.59

10ag

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

10ah

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

10aj

Guard

417009205

$16.89

10ak

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

20

Conical Spring Washer M14

250200144

$3.63

30

Drive Pulley Bolt

417120000

$63.82

100a

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$336.89

100b

Pulley Roller

417127016

$23.05

100c

Pivot Stud

417127294

$13.58

100d

Lock Washer 8 mm

250200009

$2.06

100f

Spring Pin M3 X 30

250400063

$1.74

100g

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

100m

Cam Ass'y | Includes 100m to 100q

417127372

$164.99

100n

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100q

Circlip

293370049

$4.71

100r

Black, Return Spring

417127039

$45.35

100s

Swivel Abutment

417127116

$8.06

100t

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

100v

Calibration Ass'y

415129604

$22.49

100w

Socket Screw M5 X 25

250000981

$1.34

100x

Flat Washer M5

234051410

$0.44

100y

Elastic Stop Nut M5

232551414

$0.72

100z

Washer

417127155

$8.03

120

Strength Washer

517302322

$11.09

130

Hex. Cap Screw M8 X 75

207287544

$4.24

160

Spacer

417300265

$2.12

200

Drive Belt

417300586

$154.58

300

Belt Guard

417300357

$86.12

330

Front Bracket

417300423

$5.17

340

Avex Rivet

390909200

$0.29

350

Guide

417300381

$9.23

360

CVT Air Duct

417300439

$27.66

370

Pop Rivet 3/16"

293150103

$0.54

400

Front Support

417300422

$6.08

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

420

Flat Washer

517225900

$0.17

450

Reinforcement Plate

417300421

$4.14

460

Avex Rivet

390909100

$0.29

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

510

Torx Screw M5 X 14

250000742

$1.20

520

Hair Pin

114045200

$10.69
