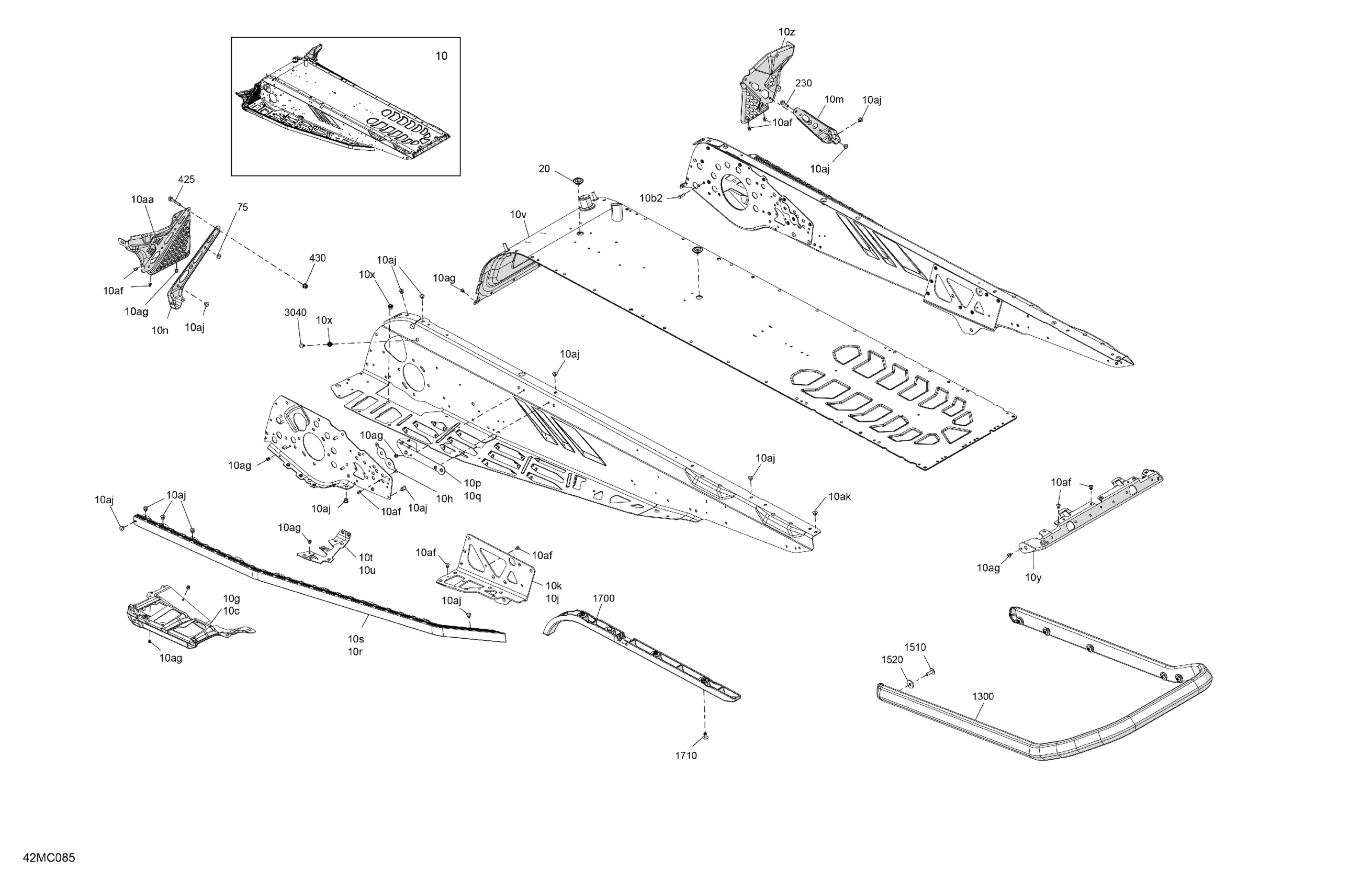

Ski-Doo RENEGADE 600 ACE - SPORT - Europe, 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Full Moon, Chassis Tunnel Module 137" | Includes 10 to 10ak

518334195

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.87

10c

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10g

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10h

Front Suspension Arm Reinforcement

518327233

$15.64

10j

RH Rear Suspension Support This part replaces 518330095.

518334405

$93.25

10k

LH Rear Suspension Support This part replaces 518330094.

518334404

$93.25

10m

Stirrup Reinforcement

518334507

$17.88

10n

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10p

LH Under Chassis Reinforcement

518331744

$15.64

10q

RH Under Chassis Reinforcement

518331745

$16.39

10r

RH Roller

518328451

$175.34

10s

LH Roller

518328452

$175.34

10t

LH Footrest Reinforcement

518332296

$17.88

10u

RH Footrest Reinforcement

518332297

$17.88

10v

Radiator Tunnel 137 Ass'y

518334488

$682.06

10x

Clinch Nut M6 Hexsert

605636003

$4.00

10y

Rear Cap

518328990

$20.12

10z

RH Footrest

518330691

$20.12

10aa

LH Foot Protector

518331559

$23.10

10af

Avex Rivet

390909100

$0.28

10ag

Avex Rivet

390909200

$0.28

10aj

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10ak

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

75

Rivet Ornit 6,5 X 12.5

293150265

$1.88

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$1.87
