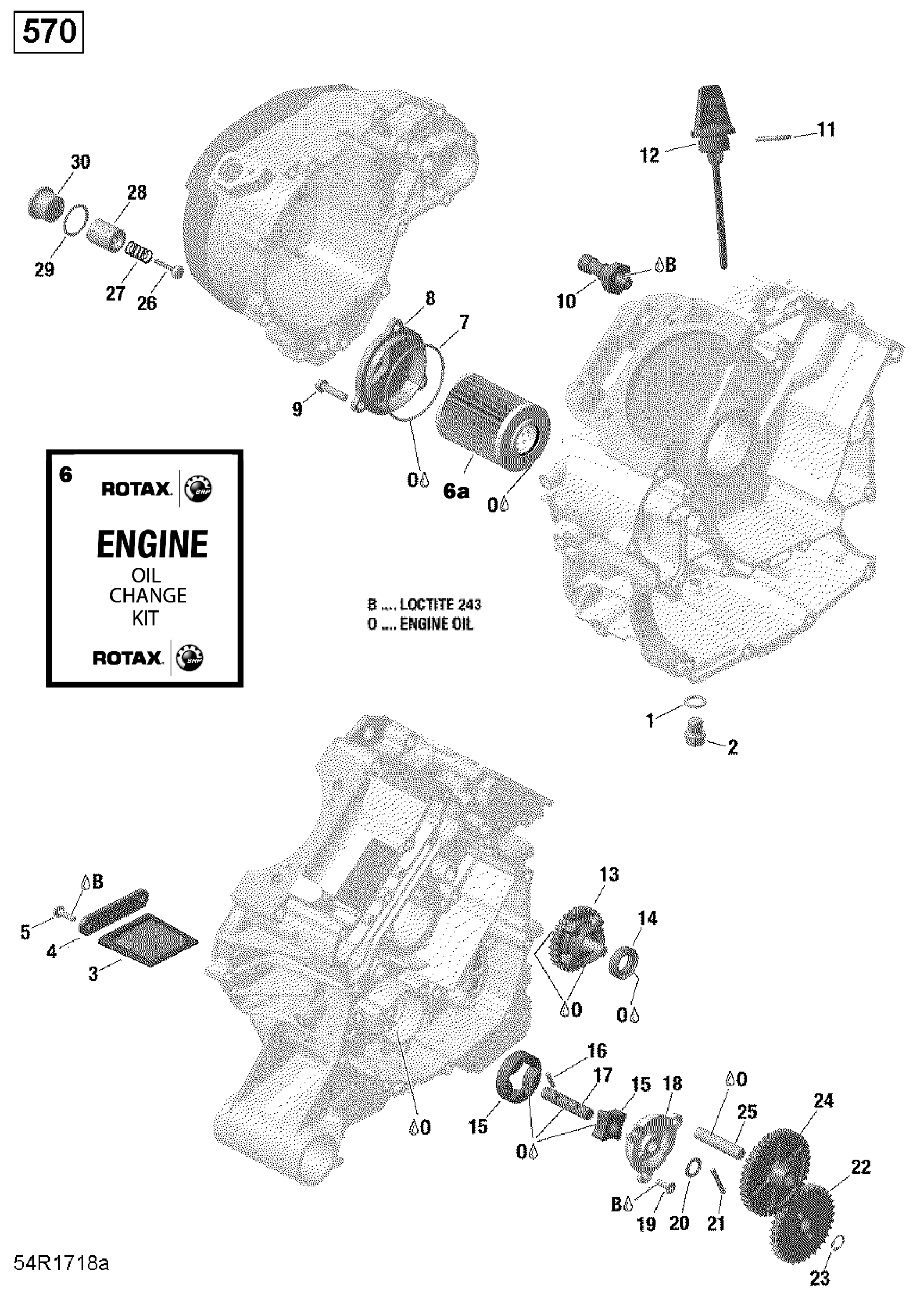

Can-Am Outlander 570 EFI - STD_DPS_XT_HUNTING - 2020 Engine Lubrication - 570 EFI Diagram

#

Description
Price

1

Copper Washer

420250640

$0.98

2

Magnetic Drain Plug M12

420241787

$17.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420210661

$14.28

5

Taptite Screw M5 X 16

420941928

Unavailable

6

4T 10W-50 Synthetic Oil Change Kit for Rotax 500 cc or more V-Twin engine

9779252

$70.99

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

6

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$72.99

6a

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420256915

$40.99

11

O-Ring

420631640

$2.11

12

Oil Dipstick

420256802

$17.05

13

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

14

Oil Seal

420430555

$19.99

15

Oil Pump Rotor

420256348

$77.99

16

Needle Pin

420232731

$4.01

17

Oil Pump Shaft

420237059

$29.49

18

Oil Pump Cover

420210646

$48.49

19

Torx Head Screw M5 X 16

420640823

$1.90

20

Thrust Washer

420827590

$4.01

21

Needle Pin

420232431

$4.39

22

Oil Pump Gear, 33 Teeth

420434320

$13.77

23

Circlip

504152282

$3.17

24

Idle Gear, 38 Teeth

420434300

$13.77

25

Location Pin 10 M6x50

420229302

$3.17

26

Pressure Relief Valve

420656370

$19.19

27

Spring

420939481

$4.99

28

Housing

420256487

$7.41

29

Gasket Ring

420650465

$13.16

30

Plug Screw

420640271

$13.77
