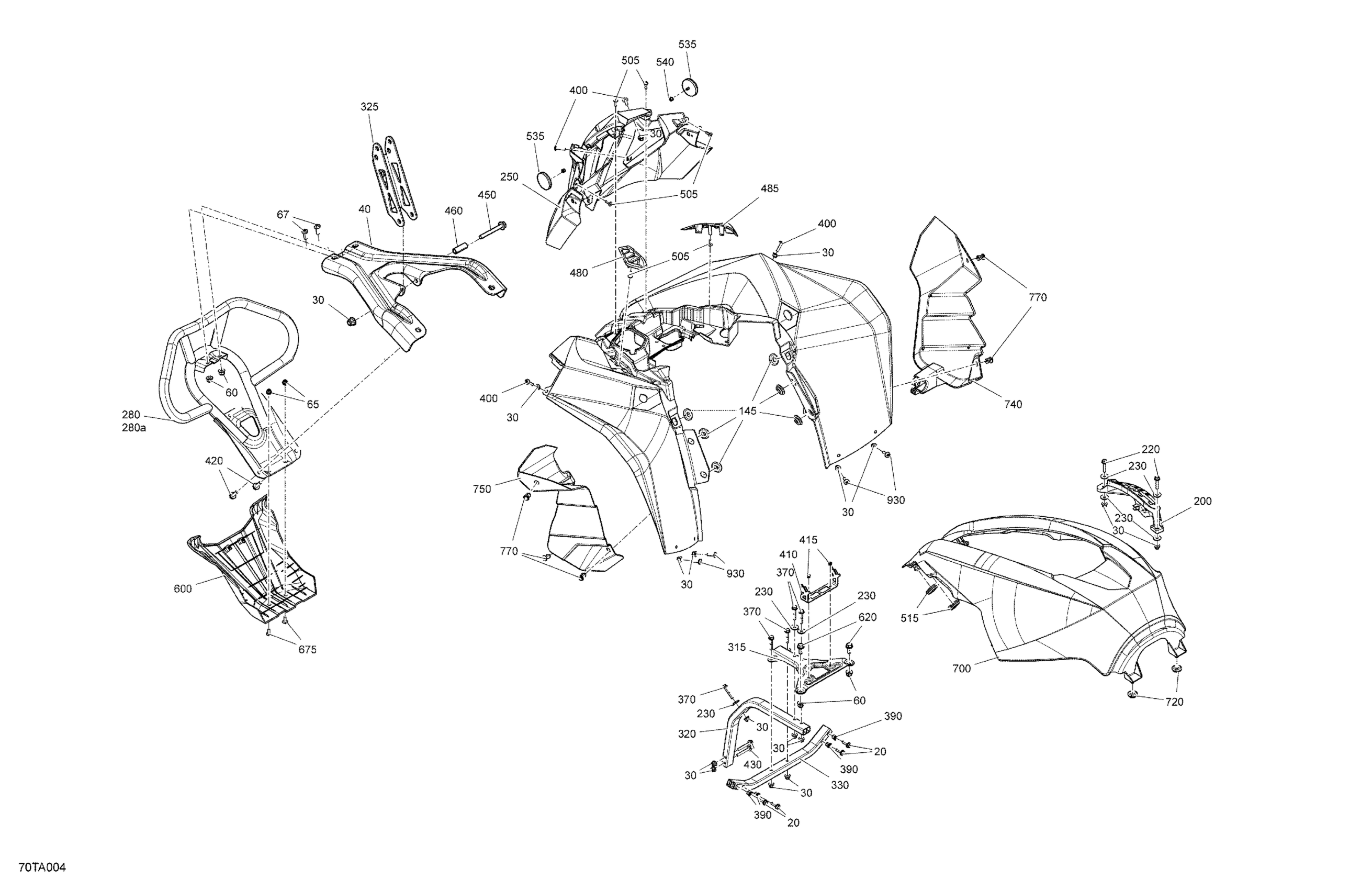

Can-Am Renegade 570 EFI - STD - 2021 Body - Front Section Diagram

Hex. Flange Screw M6 X 20

207662054

$0.96

Hex. Flange Screw M6 X 20

207662054

$0.96

Flange Elastic Nut M6

233261434

$4.15

Black, Bumper Support | Package XXC, Model Black

705015692

$35.04

Hex. Flange Elastic Nut M8

233281434

$2.00

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Torx Screw M8 X 20, Scotch Grip

250000740

$2.40

Oval Washer

705000321

$5.33

Lever Indicator

705003838

$25.34

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Flat Washer

224061201

$1.27

Front Facia

705003948

$49.97

Black, Front Bumper | Package XXC, Model Black

705015695

$259.67

Front Bumper

705011635

$260.42

Bracket

705003599

$21.61

Front Bent Sectional Tube

705016094

$91.76

Black, Support | Package XXC, Model Black

705015691

$27.58

Bent Sectional Tube

705016093

$91.76

Hex. Flange Screw M6 X 35

207663544

$0.85

Insert

293450275

$11.36

Torx Screw M6 X 25

250000758

$2.00

Fuse Holder

710002482

$6.69

Pop Rivet 3/16"

390402400

$0.28

Hex. Flange Screw M8 X 25

207682534

$1.03

Hex. Flange Screw M6 X 45

207664544

$1.22

Hex. Flange Screw M6 X 50

207665044

$3.88

Spacer

705005809

$11.31

LH Grille

705008137

$18.63

RH Grille

705008138

$18.63

Torx Screw K50 X 16

250000720

$1.60

Oblong Grommet

705003668

$5.21

Amber Reflector | Except Europe Model

705011222

$11.96

Flange Elastic Nut M5

233251434

$1.91

Front Bumper Plate

705004850

$17.13

Hex. Flange Screw M8 X 20

207682044

$1.06

Torx Screw M6 X 16

250000755

$0.82

Central Panel Kit

715007455

$344.75

Grommet

705003264

$3.94

RH Front Wheel Arch Protector

705017922

$23.85

LH Front Wheel Arch Protector

705017926

$23.85

Tuflok Plastic Rivet

293150230

$1.39

Torx Screw M6 X 20

250000712

$2.00
