03- Mechanic - Steering

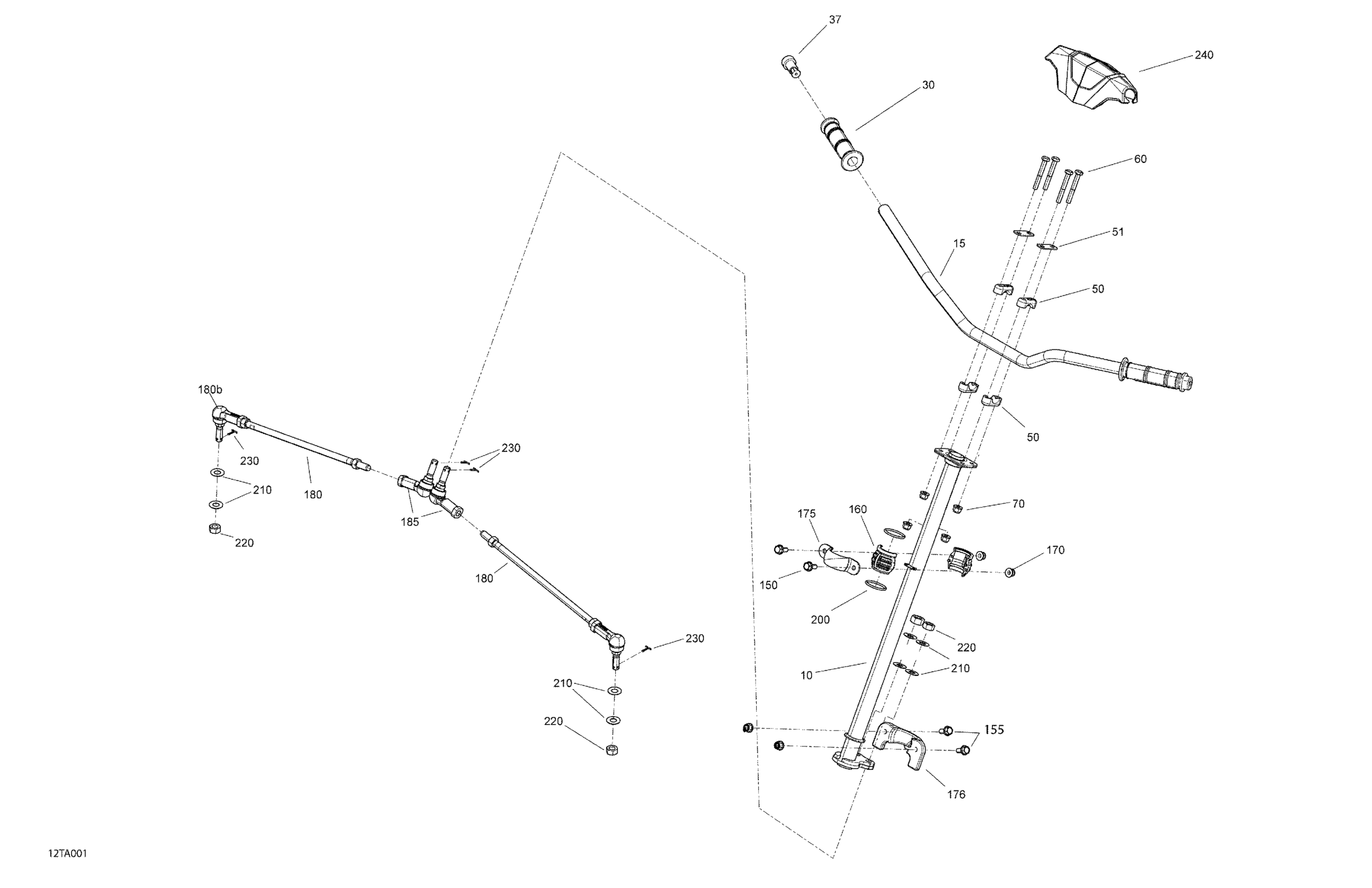

Can-Am 001 - Renegade 570 EFI - STD - North America, 2021 03- Mechanic - Steering Diagram
#
Description
Price
10
Main Tube
709401008
Unavailable
15
Black, Handle Bar
709401240
Unavailable
30
Handle Grip
709400493
Unavailable
37
End Piece
709400449
Unavailable
50
Steering Support
709401799
Unavailable
51
Stiffner
709400509
Unavailable
60
Hex. Screw M8 X 60
207086046
Unavailable
70
Hex. Elastic Flange Nut M8
233281416
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
155
Hex. Flange Screw M8 X 25
207682534
Unavailable
160
Spherical Half Bushing
709400783
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
175
Upper Column Attachment
709400827
Unavailable
176
Column Attachment
709401428
Unavailable
180
Tie-Rod Ass`y | Includes 180 to 180b
703501039
Unavailable
180b
RH Ball Joint
709402302
Unavailable
185
RH Ball Joint
709402302
Unavailable
200
O-Ring
293300068
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Nut M12
250100099
Unavailable
230
Cotter Pin
211400013
Unavailable
240
Cover
709400939
Unavailable
