10- Electrical System - Section 3

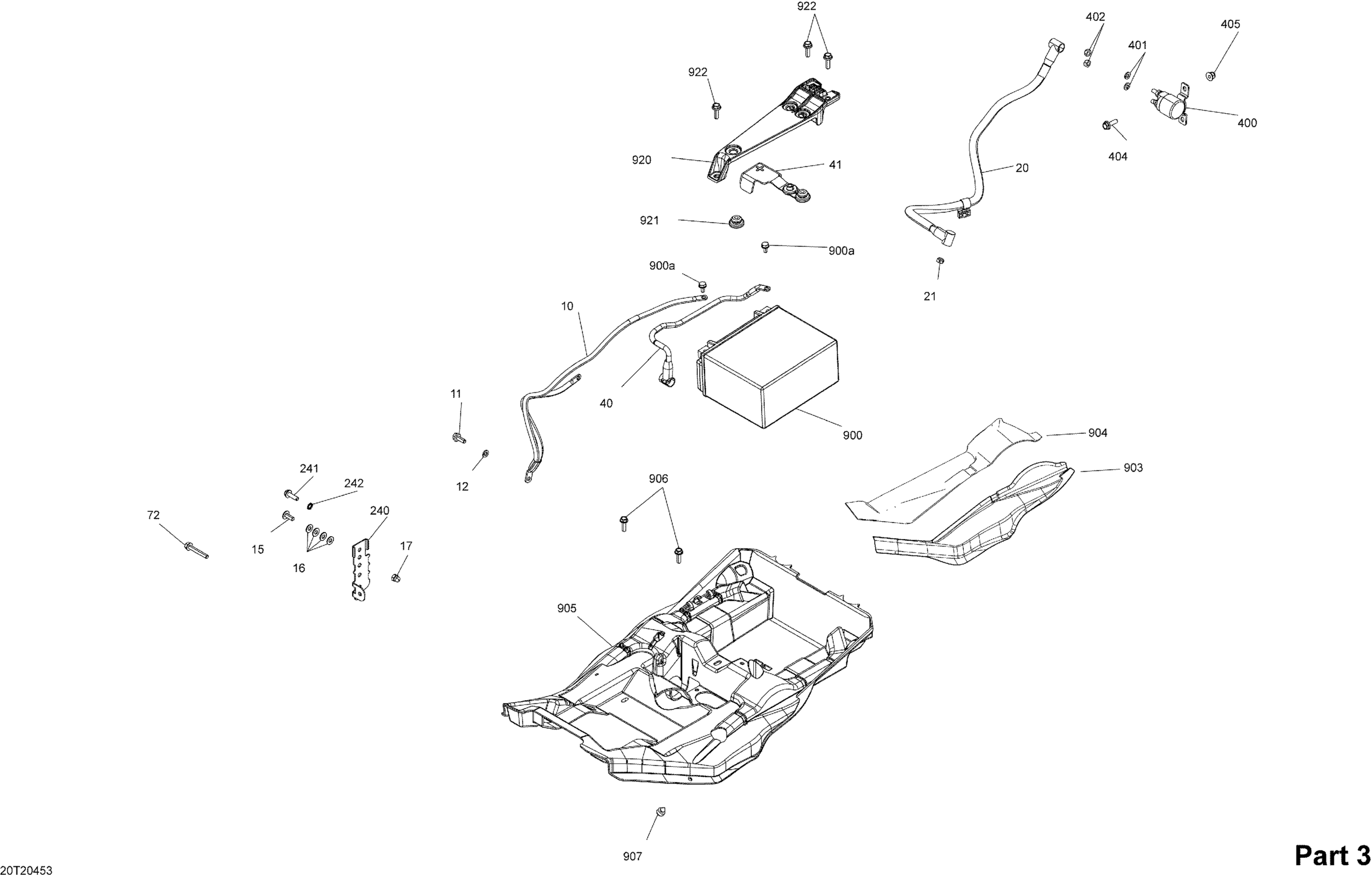

Can-Am 001 - Renegade 570 EFI - STD - North America, 2020 10- Electrical System - Section 3 Diagram
#
Description
Price
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561414
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
72
Hex. Flange Screw M6 X 16
210261640
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561414
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
903
Heat Shield
710006532
Unavailable
904
Heat Shield
710006533
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
