10- Electrical System - Main Section

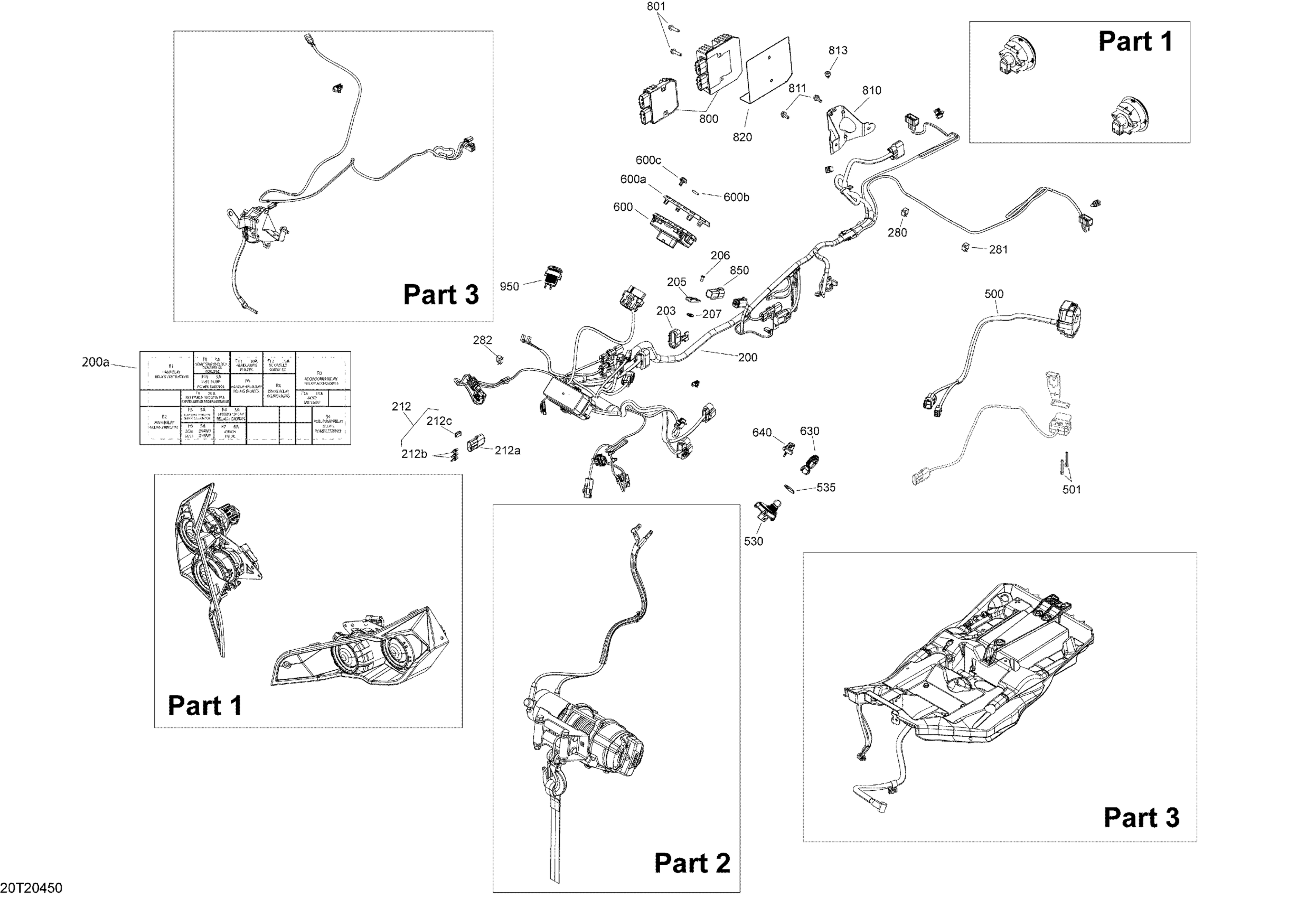

Can-Am 001 - Renegade 570 EFI - STD - North America, 2020 10- Electrical System - Main Section Diagram
#
200
Main Wiring Harness
710007175
Unavailable
200a
Logo Fuse Relay
710006657
Unavailable
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
282
Clip
414227300
Unavailable
500
Multi-Function Handle | Except Model Europe, Except T3
710005072
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
535
Safety Nut (DESS Switch)
278002963
Unavailable
600
Speedometer
710006216
Unavailable
600a
Trim Ring Ass'y
710001183
Unavailable
600b
BRP Logo13 mm
704904615
Unavailable
600c
Button
715900265
Unavailable
630
Green Key RFID | Except Model Europe, Except T3
710005232
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
800
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
801
Hex. Flange Forming Screw M6 X 25
210262550
Unavailable
810
Rectifier Support
710002587
Unavailable
811
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
813
Rubber Bumper
293830005
Unavailable
820
Deflector
710006746
Unavailable
850
Housing
710003006
Unavailable
950
DC Outlet
710001248
Unavailable
