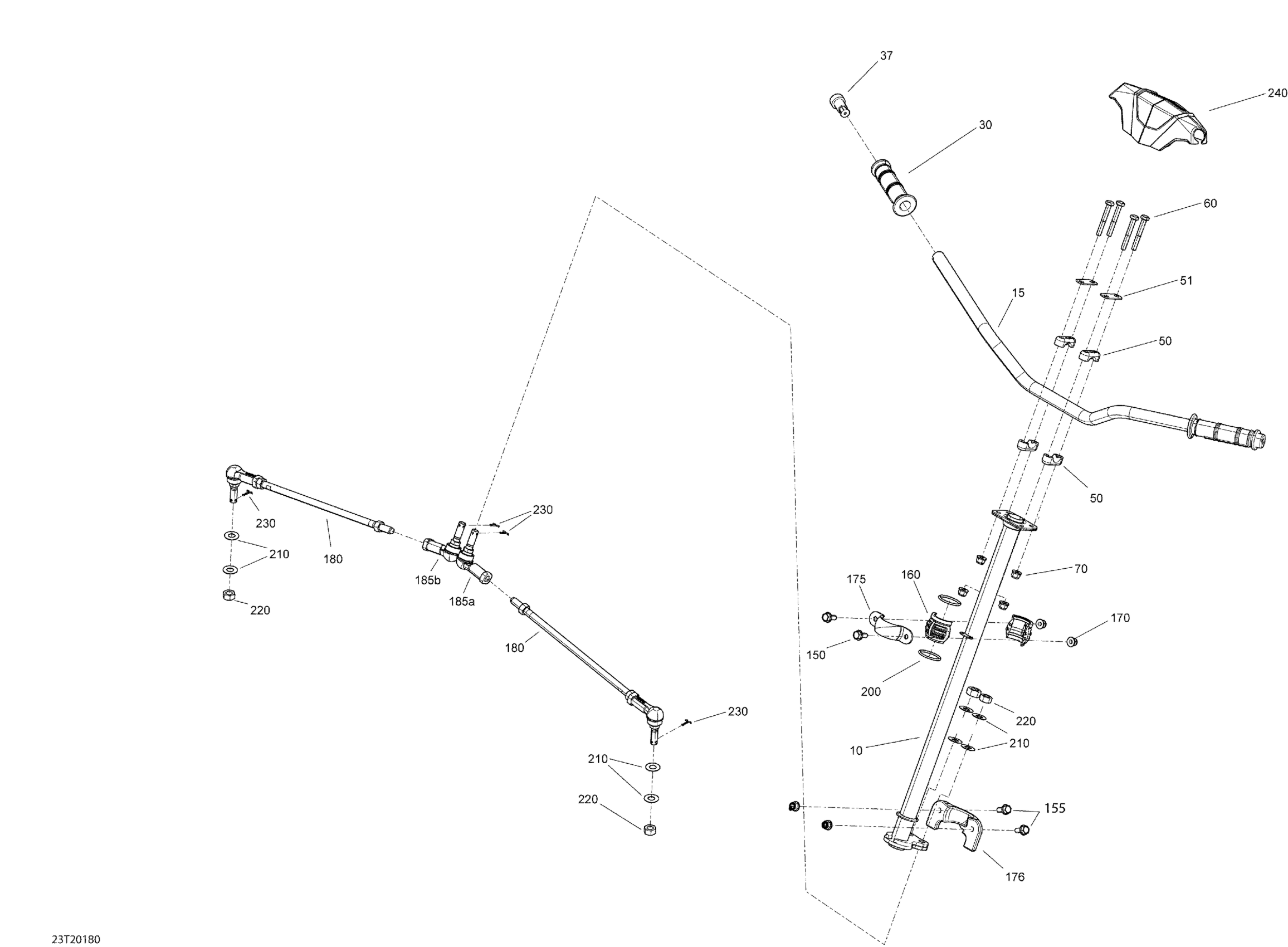

Can-Am Renegade 570 EFI - STD - 2020 Steering Diagram

#

Description
Price

10

Main Tube

709401008

$144.99

15

Black, Handle Bar

709401240

$69.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

240

Cover

709400939

$24.99
