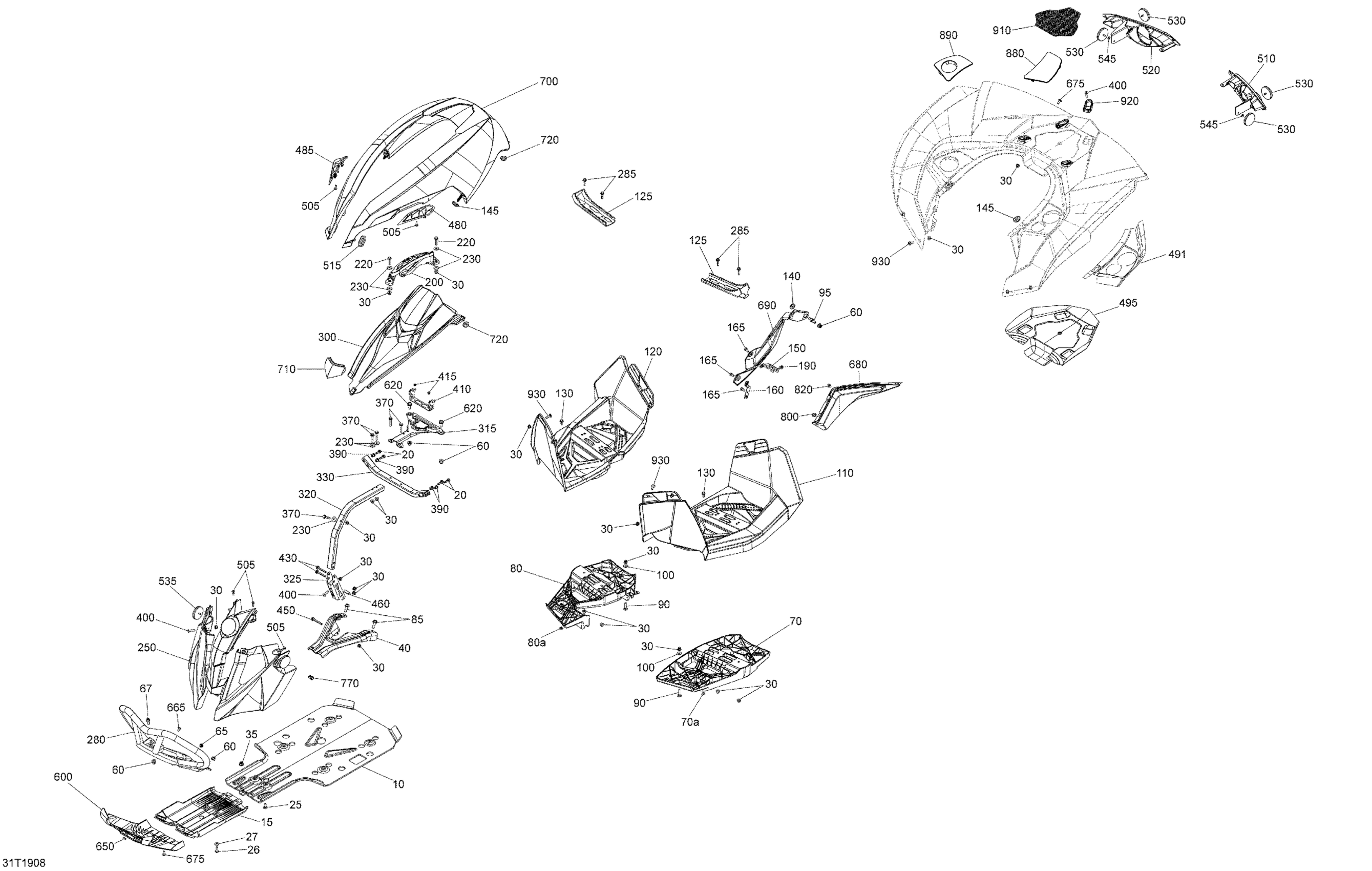

Can-Am Renegade 570 EFI - 2019 Body And Accessories - STD Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.49

10

Central Skid Plate | Package-XXC

705204031

$174.49

15

Skid Plate | XXC

705007820

$20.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

26

Torx Screw M6 X 20

250000712

$2.11

27

Stainless Steel Flat Washer

234062670

$2.11

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

40

Bumper Support

705003505

$39.99

40

Bumper Support

705003505

$39.99

40

Black, Bumper Support | Package XXC, Model Black

705015692

$38.99

60

Hex. Flange Elastic Nut M8

233281434

$2.11

65

Insert Half Hex Body M6 x 1.0

250100199

$3.19

67

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

70

LH Footboard

705004176

$49.99

70a

Square Nut M6

232862412

$1.49

80

RH Footboard

705004177

$49.99

80a

Square Nut M6

232862412

$1.49

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

90

Carriage Bolt M6 X 30

207763044

$4.44

95

Ball Head Stud

250300039

$7.51

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footboard/Fender

705004730

$134.99

120

RH Footboard/Fender

705004729

$134.99

125

Footrest

705002326

$43.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

140

Grommet

709000582

$4.69

145

Oval Washer

705000321

$5.61

150

Engine Cover Support

705011461

$10.49

160

Engine Cover Support

705003646

$9.23

165

Hex. Flange Screw M6 X 12

210261250

$1.90

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

200

Lever Indicator

705003838

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Front Facia

705003948

$55.99

280

Red Front Bumper | Model Red

705010632

$280.99

280

Front Bumper

705011635

$280.99

280

Front Bumper

705011635

$280.99

280

Black, Front Bumper | Package XXC, Model Black

705015695

$280.99

280

Paint Sunburst Yellow Front Bumper

705012139

$280.99

285

Hex. Flange Screw M6 X 25

207662554

$1.48

300

Dashboard

705003556

$46.99

315

Bracket

705003599

$24.49

320

Front Bent Sectional Tube

705016094

$104.99

325

Support

705002282

$31.99

325

Black, Support | Package XXC, Model Black

705015691

$30.99

330

Bent Sectional Tube

705016093

$104.99

370

Hex. Flange Screw M6 X 35

207663544

$0.90

390

Insert

293450275

$12.99

400

Torx Screw M6 X 25

250000758

$2.11

410

Fuse Holder

710002482

$8.99

415

Pop Rivet 3/16"

390402400

$0.35

430

Hex. Flange Screw M6 X 45

207664544

$1.46

450

Hex. Flange Screw M6 X 50

207665044

$4.12

460

Spacer

705005809

$12.99

480

LH Grille

705008137

$20.99

485

RH Grille

705008138

$20.99

491

Reflective Sheet

707002475

$3.89

495

Reflective Sheet

705005840

$9.39

505

Torx Screw K50 X 16

250000720

$1.69

510

LH Rear Facia | North America, International

705004731

$19.99

515

Oblong Grommet

705003668

$5.79

520

RH Rear Facia | North America, International

705004732

$19.99

530

Red Reflector

705011221

$14.49

535

Amber Reflector | Except Europe Model

705011222

$14.49

545

Flat Washer

517225900

$0.18

600

Front Bumper Plate

705004850

$19.99

620

Hex. Flange Screw M8 X 20

207682044

$1.15

650

Square Nut M6

232862412

$1.49

665

Torx Screw M6 X 12

250000454

$4.44

675

Torx Screw M6 X 16

250000755

$0.87

680

Panel Extension

705004988

$15.49

690

Engine Cover

705004966

$14.49

700

Deep Black Central Panel Kit | Package XXC, Model Black, North America

715004145

$389.99

710

Cap

705002353

$15.49

720

Grommet

705003264

$4.09

770

Tuflok Plastic Rivet

293150230

$1.47

800

Clip

414479100

$1.90

820

Rubber Bumper

293830005

$8.09

880

LH Rear Body Panel Cap

705017923

$13.99

890

RH Rear Body Panel Cap

705017924

$15.99

910

Rear Carpet

705002343

$19.49

920

Hook

705017925

$16.99

930

Torx Screw M6 X 20

250000712

$2.11
