07- Steering

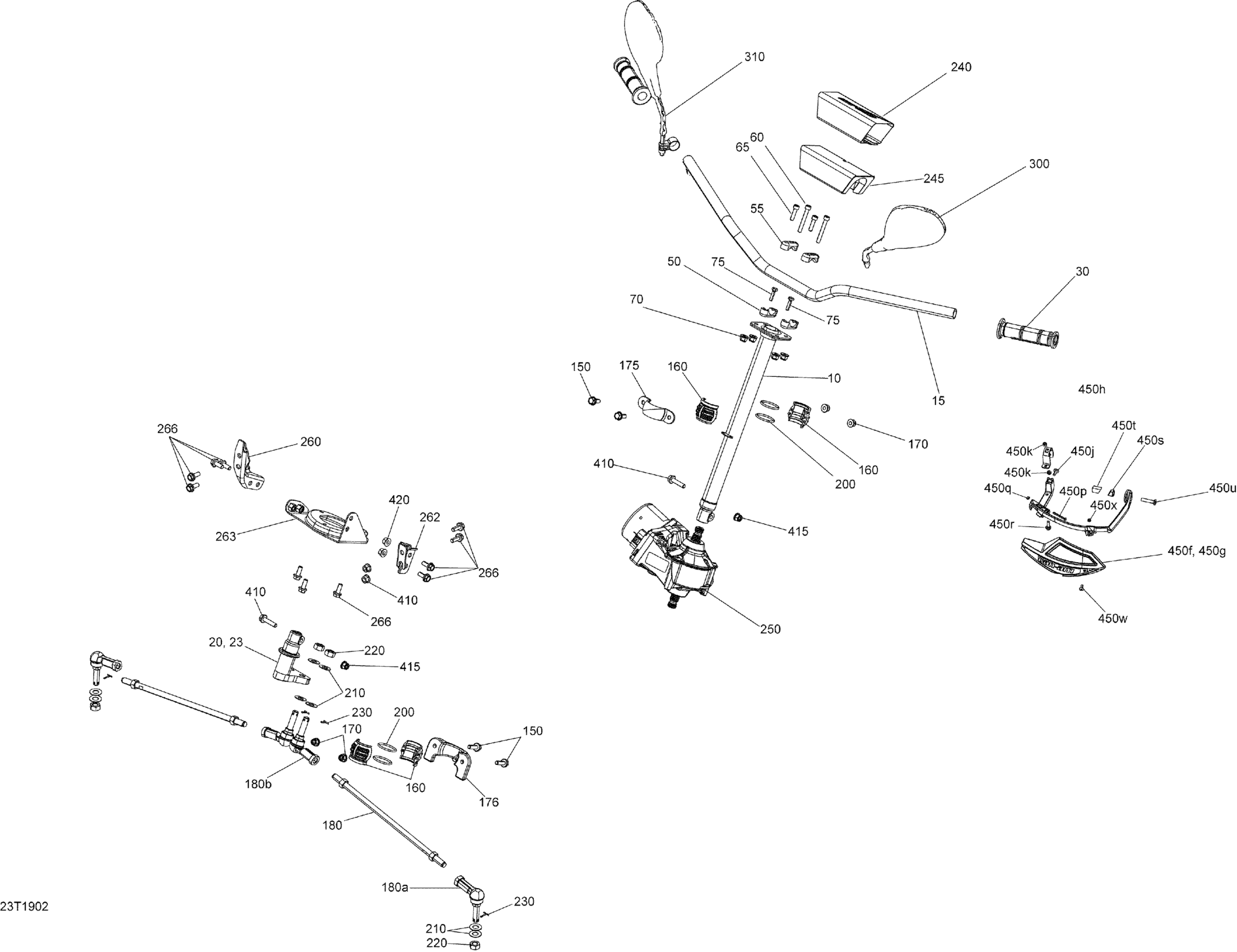

Can-Am 001 - Renegade 570 EFI - International, 2019 07- Steering Diagram
#
10
Main Tube
709401008
Unavailable
10
Main Tube Kit | Model With DPS
703501108
Unavailable
15
Black, Handle Bar
709401240
Unavailable
15
Sunburst Yellow, Handle Bar
709402063
Unavailable
23
Pitman Arm | Model XMR
703501161
Unavailable
30
Handle Grip
709400493
Unavailable
37
End Piece
709400449
Unavailable
50
Lower Mounting Clamp
709402750
Unavailable
50
Steering Support
709401799
Unavailable
51
Stiffner
709400509
Unavailable
55
Support
709400496
Unavailable
60
Socket Head Screw M8 X 60
205086060
Unavailable
60
Hex. Screw M8 X 60
207086046
Unavailable
65
Socket Screw M8 X 30
205083060
Unavailable
70
Hex. Elastic Flange Nut M8
233281416
Unavailable
75
Hex. Screw M8 X 30
207183060
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
160
Spherical Half Bushing
709400783
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
175
Upper Column Attachment
709400827
Unavailable
176
Column Attachment
709401428
Unavailable
180
Tie-Rod Ass`y | Includes 180 to 180b
703501039
Unavailable
180a
LH Ball Joint
709402303
Unavailable
185
RH Ball Joint
709402302
Unavailable
200
O-Ring
293300068
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Nut M12
250100099
Unavailable
230
Cotter Pin
211400013
Unavailable
240
Cover
709400939
Unavailable
240
Cover
709402113
Unavailable
245
Foam
709400422
Unavailable
250
Power Steering Ass'y | Model With DPS
709403187
Unavailable
260
LH Power Steering Bracket | Model With DPS
709402184
Unavailable
262
RH Bracket | Model With DPS
709402185
Unavailable
263
Power Steering Support | Model With DPS
709401743
Unavailable
266
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
410
Hex. Flange Screw M8 X 35
250000986
Unavailable
415
Hex. Elastic Flange Nut M8
233281416
Unavailable
420
Hex. Flange Nut M8
233081416
Unavailable
441
Strap Ass'y | Package XMR
506152115
Unavailable
442
Collar Tube | Package XMR
709401720
Unavailable
443
Bushing | Package XMR
506152156
Unavailable
444
Hex. Flange Screw M6 X 20
207662054
Unavailable
445
Hex. Flange Elastic Nut M6
233261466
Unavailable
450f
Sunburst Yellow RH Air Deflector
709402053
Unavailable
450g
Sunburst Yellow LH Air Deflector
709402054
Unavailable
450h
Socket Head Screw M4 X 40
205444056
Unavailable
450j
Elastic Stop Nut M4
232541414
Unavailable
450k
Air Deflector Support Kit | X
715001378
Unavailable
450m
Air Deflector Support Kit | X
715001378
Unavailable
450n
Air Deflector Support Kit | X
715001378
Unavailable
450p
Hex. Flange Screw M6 X 20
207662044
Unavailable
450q
Torx Head Screw M6 X 16
250000717
Unavailable
450r
Hex. Elastic Stop Nut M6
232561600
Unavailable
450s
Small Bracket | DS 650 X
709400161
Unavailable
450t
Large Bracket | DS 650 X
709400162
Unavailable
450u
Socket Head Screw | X
205384034
Unavailable
450w
Torx Screw M5 X 14
250000742
Unavailable
450x
Hex. Elastic Nut M5 | X
232551600
Unavailable
