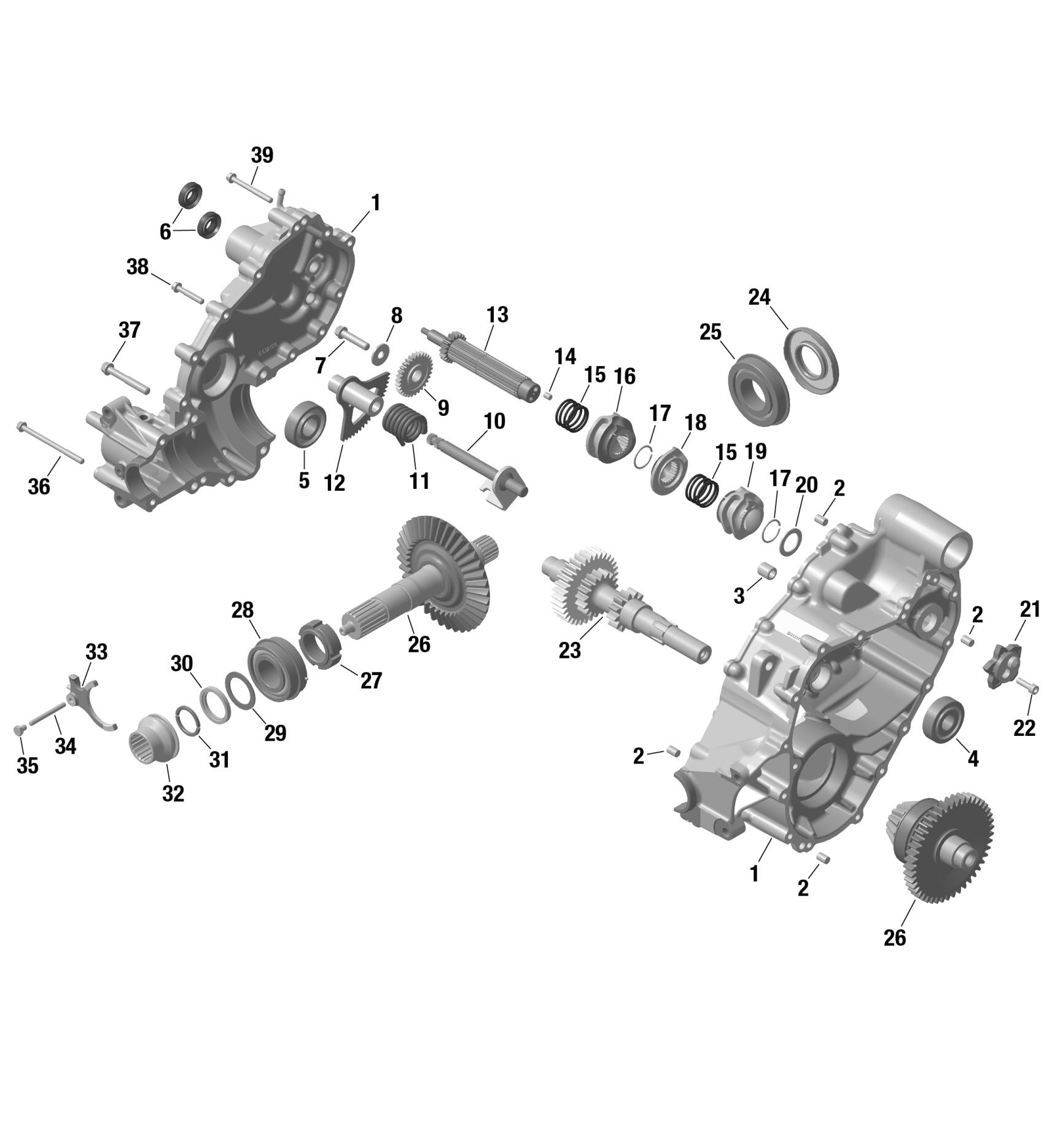

Can-Am Renegade 1000R EFI - XXC - CE, 2023 ROTAX - GEARBOX 1 Diagram

#

Description
Price

2

Center Pin 8 X 12

420632010

$3.07

4

Ball Bearing

420932816

$40.37

5

Ball Bearing 6204

420932433

$22.28

6

Oil Seal

420250452

$17.66

7

Torx Flange Screw M8 X 35

420440861

$3.17

8

Plain Washer

420227937

$2.75

9

Shift Shaft Ass'y | Includes 9a to 12

420620922

$91.51

13

Shifting Drum Ass'y | Includes 13-20

420657235

$299.97

23

Countershaft

420637708

$364.58

24

Oil Seal

420831956

$26.62

32

Shifting Sleeve

420257674

$124.58

33

Shifting Fork

420257606

$46.12

34

Needle Pin

420832650

$7.37

35

Hex Screw M6 X 8

420841581

$1.08

36

Torx Flange Screw M6 X 85

420641228

$6.11

37

Torx Flange Screw M8 X 55

420641213

$6.11

38

Torx Flange Screw M6 X 35

420440274

$0.83

39

Torx Flange Screw M6 X 55

420440702

$2.54
