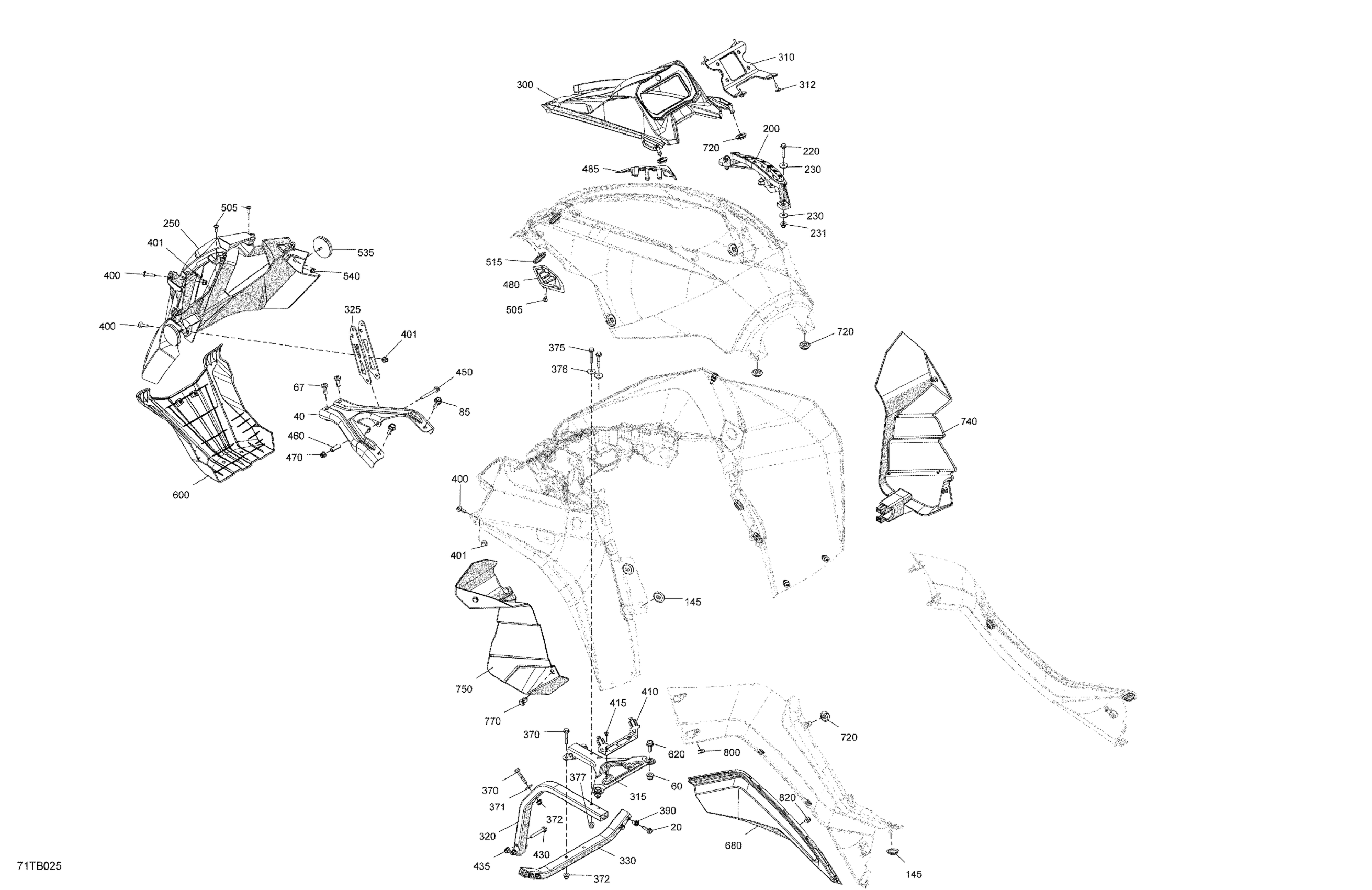

Can-Am Renegade 1000R EFI - XXC - CE, 2022 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

40

Black, Bumper Support | Package XXC, Model Black

705015692

$35.04

60

Hex. Flange Elastic Nut M8

233281414

$1.31

67

Torx Screw M8 X 20, Scotch Grip

250000740

$2.40

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

145

Oval Washer

705000321

$5.33

200

Lever Indicator | 1000

705004416

$15.64

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

230

Flat Washer

224061201

$1.27

231

Flange Elastic Nut M6

233261434

$4.15

250

Front Facia

705003948

$49.97

300

Gauge Support

705015167

$41.01

310

Int Gauge Support

705015168

$5.42

312

Screw M4 X 16

250000725

$3.30

315

Bracket

705003599

$21.61

320

Front Sectinal Bent Tube

705016643

$91.76

325

Black, Support | Package XXC, Model Black

705015691

$27.58

330

Sectinal Bent Tube

705016642

$91.76

370

Hex. Flange Screw M6 X 35

207663544

$0.85

371

Flat Washer

224061201

$1.27

372

Flange Elastic Nut M6

233261434

$4.15

375

Hex. Flange Screw M6 X 40

207664044

$2.12

376

Flat Washer

224061201

$1.27

377

Flange Elastic Nut M6

233261434

$4.15

390

Insert

293450275

$11.36

400

Torx Screw M6 X 25

250000758

$2.00

401

Flange Elastic Nut M6

233261434

$4.15

410

Fuse Holder

710002482

$6.69

415

Pop Rivet 3/16"

390402400

$0.28

430

Hex. Flange Screw M6 X 45

207664544

$1.22

435

Flange Elastic Nut M6

233261434

$4.15

450

Hex. Flange Screw M6 X 50

207665044

$3.88

451

Reflective Sheet

707002475

$32.81

460

Spacer

705005809

$11.31

470

Flange Elastic Nut M6

233261434

$4.15

480

LH Grille

705008137

$18.63

485

RH Grille

705008138

$18.63

505

Torx Screw K50 X 16

250000720

$1.60

515

Oblong Grommet

705003668

$5.21

535

Amber Reflector | Except Europe Model

705011222

$11.96

540

Flange Elastic Nut M5

233251434

$1.91

600

Front Bumper Plate

705004850

$17.13

620

Hex. Flange Screw M8 X 20

207682044

$1.06

680

Panel Extension

705004988

$13.84

720

Grommet

705003264

$3.94

740

RH Front Wheel Arch Protector

705017922

$23.85

750

LH Front Wheel Arch Protector

705017926

$23.85

770

Tuflok Plastic Rivet

293150230

$1.39

800

Clip

414479100

$1.81

820

Rubber Bumper

293830005

$6.12
