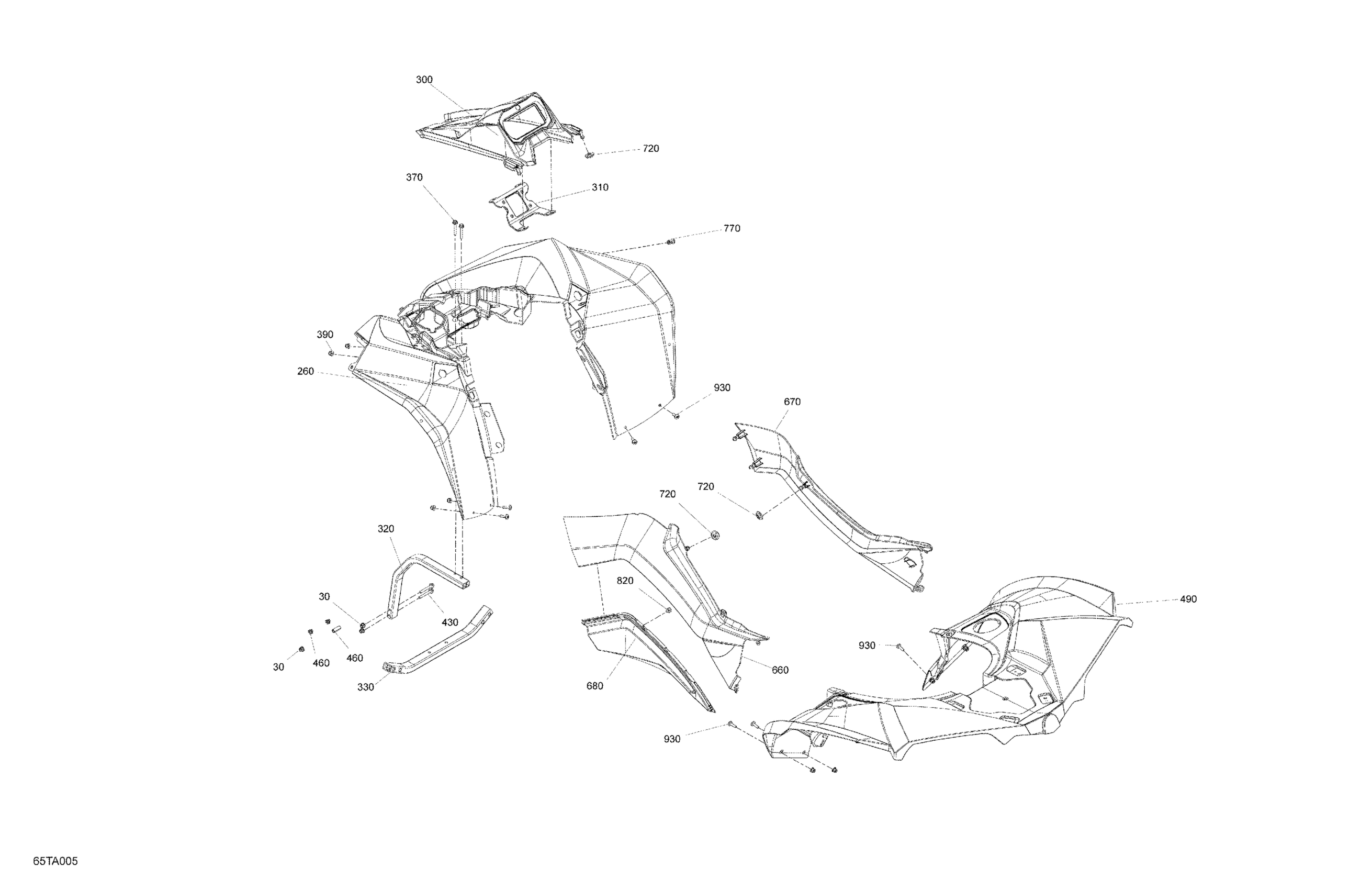

Can-Am Renegade 1000R EFI - XXC - CE, 2021 Body - Fender Kit Diagram

Description

Price

Flange Elastic Nut M6

233261434

$3.61

260

Timeless Black, Front Fender Kit

715006716

$541.51

300

Gauge Support

705015167

$42.28

310

Int Gauge Support

705015168

$5.58

320

Front Bent Sectional Tube

705016094

$94.58

330

Bent Sectional Tube

705016093

$94.58

370

Hex. Flange Screw M6 X 35

207663544

$0.74

390

Insert

293450275

$9.89

430

Hex. Flange Screw M6 X 45

207664544

$1.07

460

Spacer

705005809

$11.98

490

Timeless Black, Rear Fender Ass'y

715007448

$427.66

660

Carbon Black, LH Side Panel

705012137

$286.12

670

Carbon Black, RH Side Panel

705012138

$286.12

680

Panel Extension

705004988

$14.75

720

Grommet

705003264

$3.43

770

Tuflok Plastic Rivet

293150230

$1.21

820

Rubber Bumper

293830005

$5.33

930

Torx Screw M6 X 20

250000712

$1.74
