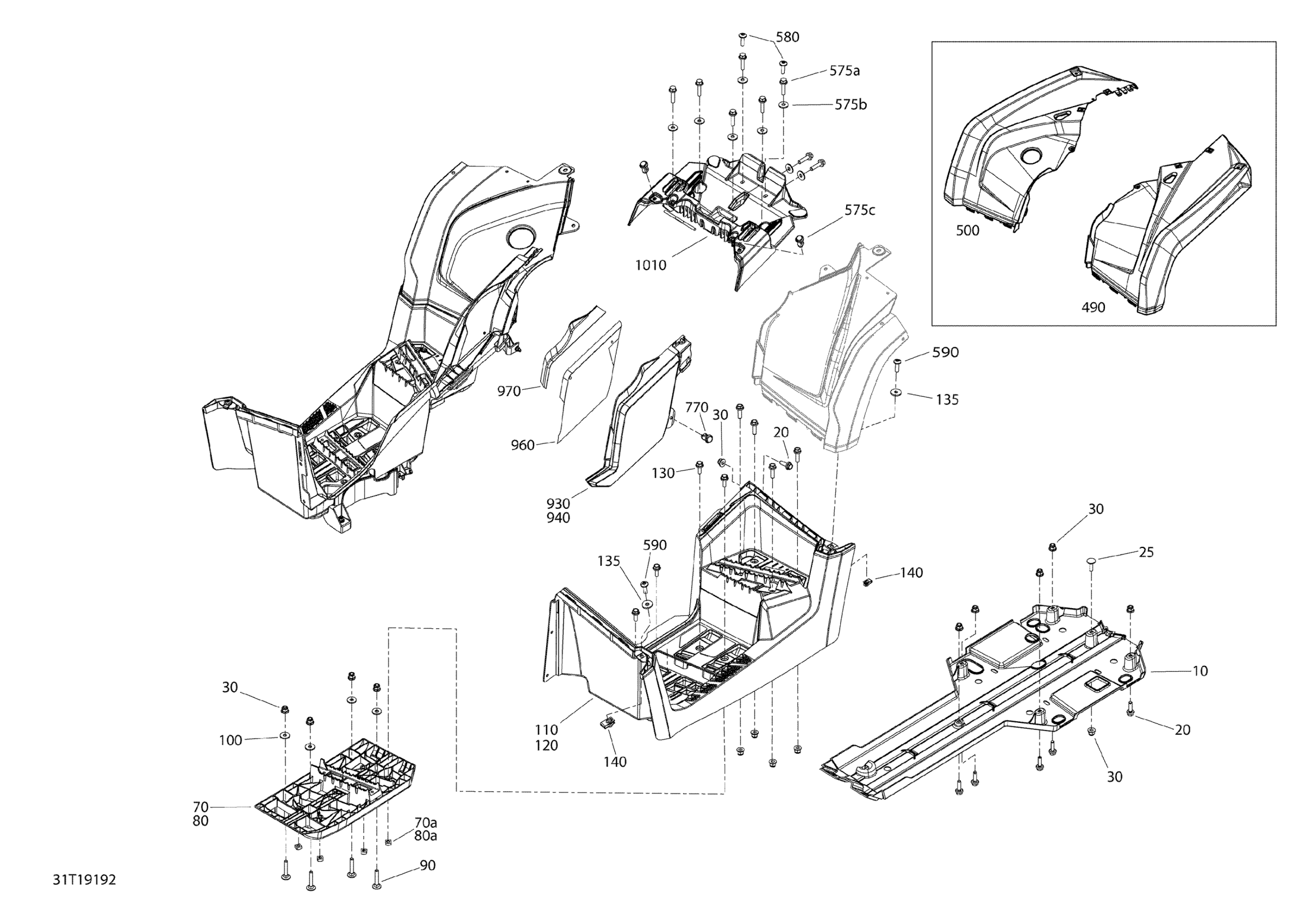

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - North America, 2019 09- Body And Accessories 6X6 - 450 EFI - Squadron Green - Middle Diagram

#

Description

Price

10

Protective Plate Kit

715002374

Unavailable

20

Hex. Flange Screw M6 X 20

207662054

Unavailable

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

30

Flange Elastic Nut M6

233261434

Unavailable

70

LH Structural Footboard

705011540

Unavailable

70a

Square Nut M6

232862412

Unavailable

80

RH Structural Footboard

705011542

Unavailable

80a

Square Nut M6

232862412

Unavailable

90

Carriage Bolt M6 X 35

207763554

Unavailable

100

Flat Washer 6 mm

234062410

Unavailable

110

LH Footrest Max

705003525

Unavailable

120

RH Footrest Max | Engine 450 MAX Model

705007724

Unavailable

130

Hex. Flange Screw M6 X 16

207661654

Unavailable

135

Flat Washer

224061201

Unavailable

140

Panel Nut M6 X 1.0

250100198

Unavailable

490

Squadron Green, Rear LH Fender Kit

715006163

Unavailable

500

Squadron Green Rear RH Fender

715006167

Unavailable

575a

Hex Flange Screw M6 X 25

250000841

Unavailable

575b

Stainless Steel Flat Washer

234062670

Unavailable

575c

Tuflok Plastic Rivet

293150230

Unavailable

580

Torx Truss Screw M6 X 25

250000807

Unavailable

590

Torx Screw M6 X 20

250000722

Unavailable

770

Tuflok Plastic Rivet

293150230

Unavailable

930

LH Extension Panel

715001897

Unavailable

940

RH Extension Panel

705004348

Unavailable

960

Heat Shield

705006870

Unavailable

970

Heat Shield

705006871

Unavailable

1010

Seat Holder

705007948

Unavailable
