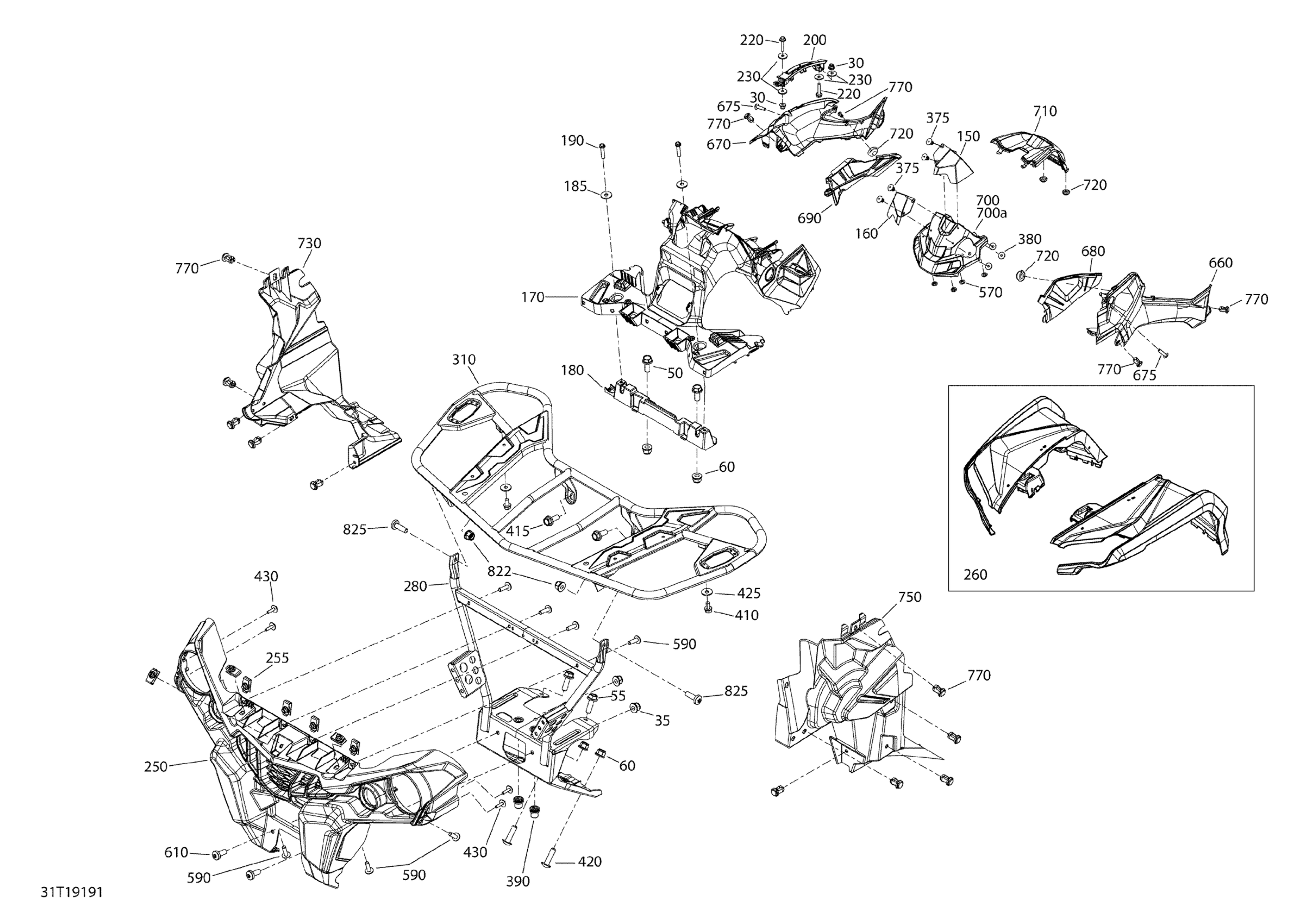

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - North America, 2019 09- Body And Accessories 6X6 - 450 EFI - Squadron Green - Front Diagram

Description

Price

Flange Elastic Nut M6

233261434

Unavailable

Hex. Flange Elastic Nut M8

233281434

Unavailable

Hex. Flange Screw M8 X 20

207682044

Unavailable

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

Hex. Flange Elastic Nut M8

233281434

Unavailable

150

LH Air Deflector

705006134

Unavailable

160

RH Air Deflector

705006135

Unavailable

170

Console Support Ass'y | Model-Europe/International

715006101

Unavailable

180

Console Support Insert

705010406

Unavailable

185

Flat Washer M6, Stainless

234062600

Unavailable

190

Hex. Flange Screw K50 X 2.24 X 25

241152540

Unavailable

200

Shifter Gate

715006169

Unavailable

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

230

Flat Washer

224061201

Unavailable

250

Front Facia | Model-North America, International

705009334

Unavailable

255

Panel Nut M6 X 1.0

250100198

Unavailable

260

Squadron Green Front Fender

715006158

Unavailable

280

Front Frame

705017337

Unavailable

310

Black, Front Luggage Rack

705006887

Unavailable

375

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

380

Washer

517124300

Unavailable

390

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

410

Hex. Flange Screw M6 X 12

210261250

Unavailable

415

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

420

Torx Screw M8 X 30

250000886

Unavailable

425

Stainless Steel Flat Washer

234062670

Unavailable

430

Screw M4 X 16

250000725

Unavailable

570

Push Nut

732610072

Unavailable

590

Torx Screw M6 X 20

250000722

Unavailable

610

Hex. Screw M8 X 20

236282054

Unavailable

660

Squadron Green, LH Lateral Panel | Green Model

705009760

Unavailable

670

Squadron Green, RH Lateral Panel | Green Model

705009764

Unavailable

675

Phillips Screw K40 X 16

250000723

Unavailable

680

Deflector_Body Panel Kit

715007008

Unavailable

690

Engine Cover

705003444

Unavailable

700

Gauge Support

705007095

Unavailable

710

Dash Kit

715005837

Unavailable

720

Grommet

705003264

Unavailable

730

RH Front Wheel Arch Protector

705017023

Unavailable

750

LH Inner Fender

705012338

Unavailable

770

Tuflok Plastic Rivet

293150230

Unavailable

822

Elastic Flange Nut M8

233281464

Unavailable

825

Pan Torx Screw M8 X 25

250000898

Unavailable
