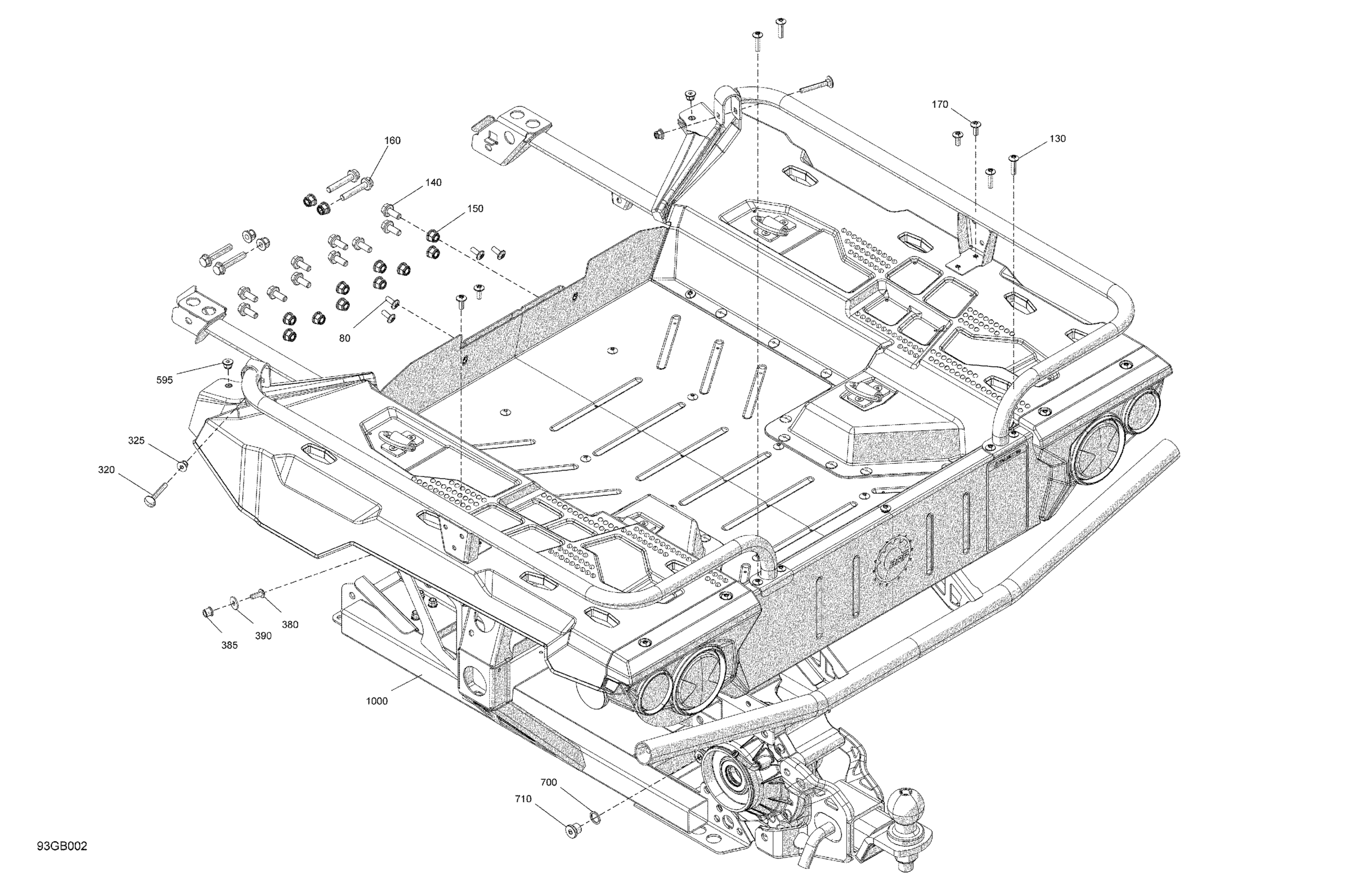

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - North America, 2022 09- Miscellaneous - Options Diagram

#

Description

Price

80

Torx Head Screw M6 X 16

250000717

Unavailable

130

Torx Truss Screw M6 X 25

250000807

Unavailable

140

Hex. Flange Screw M8 X 20

207682046

Unavailable

150

Hex. Elastic Flange Nut M8

233281416

Unavailable

160

Hex. Flange Screw M6 X 45

250001028

Unavailable

170

Torx Head Screw M6 X 16

250000717

Unavailable

320

Carriage Bolt M6 X 45

207764550

Unavailable

325

Hex. Flange Elastic Nut M6

233261466

Unavailable

380

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

385

Collar Huck Magna-Grip 6.4

293150149

Unavailable

390

Stainless Steel Flat Washer

234062670

Unavailable

520

Cargo Warning Decal | Not shown

704907649

Unavailable

595

Hex. Flange Elastic Nut M6

233261494

Unavailable

700

Copper Washer | 4X4

705500506

Unavailable

710

Fill Level Plug | 4X4

705500504

Unavailable

940

Cargo Warning Decal

704907406

Unavailable

1000

Scarab Kit Black Fb Outlander Max | Includes 1000 to 1000g100

605456703

Unavailable

1000a1

CVT Filter

707001786

Unavailable

1000a2

CVT Inlet

707001864

Unavailable

1000a3

Crimp Clamp

293650240

Unavailable
