Partiron

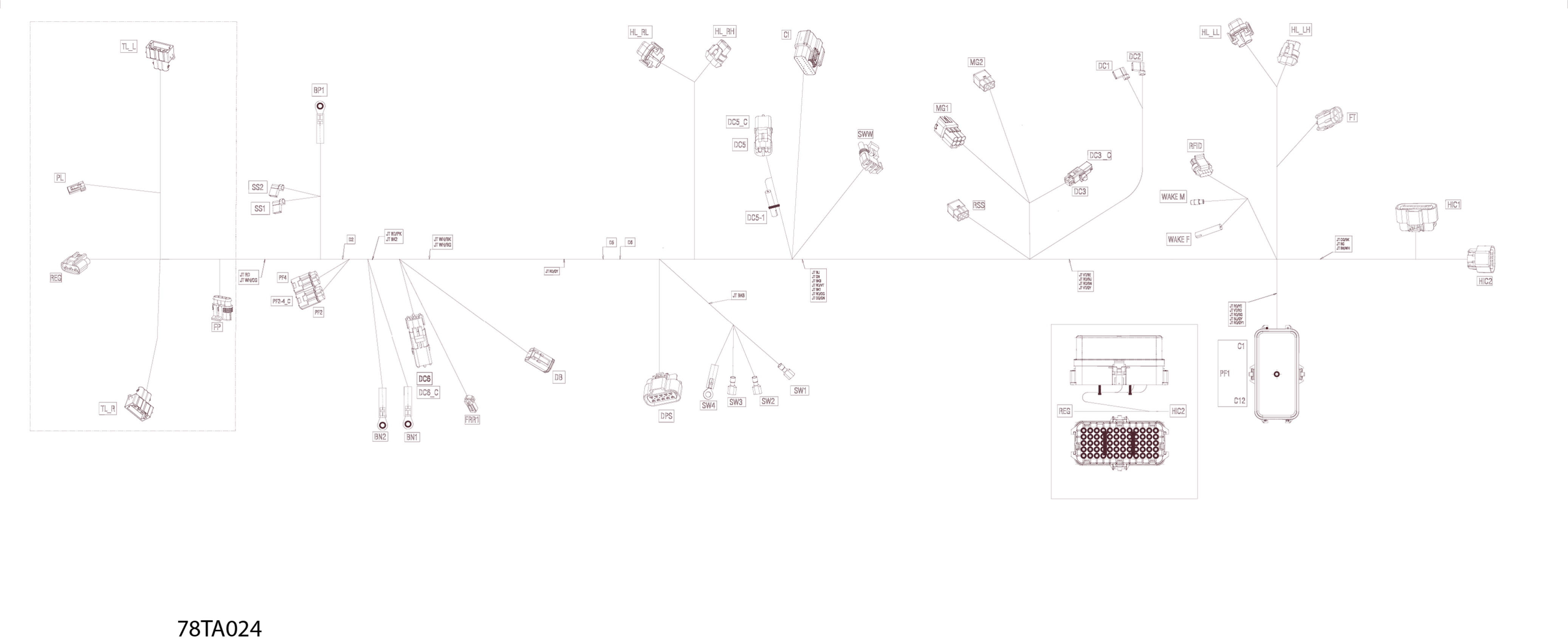

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2021 Electric - Main Harness - 710007267 Diagram

#

Description
Price

200

Main Wiring Harness

710007267

$929.99

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

CI

Female Housing 20 Circuits

278002858

$22.49

CI

Sealing Cap

278002860

$1.79

CI

Female Terminal

515178018

$1.19

CI

Female Terminal 22 AWG

515178349

$2.29

D2

Diode

409012700

$11.12

D5

Diode

409012700

$11.12

D6

Diode

409012700

$11.12

DB

Female Housing 6 Circuits

710002706

$20.49

DB

Lock

710002705

$4.44

DB

Female Terminal

710005438

$4.29

DB

Female Terminal

710005439

$4.44

DC1

Female Terminal

409010300

$4.39

DC2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_C

Male Housing, 2 Circuits

710000667

$8.32

DC5

Male Connector, 2 Circuits

278000220

$15.49

DC5

Wire Seal

278001065

$7.69

DC5

Female Terminal

278000223

$3.19

DC5_C

Clip

710000992

$4.29

DC5_C

Female Housing, 2 Circuits

278000217

$9.59

DC5_C

Wire Seal

278000216

$3.19

DC5-1

Insulated Sheath

278001007

$3.58

DC5-1

Female Terminal

710000421

$6.11

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278001065

$7.69

DC6

Female Terminal

278000223

$3.19

DC6_C

Clip

710000992

$4.29

DC6_C

Female Housing, 2 Circuits

278000217

$9.59

DC6_C

Wire Seal

278000216

$3.19

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal | PACKARD 12191221

710001860

$2.24

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

F11

Little Fuse, 30 Amperes

710000747

$8.49

F12

Little Fuse, 15 Ampere

710000745

$8.49

F14

Little Fuse, 15 Ampere

710000745

$8.49

F15

Little Fuse, 5 Amperes

710000742

$8.79

F4

Little Fuse, 5 Amperes

710000742

$8.79

F5

Little Fuse, 5 Amperes

710000742

$8.79

F6

Little Fuse, 5 Amperes

710000742

$8.79

F7

Little Fuse, 5 Amperes

710000742

$8.79

F8

Little Fuse, 5 Amperes

710000742

$8.79

F9

Fuse, 25 Amps

710002590

$19.49

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FRR1

Female Housing, 2 Circuits

515175658

$16.18

FRR1

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIC1

Housing

710001226

$13.49

HIC1

Lock

710001222

$2.09

HIC1

Seal

710001233

$3.19

HIC1

Terminal

710001229

$3.19

HIC2

Housing

710001928

$16.86

HIC2

Lock

710001222

$2.09

HIC2

Seal

710001233

$3.19

HIC2

Seal Wire

710001332

$3.28

HIC2

Terminal

710001229

$3.19

HIC2

Terminal

710001228

$3.28

HL_LH

Housing

710002278

$7.39

HL_LH

Lock

710002279

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002278

$7.39

HL_RH

Lock

710002279

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Seal

409012300

$4.54

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal

409011300

$5.93

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Wire Seal

710000402

$4.55

MG2

Seal

409012300

$4.54

MG2

Female Terminal

409012100

$4.55

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF1_C

Fuse Cover

710001026

$21.99

PF1_C

Logo Fuse Relay

710006657

$14.49

PF1_C

Foam

278002172

$5.89

PF1_C

Little Fuse, 5 Amperes

710000742

$8.79

PF1_C

Little Fuse, 15 Ampere

710000745

$8.49

PF1_C

Little Fuse, 30 Amperes

710000747

$8.49

PF2

Fuse

710001613

$8.79

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000113

$6.99

PF4

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000357

$7.69

PL

Female Housing, 2 Circuits

515175658

$16.18

PL

Female Terminal

710003896

$2.19

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Lock

710001162

$3.19

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RSS

Female Housing, 6 Circuits

710000081

$8.79

RSS

Cap

710000080

$8.29

RSS

Wire Seal

710000402

$4.55

RSS

Female Terminal

409012100

$4.55

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay, 30 AMP

515176774

$21.99

RY4

Relay

715900824

$21.99

RY5

Relay

715900824

$21.99

RY8

Relay

715900824

$21.99

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW1

Female Terminal

409010700

$5.39

SW2

Female Terminal

409010700

$5.39

SW3

Female Terminal

409010700

$5.39

SW4

Open Barrel

278000992

$2.21

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

278001065

$7.69

SWW

Female Terminal

278000223

$3.19

TL_L

Connector, 3 Positions

710003167

$9.21

TL_L

Seal

415128501

$1.89

TL_L

Terminal

710002443

$1.14

TL_R

Connector, 3 Positions

710003167

$9.21

TL_R

Seal

415128501

$1.89

TL_R

Terminal

710002443

$1.14

WAKE_F

Insulated Sheath

278001007

$3.58

WAKE_F

Female Terminal

710000421

$6.11

WAKE_M

Insulated Sheath

278001008

$3.28

WAKE_M

Female Terminal

278002261

$7.55
