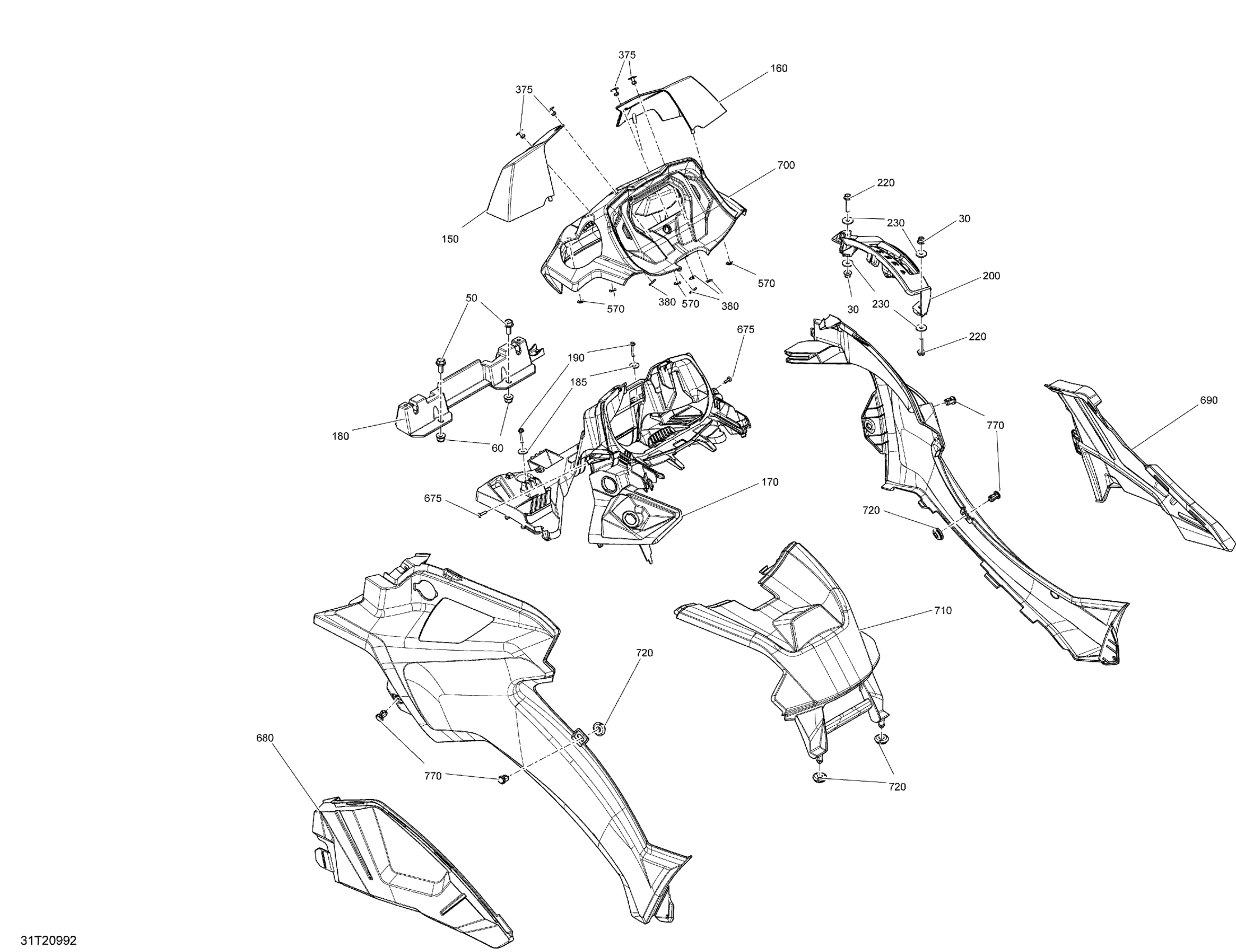

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2021 Body - Middle Section Diagram

Description

Price

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281434

$1.74

150

LH Air Deflector

705006134

$24.58

160

RH Air Deflector

705006135

$23.05

170

Console Support Ass'y | Model-Europe/International

715006101

$54.58

180

Console Support Insert

705010406

$13.85

185

Flat Washer M6, Stainless

234062600

$0.64

190

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

200

Shifter Gate

715006169

$41.51

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

380

Washer

517124300

$0.16

570

Push Nut

732610072

$1.72

675

Phillips Screw K40 X 16

250000723

$0.81

680

Deflector_Body Panel Kit

715007008

$51.51

690

Engine Cover

705003444

$20.74

700

Gage Support | Package PRO - XMR

705010139

$41.51

710

Dash Kit

715005837

$32.28

720

Grommet

705003264

$3.43

770

Tuflok Plastic Rivet

293150230

$1.21
