- 001 - Outlander MAX 6X6 - 450 EFI - DPS - International, 2023
08- Electric - Main Harness - 710007267

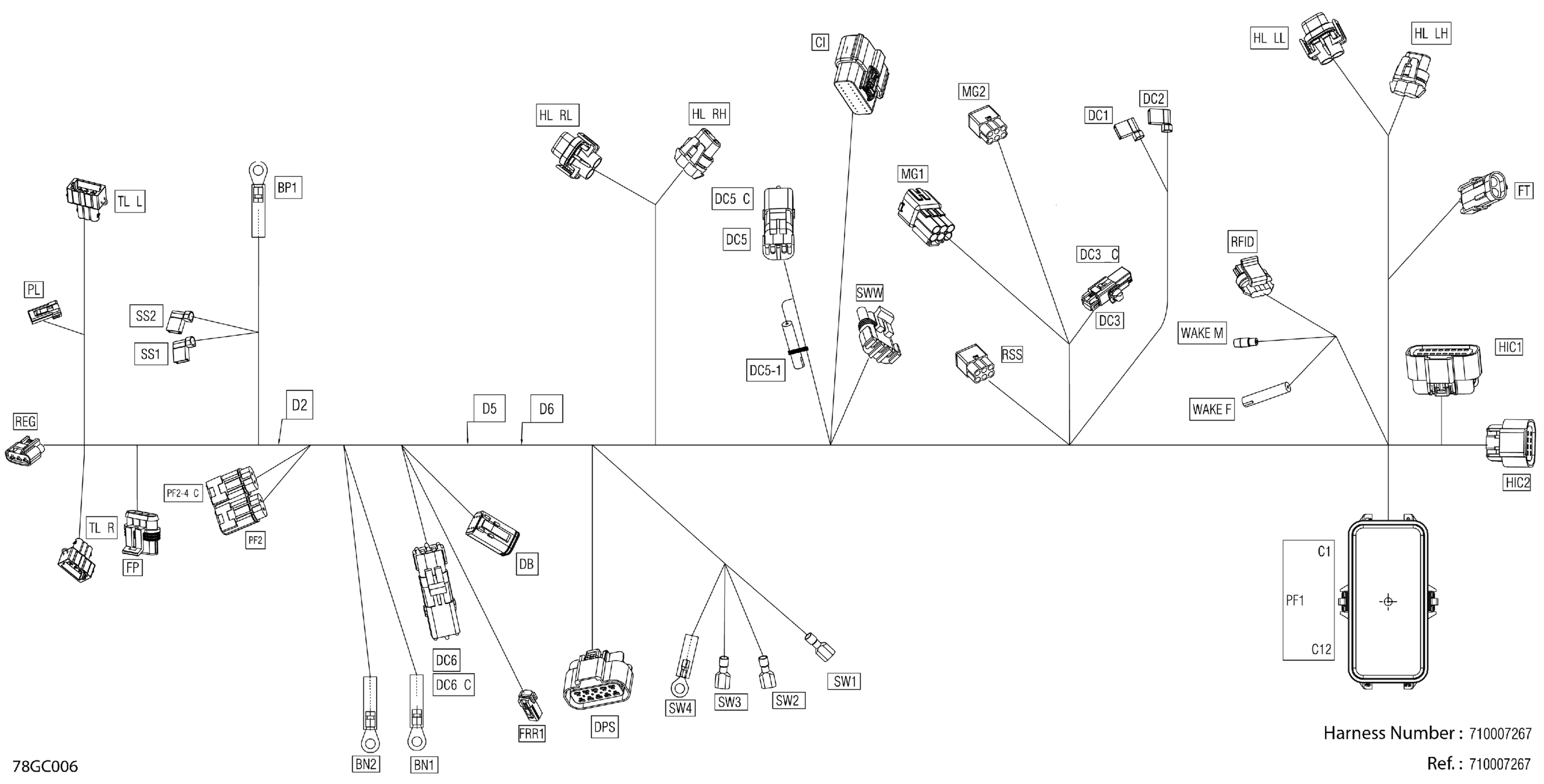

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - International, 2023 08- Electric - Main Harness - 710007267 Diagram
#
200
Main Wiring Harness
710007267
Unavailable
BN1
Open Barrel Terminal
278001392
Unavailable
BN2
Open Barrel Terminal
278001392
Unavailable
BP1
Open Barrel Terminal
278001392
Unavailable
CI
Female Housing 20 Circuits
278002858
Unavailable
CI
Sealing Cap
278002860
Unavailable
CI
Female Terminal
515178018
Unavailable
CI
Female Terminal 22 AWG
515178349
Unavailable
D2
Diode
409012700
Unavailable
D5
Diode
409012700
Unavailable
D6
Diode
409012700
Unavailable
DB
Female Housing 6 Circuits
710002706
Unavailable
DB
Lock
710002705
Unavailable
DB
Female Terminal
710005438
Unavailable
DB
Female Terminal
710005439
Unavailable
DC1
Female Terminal
409010300
Unavailable
DC2
Female Terminal
409010300
Unavailable
DC3
Female Housing, 2 Circuits
515175658
Unavailable
DC3
Female Terminal
515175231
Unavailable
DC3 C
Male Housing, 2 Circuits
710000667
Unavailable
DC5
Male Connector, 2 Circuits
278000220
Unavailable
DC5
Wire Seal
278001065
Unavailable
DC5
Female Terminal
278000223
Unavailable
DC5 C
Clip
710000992
Unavailable
DC5 C
Female Housing, 2 Circuits
278000217
Unavailable
DC5 C
Wire Seal
278000216
Unavailable
DC5-1
Insulated Sheath
278001007
Unavailable
DC5-1
Female Terminal
710000421
Unavailable
DC6
Male Connector, 2 Circuits
278000220
Unavailable
DC6
Wire Seal
278001065
Unavailable
DC6
Female Terminal
278000223
Unavailable
DC6 C
Clip
710000992
Unavailable
DC6 C
Female Housing, 2 Circuits
278000217
Unavailable
DC6 C
Wire Seal
278000216
Unavailable
DPS
Female Housing
710004989
Unavailable
DPS
Lock | PACKARD 15430900
710005098
Unavailable
DPS
Lock
710001222
Unavailable
DPS
Plug
710002075
Unavailable
DPS
Wire Seal
278002186
Unavailable
DPS
Seal | PACKARD 12191221
710001860
Unavailable
DPS
Female Terminal
278002187
Unavailable
DPS
Terminal
710001873
Unavailable
F4
Little Fuse, 5 Amperes
710000742
Unavailable
F5
Little Fuse, 5 Amperes
710000742
Unavailable
F6
Little Fuse, 5 Amperes
710000742
Unavailable
F7
Little Fuse, 5 Amperes
710000742
Unavailable
F8
Little Fuse, 5 Amperes
710000742
Unavailable
F9
Fuse, 25 Amps
710002590
Unavailable
F11
Little Fuse, 30 Amperes
710000747
Unavailable
F12
Little Fuse, 15 Ampere
710000745
Unavailable
F14
Little Fuse, 15 Ampere
710000745
Unavailable
F15
Little Fuse, 5 Amperes
710000742
Unavailable
FP
Female Housing, 4 Circuits
409209700
Unavailable
FP
Wire Seal
278001013
Unavailable
FP
Wire Seal
515176621
Unavailable
FP
Female Terminal
278001014
Unavailable
FP
Female Terminal
710001340
Unavailable
FRR1
Female Housing, 2 Circuits
515175658
Unavailable
FRR1
Female Terminal
710003896
Unavailable
FT
Clip Bracket Connector (edge)
409210100
Unavailable
FT
Female Housing, 2 Circuits
278000217
Unavailable
FT
Wire Seal
278000218
Unavailable
FT
Male Terminal
409004300
Unavailable
HIC1
Housing
710001226
Unavailable
HIC1
Lock
710001222
Unavailable
HIC1
Seal
710001233
Unavailable
HIC1
Terminal
710001229
Unavailable
HIC2
Housing
710001928
Unavailable
HIC2
Lock
710001222
Unavailable
HIC2
Seal
710001233
Unavailable
HIC2
Seal Wire
710001332
Unavailable
HIC2
Terminal
710001229
Unavailable
HIC2
Terminal
710001228
Unavailable
HL LH
Housing
710002278
Unavailable
HL LH
Lock
710002279
Unavailable
HL LH
Wire Seal
710001427
Unavailable
HL LH
Female Terminal
278002578
Unavailable
HL LL
Housing
710002578
Unavailable
HL LL
Lock
710002584
Unavailable
HL LL
Wire Seal
710001427
Unavailable
HL LL
Female Terminal
278002578
Unavailable
HL RH
Housing
710002278
Unavailable
HL RH
Lock
710002279
Unavailable
HL RH
Wire Seal
710001427
Unavailable
HL RH
Female Terminal
278002578
Unavailable
HL RL
Housing
710002578
Unavailable
HL RL
Lock
710002584
Unavailable
HL RL
Wire Seal
710001427
Unavailable
HL RL
Female Terminal
278002578
Unavailable
MG1
Male Terminal Housing, 6 Circuits
710000835
Unavailable
MG1
Seal
409012300
Unavailable
MG1
Wire Seal
710000402
Unavailable
MG1
Male Terminal
409011300
Unavailable
MG2
Female Housing, 6 Circuits
710000081
Unavailable
MG2
Wire Seal
710000402
Unavailable
MG2
Seal
409012300
Unavailable
MG2
Female Terminal
409012100
Unavailable
PF1
Fuse Box Base Ass´y
415129856
Unavailable
PF1
Cap
710000840
Unavailable
PF1
Wire Seal
278000999
Unavailable
PF1
Seal
415128501
Unavailable
PF1
Female Terminal
515177009
Unavailable
PF1
Female Terminal
515177012
Unavailable
PF1 C
Fuse Cover
710001026
Unavailable
PF1 C
Logo Fuse Relay
710006657
Unavailable
PF1 C
Foam
278002172
Unavailable
PF1 C
Little Fuse, 5 Amperes
710000742
Unavailable
PF1 C
Little Fuse, 15 Ampere
710000745
Unavailable
PF1 C
Little Fuse, 30 Amperes
710000747
Unavailable
PF2
Fuse
710001613
Unavailable
PF2
Fuse Holder
278001325
Unavailable
PF2
Female Terminal
710000113
Unavailable
PF4
Fuse
710001613
Unavailable
PF4
Fuse Holder
278001325
Unavailable
PF4
Female Terminal
710000357
Unavailable
PL
Female Housing, 2 Circuits
515175658
Unavailable
PL
Female Terminal
710003896
Unavailable
REG
Female Housing, 3 Circuits
710000879
Unavailable
REG
Cap
710000882
Unavailable
REG
Seal
710001932
Unavailable
REG
Terminal
710001934
Unavailable
RFID
Housing
710001161
Unavailable
RFID
Lock
710001162
Unavailable
RFID
Wire Seal
710001163
Unavailable
RFID
Female Terminal
710001164
Unavailable
RSS
Female Housing, 6 Circuits
710000081
Unavailable
RSS
Cap
710000080
Unavailable
RSS
Wire Seal
710000402
Unavailable
RSS
Female Terminal
409012100
Unavailable
RY1
Relay, 30 AMP
515176774
Unavailable
RY2
Relay
715900824
Unavailable
RY3
Relay, 30 AMP
515176774
Unavailable
RY4
Relay
715900824
Unavailable
RY5
Relay
715900824
Unavailable
RY8
Relay
715900824
Unavailable
SS1
Female Terminal
409010300
Unavailable
SS2
Female Terminal
409010300
Unavailable
SW1
Female Terminal
409010700
Unavailable
SW2
Female Terminal
409010700
Unavailable
SW3
Female Terminal
409010700
Unavailable
SW4
Open Barrel
278000992
Unavailable
SWW
Male Housing, 3 Circuits
278000273
Unavailable
SWW
Wire Seal
278001065
Unavailable
SWW
Female Terminal
278000223
Unavailable
TL L
Connector, 3 Positions
710003167
Unavailable
TL L
Seal
415128501
Unavailable
TL L
Terminal
710002443
Unavailable
TL R
Connector, 3 Positions
710003167
Unavailable
TL R
Seal
415128501
Unavailable
TL R
Terminal
710002443
Unavailable
WAKE F
Insulated Sheath
278001007
Unavailable
WAKE F
Female Terminal
710000421
Unavailable
WAKE M
Insulated Sheath
278001008
Unavailable
WAKE M
Female Terminal
278002261
Unavailable
