- 004 - ATV - North America - Outlander 850 Series
- 001 - Outlander 850 EFI - STD - North America, 2022
08- Electric - Front Section

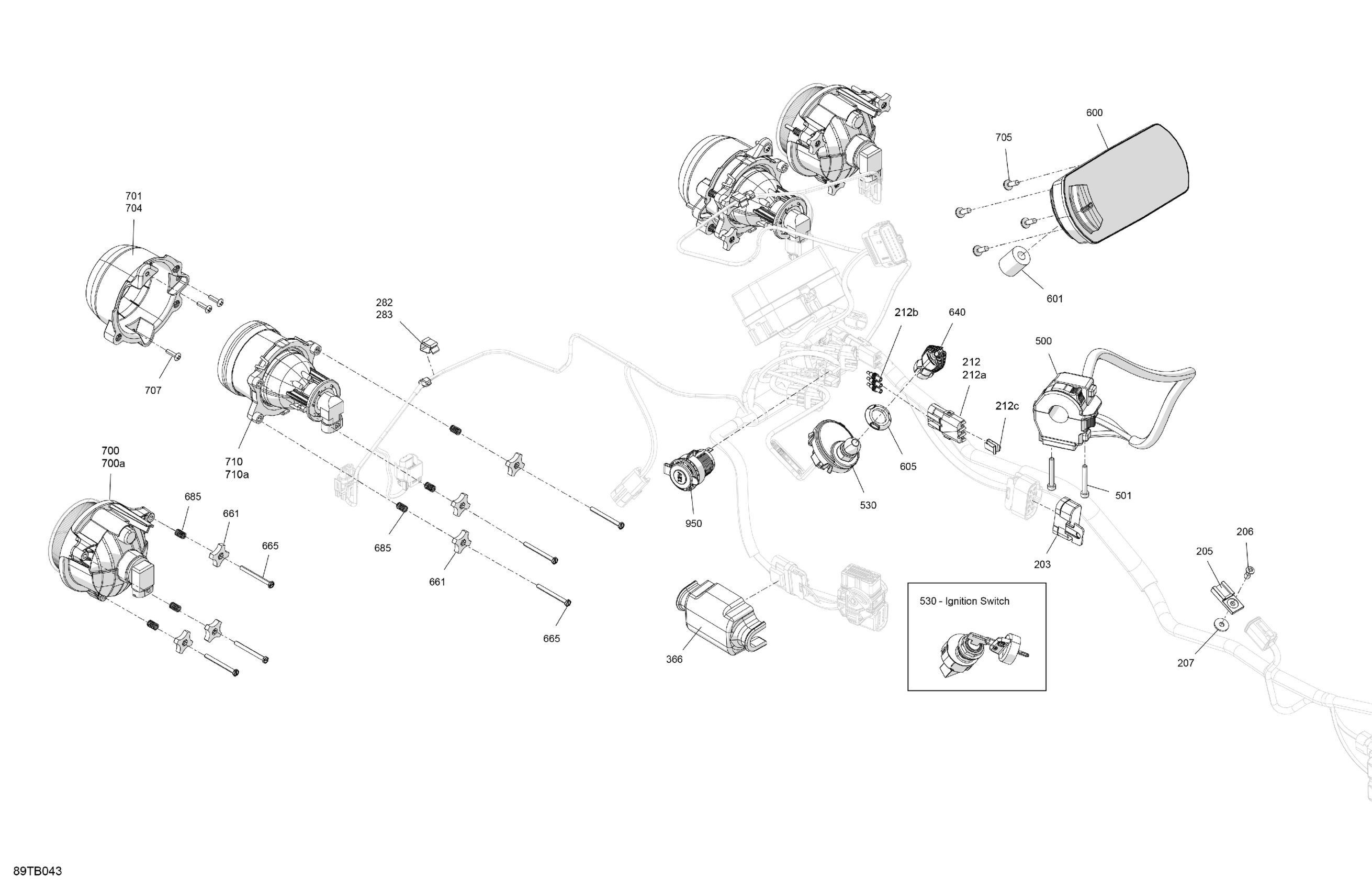

Can-Am 001 - Outlander 850 EFI - STD - North America, 2022 08- Electric - Front Section Diagram
#
Description
Price
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16 X ,551
293150301
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
282
Clip
710010204
Unavailable
283
Clip
710010204
Unavailable
366
Soft Protection Sleeve
710007255
Unavailable
500
Multi Fonction Control | Package STD
710006229
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
530
Ignition Switch | Except Model Pro, T3
710007864
Unavailable
600
Multifunction Gauge Compact Mono
710008108
Unavailable
601
Ferrite
415130224
Unavailable
605
Specialized Nut
278004274
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
661
Handle
572106600
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam | Includes 54 to 55
710006177
Unavailable
700a
Bulb 12V 55W
715900141
Unavailable
701
RH High Front Housing
710002291
Unavailable
704
LH High Front Housing
710002292
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
707
Phillips Screw K40 X 16
250000723
Unavailable
710
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
710a
Halogen Bulb
415129249
Unavailable
950
DC Outlet
710001248
Unavailable
