07- Body - Rear Section

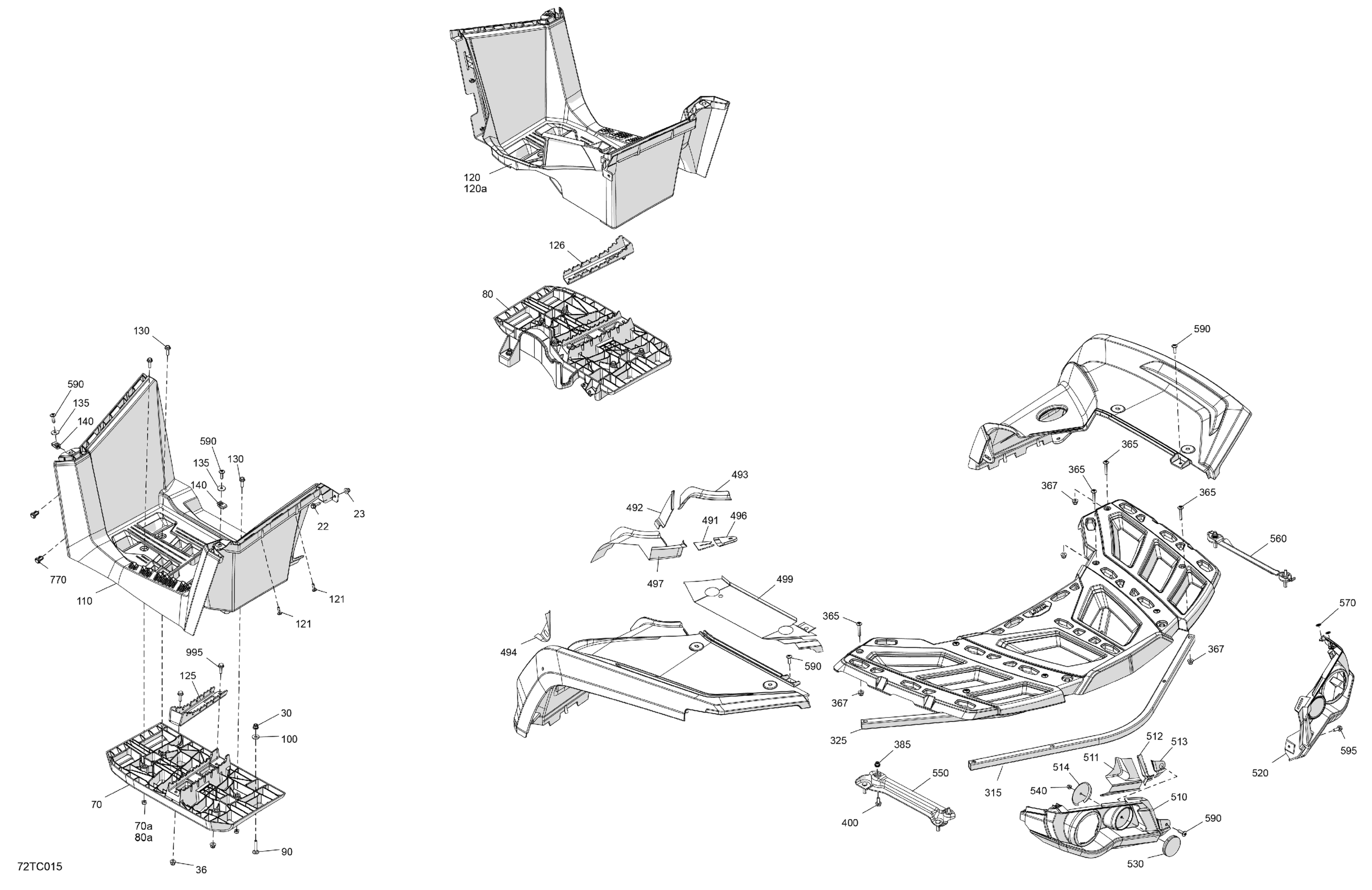

Can-Am 001 - Outlander 650 EFI - XMR - Nothern Lichen (5EPB) - CE, 2023 07- Body - Rear Section Diagram
#
22
Hex. Flange Screw M6 X 20
207662054
Unavailable
23
Flange Elastic Nut M6
233261434
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
36
Flange Elastic Nut M6
233261434
Unavailable
70
LH Structural Footboard
705011540
Unavailable
70a
Square Nut M6
232862412
Unavailable
80
RH Structural Footboard
705011542
Unavailable
80a
Square Nut M6
232862412
Unavailable
90
Carriage Bolt M6 X 35
207763554
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
110
LH Footrest
705009810
Unavailable
120
RH Footrest
705009811
Unavailable
120a
RH Footrest
705008338
Unavailable
121
Torx Screw K50 X 16
250000720
Unavailable
125
LH Footrest
705004352
Unavailable
126
RH Footrest
705005395
Unavailable
130
Hex. Flange Screw M6 X 20
207662054
Unavailable
135
Flat Washer
224061201
Unavailable
140
Panel Nut M6 X 1.0
250100198
Unavailable
315
Sectional Bent Tube
705016640
Unavailable
325
Sectional Bent Tube
705016641
Unavailable
365
Black, Torx Screw M6 X 35
250000646
Unavailable
367
Flange Elastic Nut M6
233261434
Unavailable
385
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
400
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
491
Heat Shield
707002456
Unavailable
492
Heat Shield
707002457
Unavailable
493
Heat Shield
707002458
Unavailable
494
Heat Shield
707002459
Unavailable
496
Heat Shield
707002461
Unavailable
497
Heat Shield
707002462
Unavailable
499
Heat Shield
707002464
Unavailable
510
LH Rear Facia | North America, International
705006643
Unavailable
511
Heat Shield
707002103
Unavailable
512
Heat Shield
707002107
Unavailable
513
Heat Shield
707002594
Unavailable
514
Heat Shield
707002465
Unavailable
520
RH Rear Facia | North America, International
705006650
Unavailable
530
Red, Reflector
705016982
Unavailable
540
Flange Elastic Nut M5
233251434
Unavailable
550
LH Support
705007277
Unavailable
560
RH Support
705007278
Unavailable
570
Push Nut
732610072
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
595
Hex. Flange Screw M6 X 16
207661654
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
995
Hex. Flange Screw M6 X 20
207662034
Unavailable
