08- Electric - Front Section

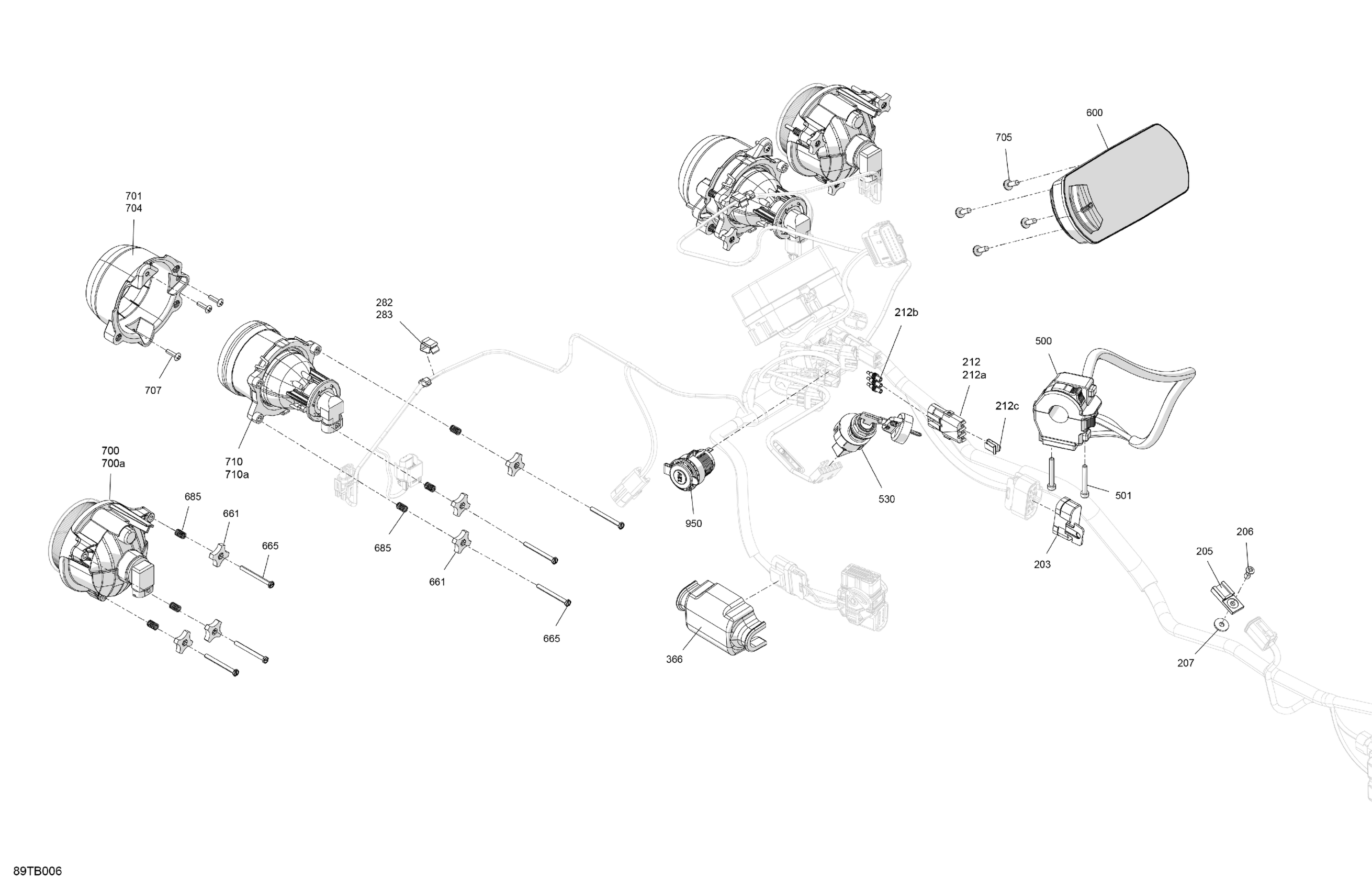

Can-Am 001 - Outlander 650 EFI - STD - North America, 2022 08- Electric - Front Section Diagram
#
Description
Price
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16 X ,551
293150301
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
282
Clip
710010204
Unavailable
283
Clip
710010204
Unavailable
366
Soft Protection Sleeve
710007255
Unavailable
500
Multifunction Switch
710008887
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Ignition Switch | Except Model Pro, T3
710007864
Unavailable
600
Multifunction Gauge Compact Mono
710008108
Unavailable
661
Handle
572106600
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam | Includes 54 to 55
710006177
Unavailable
700a
Bulb 12V 55W
715900141
Unavailable
701
RH High Front Housing
710002291
Unavailable
704
LH High Front Housing
710002292
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
707
Phillips Screw K40 X 16
250000723
Unavailable
710
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
710a
Halogen Bulb
415129249
Unavailable
950
DC Outlet
710001248
Unavailable
