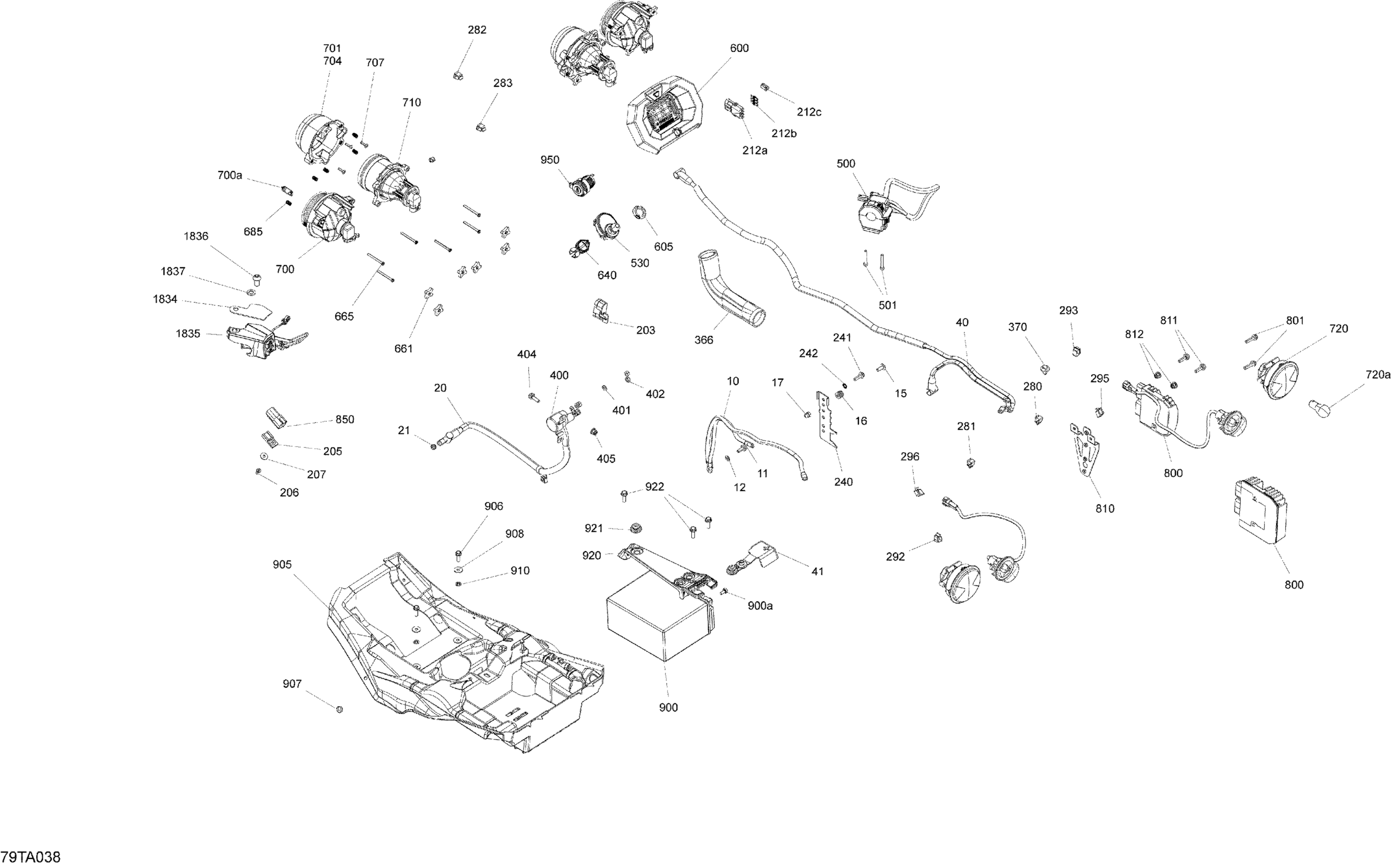

Can-Am Outlander 650 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561434

$1.55

40

Positive Cable

710004376

$46.12

41

Battery Cable Cap

710006729

$7.37

203

DPS Connector Cap | Not Shown

710005760

$15.22

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

292

Clip

414227300

$1.45

293

Clip

414227300

$1.45

295

Clip

414227300

$1.45

296

Clip

414227300

$1.45

366

Soft Protection Sleeve

710007255

$2.98

370

Mount Dart

293730040

$0.86

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561434

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$78.43

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Compact Gauge

710007407

$355.35

605

Safety Nut (DESS Switch)

278002963

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

705

Torx Screw K50 X 16

250000720

$1.39

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

720

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

720a

Bulb

520000758

$7.49

800

Voltage Regulator

710005842

$159.87

800

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

810

Rectifier Support

710001752

$7.11

811

Hex. Flange Screw M6 X 20

207662044

$1.66

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Housing

710003006

$7.24

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

910

Push Nut

732610072

$1.72

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

1834

Top Plate

715004008

$23.05

1835

Multifonction Housing Ass'y

710004990

$147.66

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.22

1837

Washer

503192496

$0.75
