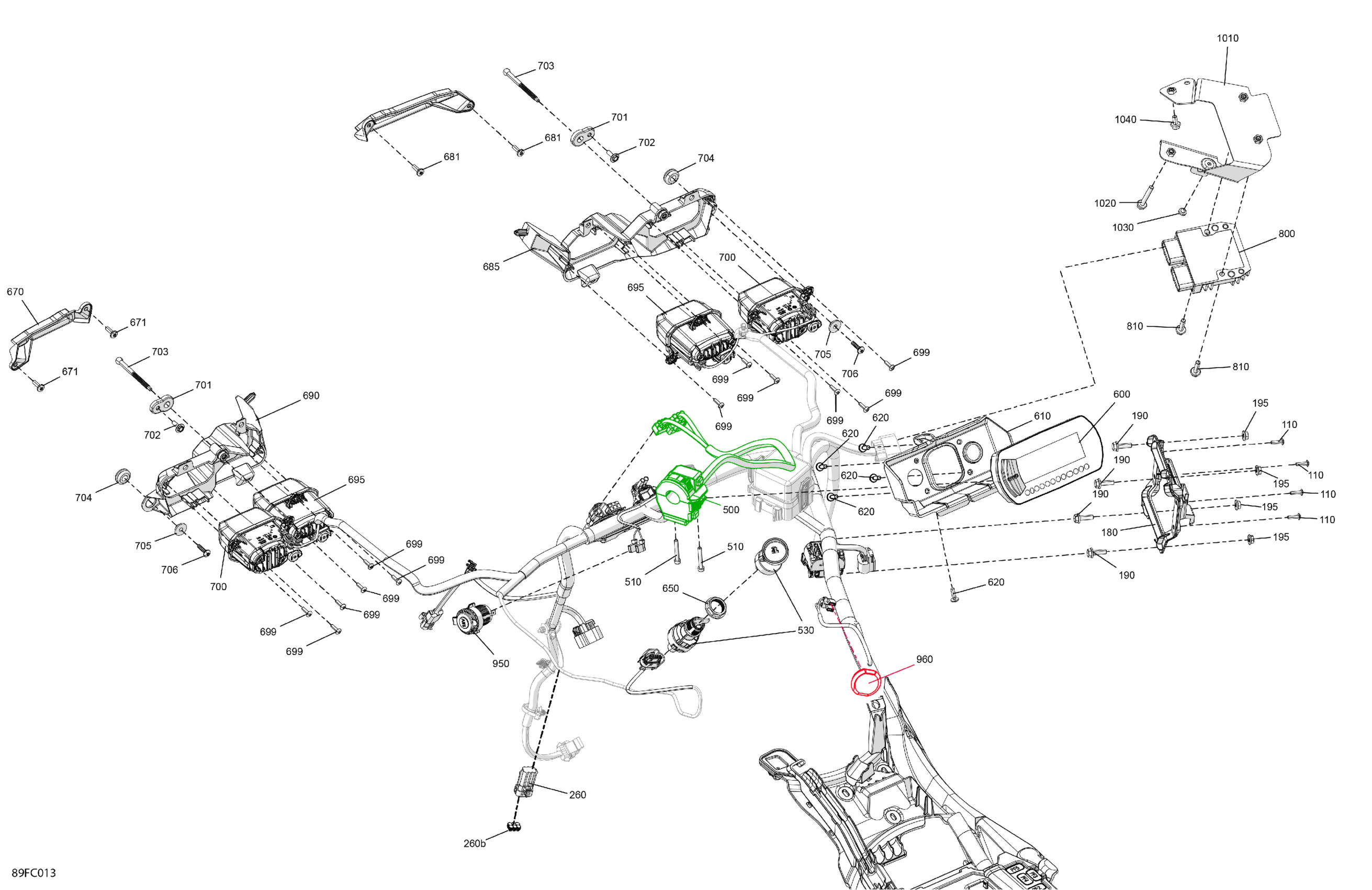

Can-Am Outlander 500 2X4 - 2023 Electric - Front Section Diagram

#

Description
Price

110

Torx-Truss Pt K40 X 16

250000759

$2.00

180

Muffler Support

710006328

$7.55

190

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

195

Hex. Flange Nut M6

233161414

$2.00

260

Connector Cap | Includes 260 to 260b

710009143

$8.42

260b

Plug

409013700

$4.28

500

Multifunction Switch

710008837

$74.60

510

Socket Head Screw M5 X 35

205053588

$1.79

530

Ignition Switch | Includes 530 to 530a

710008938

$58.93

535

Blank Ignition Key

715900934

$17.13

600

Multifunction Gauge Compact Mono

710008108

$364.90

610

Int Gauge Support

710007694

$5.48

620

Torx Screw K50 X 16

250000720

$1.60

650

Specialized Nut

710007923

$1.99

670

LH Cap

705015024

$9.91

671

Torx Screw K50 X 16

250000720

$1.60

681

Torx Screw K50 X 16

250000720

$1.60

685

RH Front Headlight Support

710008319

$39.52

690

LH Front Headlight Support

710008318

$39.52

695

HIgh Beam Light

710006910

$152.21

699

Torx-Truss Pt K40 X 16

250000759

$2.00

700

Low Beam Light

710008088

$152.21

701

Ball Socket

293900157

$7.88

702

Screw PT Type K-50 X 16

250000959

$2.00

703

Ajustment Screw

710005837

$5.90

704

Grommet

709000582

$4.25

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.60

800

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

810

Hex. Flange Screw M6 X 25

207562544

$1.60

950

DC Outlet

710001248

$35.79

960

Rubber Plug

710002858

$2.67

1010

Voltage Regulator Support

710006542

$15.64

1020

Hex. Flange Screw M6 X 40

207664044

$2.12

1030

Rubber Stopper

293830229

$6.57

1040

Hex. Flange Screw M6 X 12

207661244

$1.96
