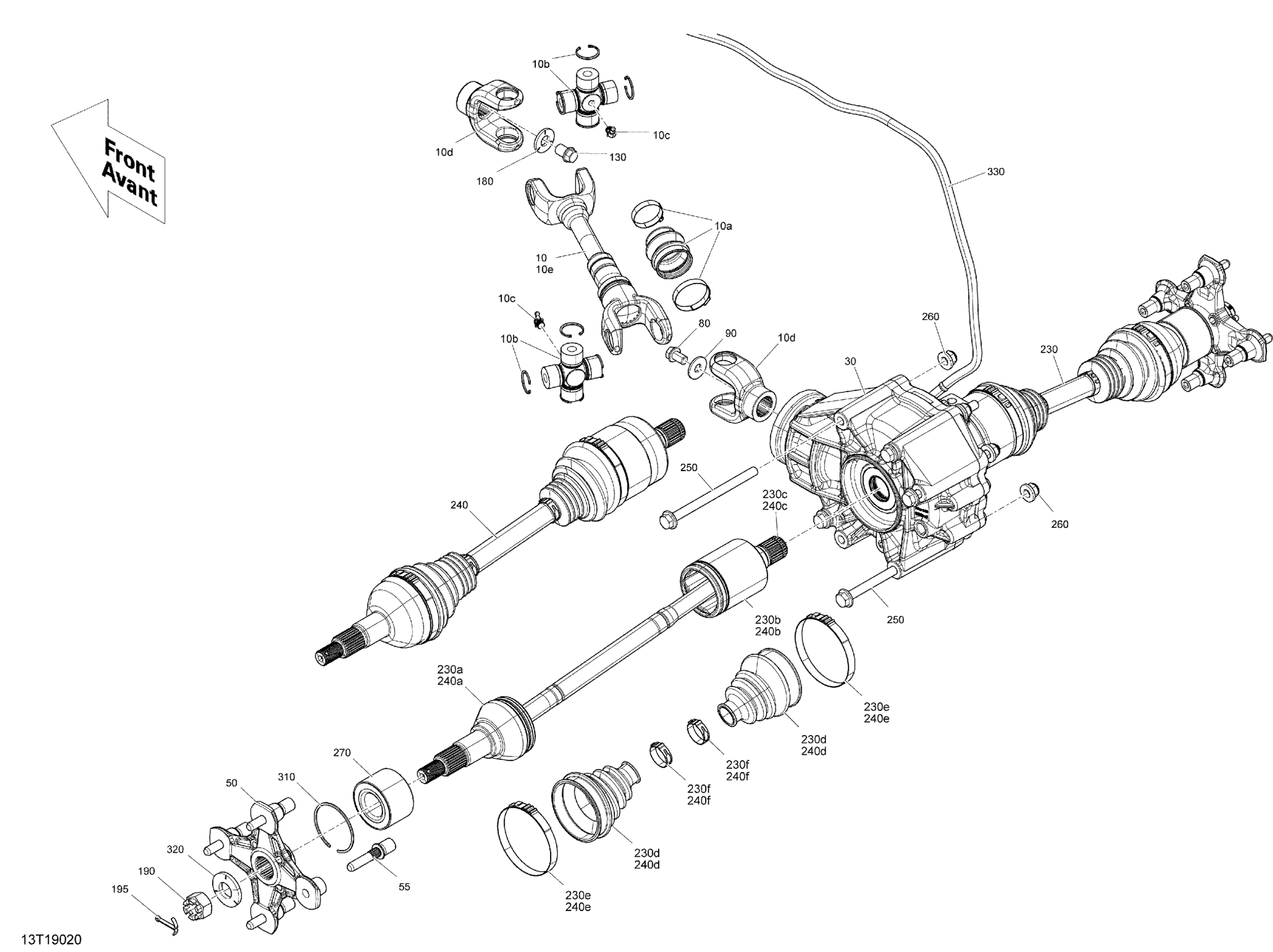

Can-Am Outlander 450 EFI - T3, 2019 Rear Drive - Outlander Diagram

#

Description
Price

10

Axle Drive | Includes 10 to 10e

705502725

$264.99

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Yoke | T3

715900500

$24.99

10e

Yoke

715900499

$24.99

30

Final Drive Unit

705502546

$1,144.99

50

Wheel Hub

705501900

$132.49

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$243.99

230a

CV Joint

705501776

$259.49

230b

Plunging Joint

715900604

$110.99

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230e

Oetiker Clamp, 82.1 mm

715900241

$10.33

230f

Oetiker Clamp, 27.3 mm

715900242

$10.33

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$6.50

240d

Boot Kit

705501864

$42.49

240e

Oetiker Clamp, 82.1 mm

715900241

$10.33

240f

Oetiker Clamp, 27.3 mm

715900242

$10.33

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
