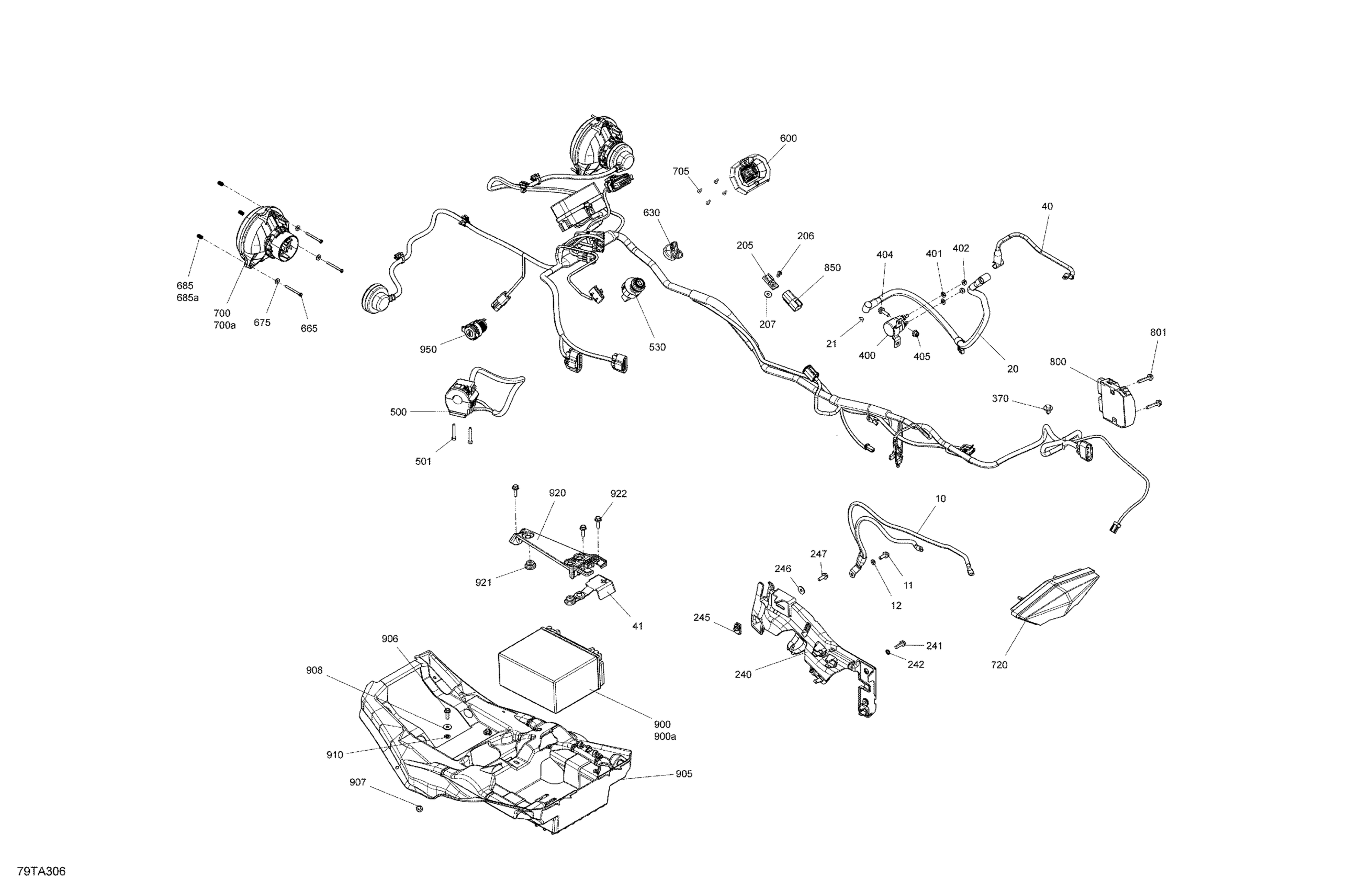

Can-Am Outlander 450 EFI - STD_XU - CE, 2021 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004380

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

20

Positive Cable | Engine 450

710004381

$17.88

21

Elastic Stop Nut M6

232561434

$1.78

40

Positive Cable

710004376

$43.25

41

Battery Cable Cap

710006729

$6.72

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

240

Cable Bracket

707001280

$11.81

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

245

Panel Nut M6 X 1.0

250100198

$1.99

246

Flat Washer 6 mm

234062410

$0.73

247

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

370

Mount Dart

293730040

$0.99

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561434

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Multi Fonction Control | Package STD

710006229

$63.40

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

600

Multifunction Compact Gauge

710007407

$335.04

605

Safety Nut (DESS Switch)

278002963

$3.12

630

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

665

Hex. Screw K40 X 45

250000718

$2.00

675

Flat Washer

517225900

$0.16

685

Spring

517168600

$6.70

685a

Spring

517168600

$6.70

700

Low Beam

710003900

$101.46

700

Low Beam

710003900

$101.46

700a

Bulb, 12V 35/35W

710000871

$32.06

705

Torx Screw K50 X 16

250000720

$1.60

720

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$69.37

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

850

Housing

710003006

$8.31

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

910

Push Nut

732610072

$1.97

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79
