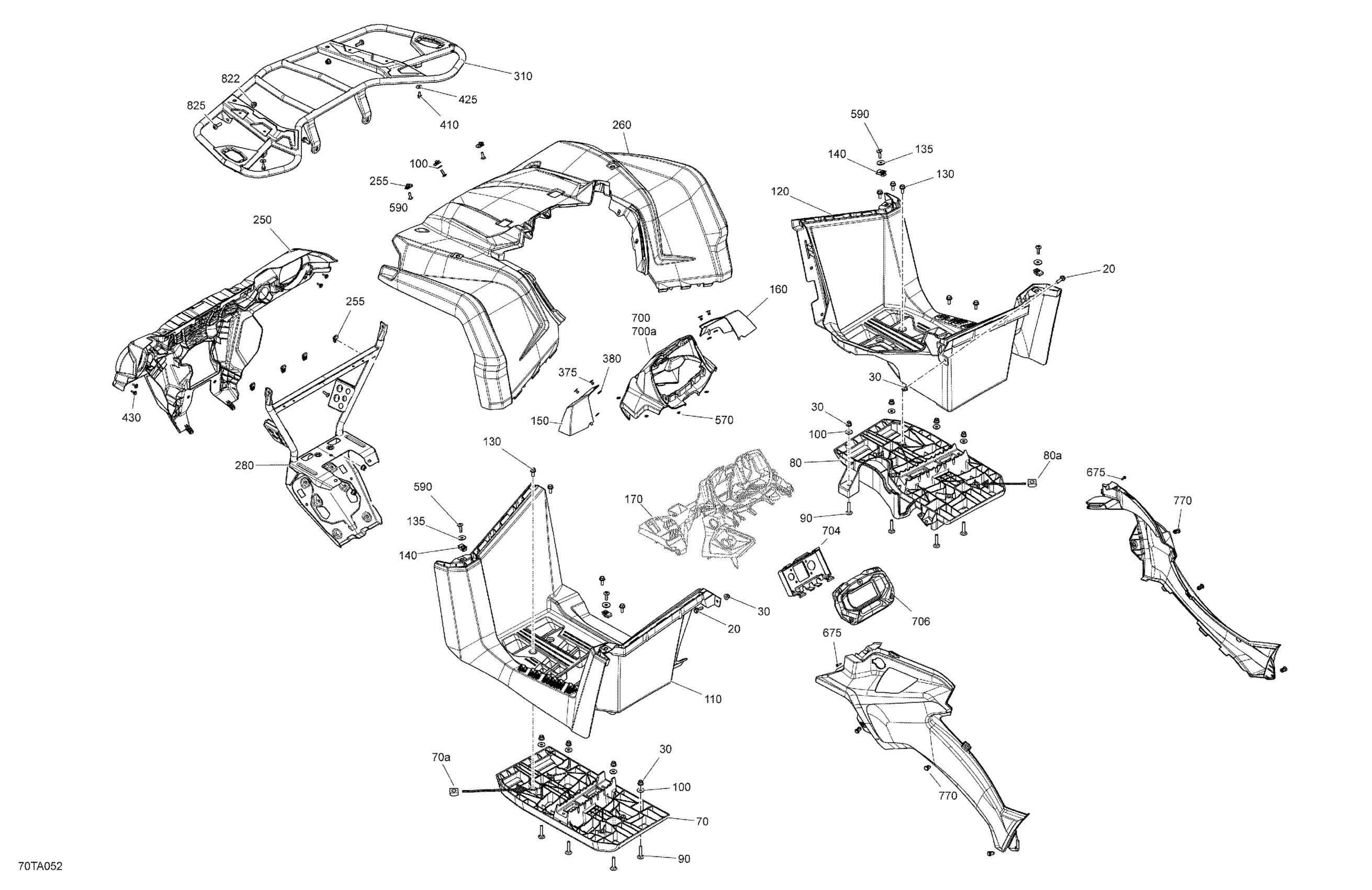

Can-Am Outlander 450 EFI - STD_XU - CE, 2021 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

30

Flange Elastic Nut M6

233261434

$4.15

70

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.36

80

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.36

90

Carriage Bolt M6 X 35

207763554

$1.96

100

Flat Washer 6 mm

234062410

$0.73

110

LH Step

705007040

$87.28

120

RH Footrest

705007723

$92.51

130

Hex. Flange Screw M6 X 20

207662054

$0.96

135

Flat Washer

224061201

$1.27

140

Panel Nut M6 X 1.0

250100198

$1.99

150

LH Air Deflector

705006134

$23.85

160

RH Air Deflector

705006135

$22.36

170

Console Support Ass'y | Model-Europe/International

715006101

$52.21

250

Front Facia | Model-North America, International

705009334

$108.18

255

Panel Nut M6 X 1.0

250100198

$1.99

260

Tundra Green, Front Fender Ass'y | Model Tundra Green

715007936

$184.30

280

Front Frame

705017337

$236.54

310

Black, Front Luggage Rack

705006887

$217.13

375

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

380

Washer

517124300

$0.18

410

Hex. Flange Screw M6 X 12

210261250

$1.79

425

Stainless Steel Flat Washer

234062670

$2.00

430

Screw M4 X 16

250000725

$3.30

570

Push Nut

732610072

$1.97

590

Torx Screw M6 X 20

250000722

$1.54

675

Phillips Screw K40 X 16

250000723

$0.93

700

Gauge Support

705013983

$40.27

700a

Gauge Support

705013984

$17.88

700

Gauge Support

705013984

$17.88

703

Extruded Panel Nut M4 X 0.7

250100143

$7.78

704

Interior Gauge Support

705015548

$5.48

706

Gauge Trim

705015547

$20.12

708

Torx Head Screw M4 X 16

250000797

$1.87

770

Tuflok Plastic Rivet

293150230

$1.39

822

Elastic Flange Nut M8

233281464

$0.96

825

Pan Torx Screw M8 X 25

250000898

$2.00
