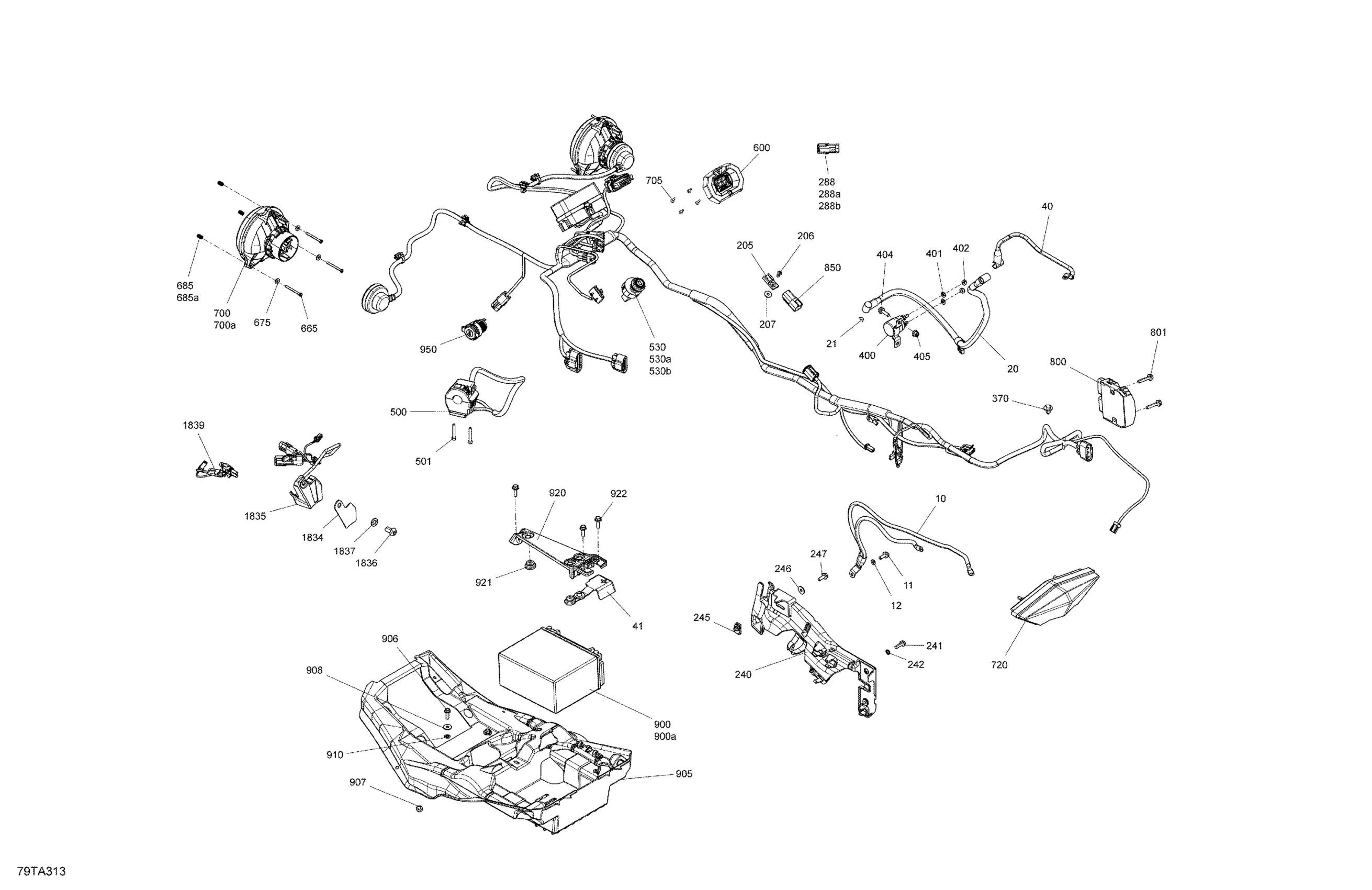

Can-Am Outlander 450 EFI - STD_DPS_Mossy Oak Edition - 2021 Electric - System Diagram

Ground Cable

710004380

$18.43

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Lock Washer Helical M6

234161601

$0.92

Positive Cable | Engine 450

710004381

$18.43

Elastic Stop Nut M6

232561434

$1.55

Positive Cable

710004376

$46.12

Battery Cable Cap

710006729

$7.37

Extension Cable 02 Sensor

710005819

$23.05

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Cable Bracket

707001280

$12.17

Hex. Flange Screw M6 X 20

210262040

$2.06

External Serrated Lock Washer 6 mm

234461608

$0.92

Panel Nut M6 X 1.0

250100198

$1.73

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Connector Ass'y

710001642

$9.22

Connector Ass'y

710001642

$9.22

Female Housing, 2 Circuits

278000217

$7.59

Wire Seal

278000216

$2.55

Mount Dart

293730040

$0.86

Starter Relay

710007777

$46.89

Lock Washer Helical M6

234161601

$0.92

Elastic Stop Nut M6

232561434

$1.55

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Multi-Function Handle | Except Model Europe, Except T3

710005072

$64.58

Socket Head Screw M5 X 35

205053588

$1.56

Ignition Switch | Except Model Pro, T3

710007864

$83.05

Ignition Switch | Except Model Pro, T3

710007864

$83.05

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Multifunction Compact Gauge

710007407

$355.35

Hex. Screw K40 X 45

250000718

$1.74

Flat Washer

517225900

$0.17

Spring

517168600

$6.91

Spring

517168600

$6.91

Low Beam

710003900

$106.12

Low Beam

710003900

$106.12

Bulb, 12V 35/35W

710000871

$32.28

Torx Screw K50 X 16

250000720

$1.39

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$73.82

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Housing

710003006

$7.24

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710008370

$46.12

Hexagonal Head Screw

210262050

$1.74

Rubber Bumper

293830005

$5.33

Stainless Steel Flat Washer

234062670

$1.74

Push Nut

732610072

$1.72

Retaining Plate

710009129

$7.60

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.83

DC Outlet

710001248

$31.17

Top Plate

715004008

$23.05

Top Plate

715004008

$23.05

Multifonction Housing Ass'y

710004990

$147.66

Multifonction Housing Ass'y

710004990

$147.66

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.22

Washer

503192496

$0.75

Cable

710004567

$13.98
