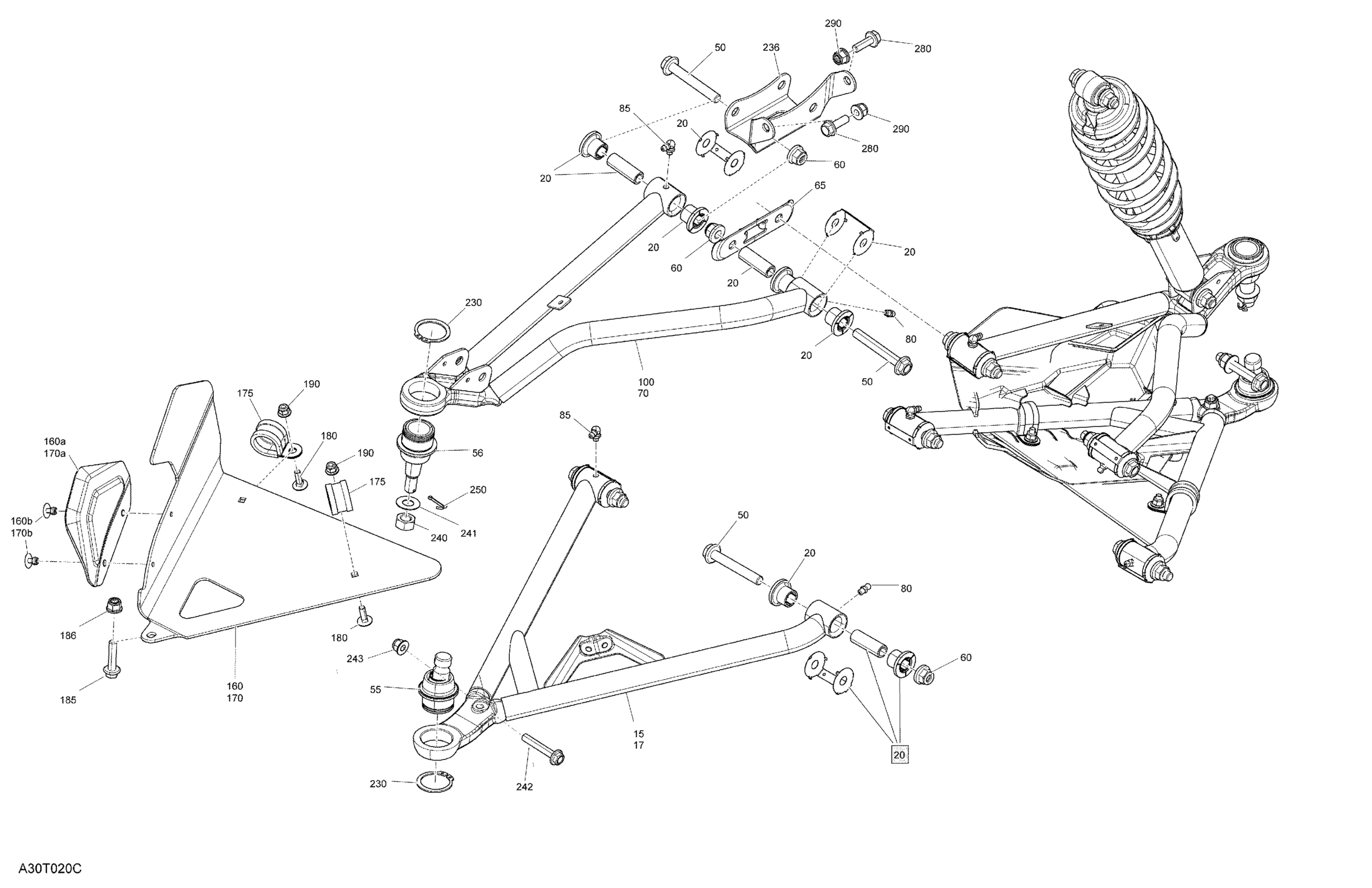

Can-Am Outlander 450 EFI - STD_DPS_Mossy Oak Edition - 2021 Suspension - Front - Mossy Oak Edition Diagram

LH Lower Suspension Arm

706204639

$147.73

Black, RH Lower Arm

706202870

$147.73

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Hex. Flange Screw M10 X 70

207607046

$2.82

Ball Joint

706202045

$34.30

Ball Joint

706202044

$34.30

Hex. Flange Elastic Nut M10

233201436

$2.00

Front Suspension Cross Plate

706200998

$4.76

RH Upper Suspension Arm

706204642

$147.73

Grease Fitting

408200700

$3.21

Grease Fitting 90°

293550056

$1.04

LH Upper Suspension Arm

706204641

$147.73

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

RH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201186

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

LH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201185

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Hose Anchor

709200036

$10.51

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Hex. Flange Screw M8 X 35

207683544

$1.60

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Elastic Nut M6

233261494

$1.45

Hex. Flange Elastic Nut M6

233261494

$1.45

Circlip

293370035

$2.48

Upper Front Holder

705203247

$13.09

Nut M12

250100099

$1.88

Hardened Washer

706200281

$2.69

Hex. Flange Screw M10 X 60

207606044

$3.19

Hex. Flange Elastic Nut M10

233201434

$1.87

Cotter Pin

211400017

$0.28

Hex. Flange Screw M8 X 25

207682534

$1.03

Hex. Flange Elastic Nut M8

233281414

$1.31
