08- Rear Drive - Common Parts

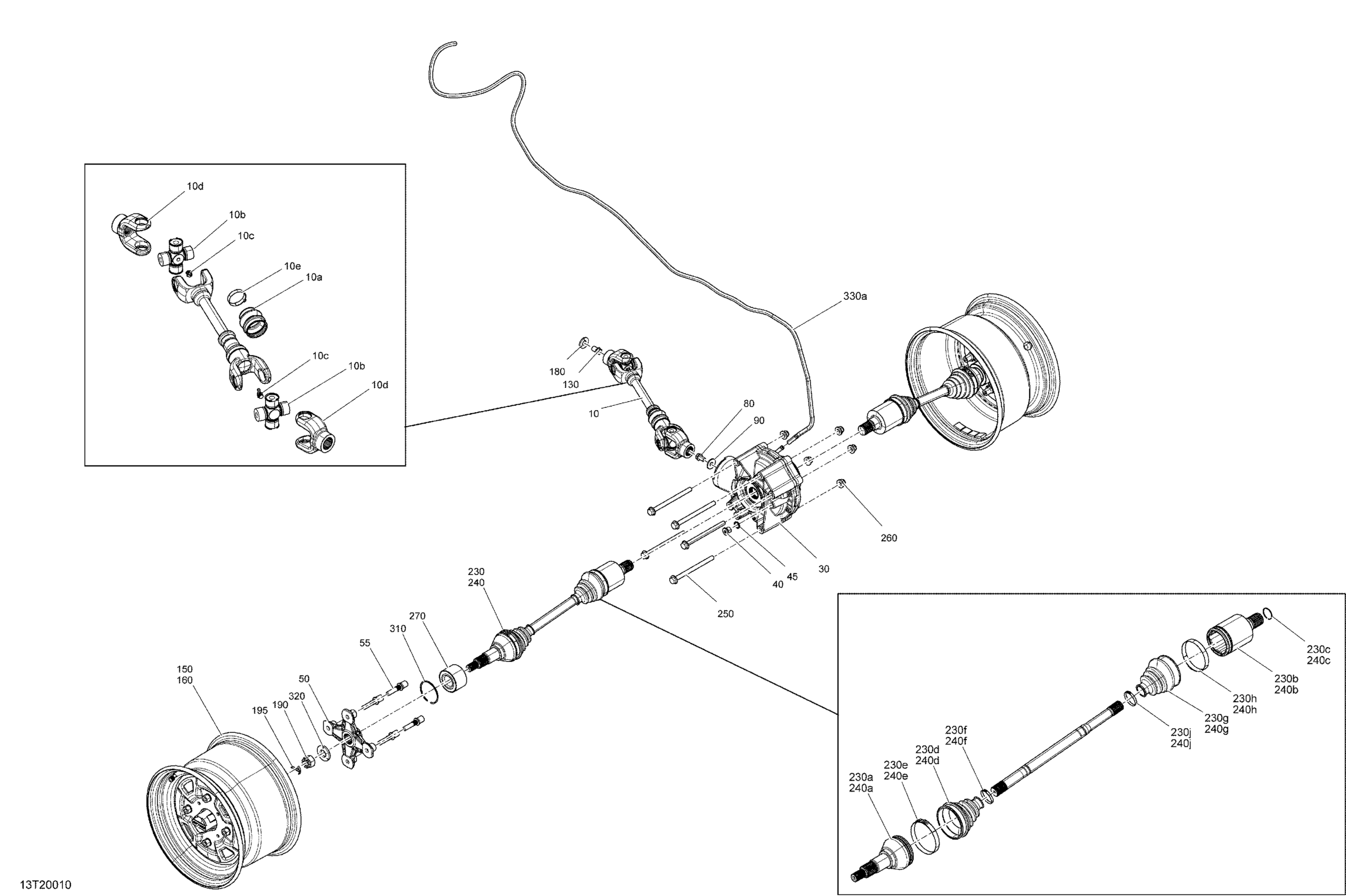

Can-Am 001 - Outlander 450 EFI - North America, 2020 08- Rear Drive - Common Parts Diagram
#
10
Rear Propeller Shaft Ass'y Kit
703500932
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
Universal Joint Ass'y | T3
703500846
Unavailable
10c
Grease Fitting | T3
715900295
Unavailable
10d
Fixe Yoke
715900439
Unavailable
10e
Wear Ring | 4X4
705400036
Unavailable
30
Final Drive Unit | Includes 30 to 30u
703501019
Unavailable
40
Fill Level Plug | 4X4
705500504
Unavailable
45
Copper Washer | 4X4
705500506
Unavailable
50
Wheel Hub Ass'y
705501716
Unavailable
55
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
90
Flat Washer M10 | 4X4
250200014
Unavailable
130
Hex Flange Screw M12 X 16
250001039
Unavailable
150
Not Available As Spare Part - Friction Washer
Unavailable
160
Not Available As Spare Part - Friction Washer
Unavailable
180
Conical Spring Washer M12
250200005
Unavailable
190
Hex. Flange Castellated Nut M18
232291413
Unavailable
195
Cotter Pin
250400071
Unavailable
230
RH Half Shaft Ass'y
705501897
Unavailable
230a
CV Joint
705401344
Unavailable
230b
Plunging Joint
715900304
Unavailable
230c
Circlip
705501781
Unavailable
230d
Boot Kit, Wheel Side
705401345
Unavailable
230e
Oetiker Clamp
715900282
Unavailable
230f
Oetiker Clamp, Small
715900283
Unavailable
230g
Boot Kit, Differential Side
705401346
Unavailable
230h
Oetiker Clamp, Large
715900284
Unavailable
230j
Oetiker Clamp, Small
715900261
Unavailable
240
LH Half Shaft Ass'y
705501898
Unavailable
240a
CV Joint
705401344
Unavailable
240b
Plunging Joint
715900304
Unavailable
240c
Circlip
705501781
Unavailable
240d
Boot Kit, Wheel Side
705401345
Unavailable
240e
Oetiker Clamp
715900282
Unavailable
240f
Oetiker Clamp, Small
715900283
Unavailable
240g
Boot Kit, Differential Side
705401346
Unavailable
240h
Oetiker Clamp, Large
715900284
Unavailable
240j
Oetiker Clamp, Small
715900261
Unavailable
250
Hex. Flange Screw M10 X 135
250001041
Unavailable
260
Hex. Flange Elastic Nut M10
233201436
Unavailable
270
Ball Bearing
293350150
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M18
250200171
Unavailable
330a
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
