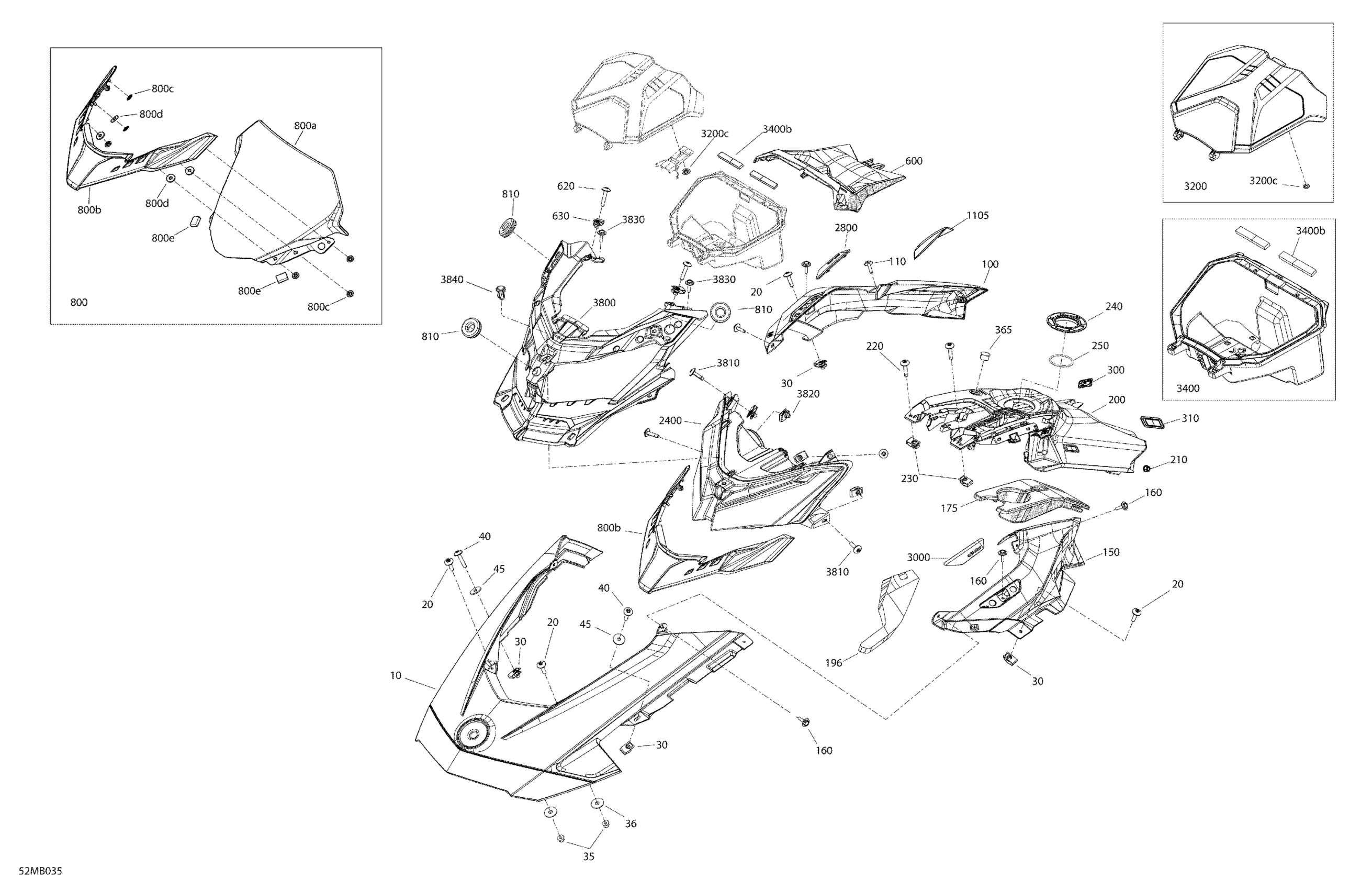

Ski-Doo MXZ 600 EFI - SPORT - 2022 Body - Hood Diagram

#

Description
Price

10

Catalyst Gray, Front Hood

517307394

$180.57

20

Torx Screw M5 X 20

250000528

$2.00

30

Panel Nut M5 X 0.8

250000958

$4.00

35

Hex. Flange Nut M5

233151414

$0.52

36

Flat Washer

250200040

$1.76

40

Torx Screw M5 X 26

250000587

$4.15

45

Washer

250200166

$2.00

100

RH Hood

517307396

$184.30

110

Screw M4 X 16

250000725

$3.30

150

LH Hood

517307395

$184.30

160

Screw M4 X 16

250000725

$3.30

175

Console Pad

517307744

$14.90

196

LH Hood Foam

517306002

$11.19

200

Rear Console

517307686

$190.27

210

Flange Elastic Nut M5

233251434

$1.91

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

240

Console Nut

517306602

$10.88

250

O-Ring

706002839

$0.96

300

RH Cap

517306587

$1.27

310

LH Cap

517306588

$1.27

365

Cap

572051500

$5.22

600

Gauge Support

517308510

$34.30

620

Torx Truss M5 X 20

250000586

$4.15

630

Panel Nut M5 X 0.8

250000958

$4.00

800

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$148.48

800a

Windshield 360

517306423

$158.93

800b

Deep Black, Windshield Support

517305749

$30.57

800c

Push Nut

732610072

$1.97

800d

Rubber Washer 5 mm

250200024

$2.03

800e

Gasket, Neoprene 2000Mm Long

219704476

$14.51

810

Grommet

517303756

$3.61

1105

Heat Shield

517307667

$1.99

2400

Headlamp | Includes 2400 to 2400a

517305752

$412.66

2400a

Bulb

415130081

$38.78

2800

RH Hood Plate

517306049

$11.19

3000

LH Hood Plate

517306050

$11.19

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

3200c

Push Nut

732610072

$1.97

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

3400b

Seal Joint

517305157

$2.21

3800

Deep Black, Headlamp Fairing

517305746

$58.18

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00

3830

Screw M4 X 16

250000725

$3.30

3840

Tuflok Plastic Rivet

293150230

$1.39
