Description

Price

10

Full Moon, Tunnel Chassis Module 129 | Includes 10 to 10aw

518333158

Unavailable

10c

Clinch Stud M6 X 20

250300027

$2.09

10d

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10e

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

RH Rear Suspension Support

518330195

$19.99

10j

LH Rear Suspension Support

518330194

$19.99

10k

Stirrup Reinforcement

518331253

$21.99

10m

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10n

LH Under Chassis Reinforcement

518331744

$18.99

10p

RH Under Chassis Reinforcement

518331745

$19.99

10q

RH Roller

518328451

$194.99

10r

LH Roller

518328452

$194.99

10y

Radiator Tunnel 129 Ass'y

518334487

$739.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10ac

Rear Cap

518328990

$22.49

10ae

RH Footrest

518328460

$44.99

10aj

LH Footrest

518333007

$40.99

10aq

Avex Rivet

390909100

$0.30

10as

Avex Rivet

390909200

$0.30

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Conical Spring Washer M8

250200146

$1.01

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100j

518332947

Unavailable

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100a1

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b1

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100e

Bottom Plate

518332716

$36.99

100f

Avex Rivet

390909100

$0.30

100g

Insert M5 X 0.8

293450268

$2.09

100h

Hex. Flange Screw M6 X 20

207662046

$2.11

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hex. Flange Screw M6 X 20

207662044

$2.00

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

440

Ornit Rivet 6,5 X 14.5

293150266

$2.40

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900a

LH Rear Diagonal Cross Member

518333356

$119.99

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

910a

RH Rear Diagonal Cross Member

518332559

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$111.99

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

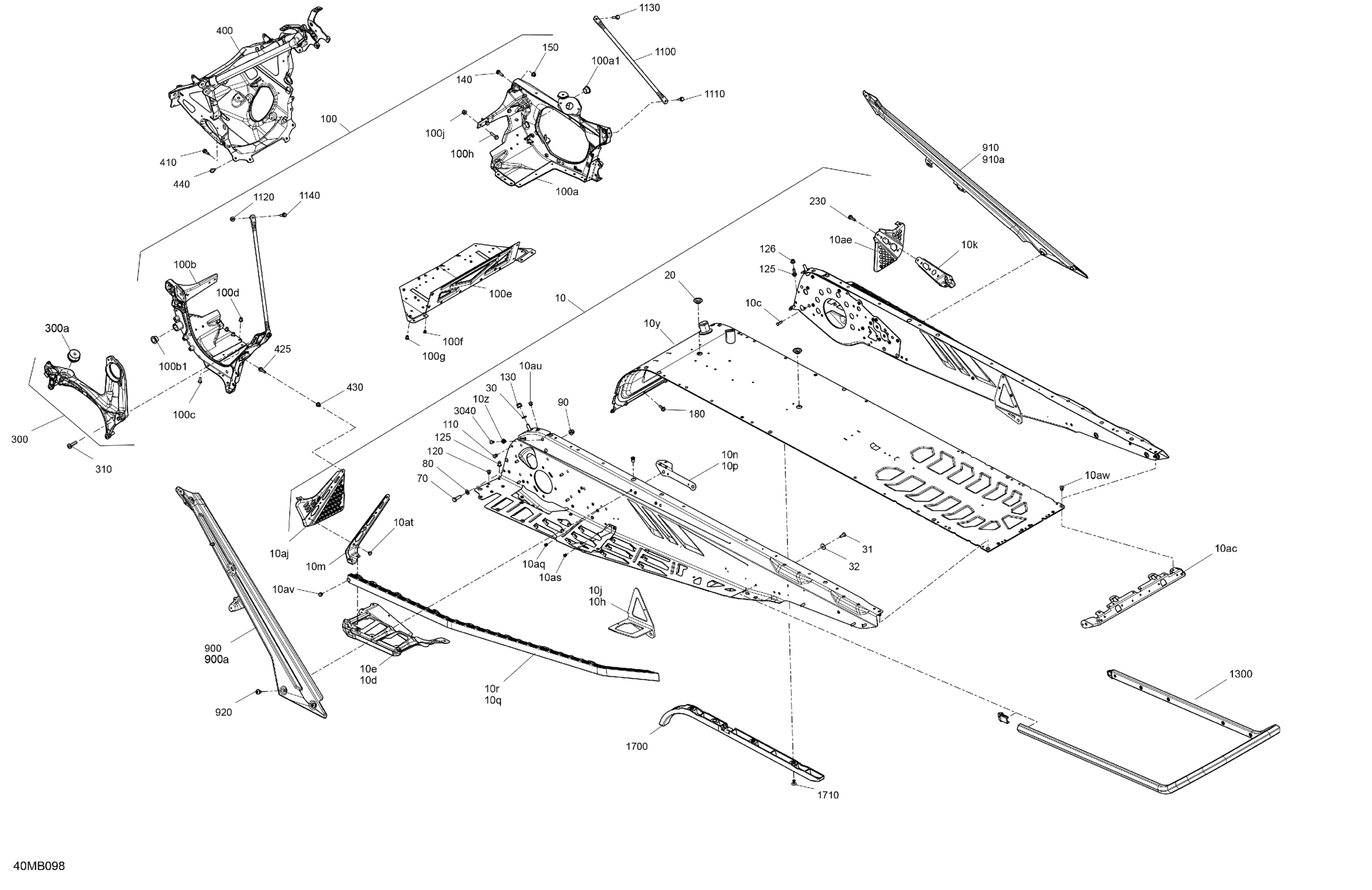

Ski-Doo 001 - MXZ 600 EFI - SPORT - Europe, 2022 06- Frame - System Diagram

Full Moon, Tunnel Chassis Module 129 | Includes 10 to 10aw

Clinch Stud M6 X 20

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

LH Under Chassis Reinforcement

RH Under Chassis Reinforcement

RH Roller

LH Roller

Radiator Tunnel 129 Ass'y

Clinch Nut M6 Hexsert

Rear Cap

RH Footrest

LH Footrest

Avex Rivet

Avex Rivet

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.4 mm

Ornit Rivet 6,5 X 14.5

Black, Plug

Conical Spring Washer M8

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Hex Screw M8 X 30

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Engine Chassis Module Ass'y | Includes 100 to 100j

RH Member Ass'y | Includes 100a to 100a3

Leg Bushing

LH Side Member Ass'y | Includes 100b to 100b2

Leg Bushing

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Bottom Plate

Avex Rivet

Insert M5 X 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Ornit Rivet 6,5 X 14.5

Hemlock Rivet, 6.4 mm

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

LH Side Member Ass'y | Includes 300 to 300a

Vibration Damper

Screw-Pan HD.Torx M8X30

Chassis Suspension Module

Screw-Forming Hex.HD.FL. M6 X 16

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Ornit Rivet 6,5 X 14.5

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

LH Rear Diagonal Cross Member

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

RH Rear Diagonal Cross Member

Pan Head Torx Screw M8 X 12

Upper Colomn Support

Hex. Flange Screw M6 X 16, Scotch Grip

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 20

Rear Bumper | Includes 1300 to 1300b

Front Protector

Pop Rivet 3/16”

Dart
