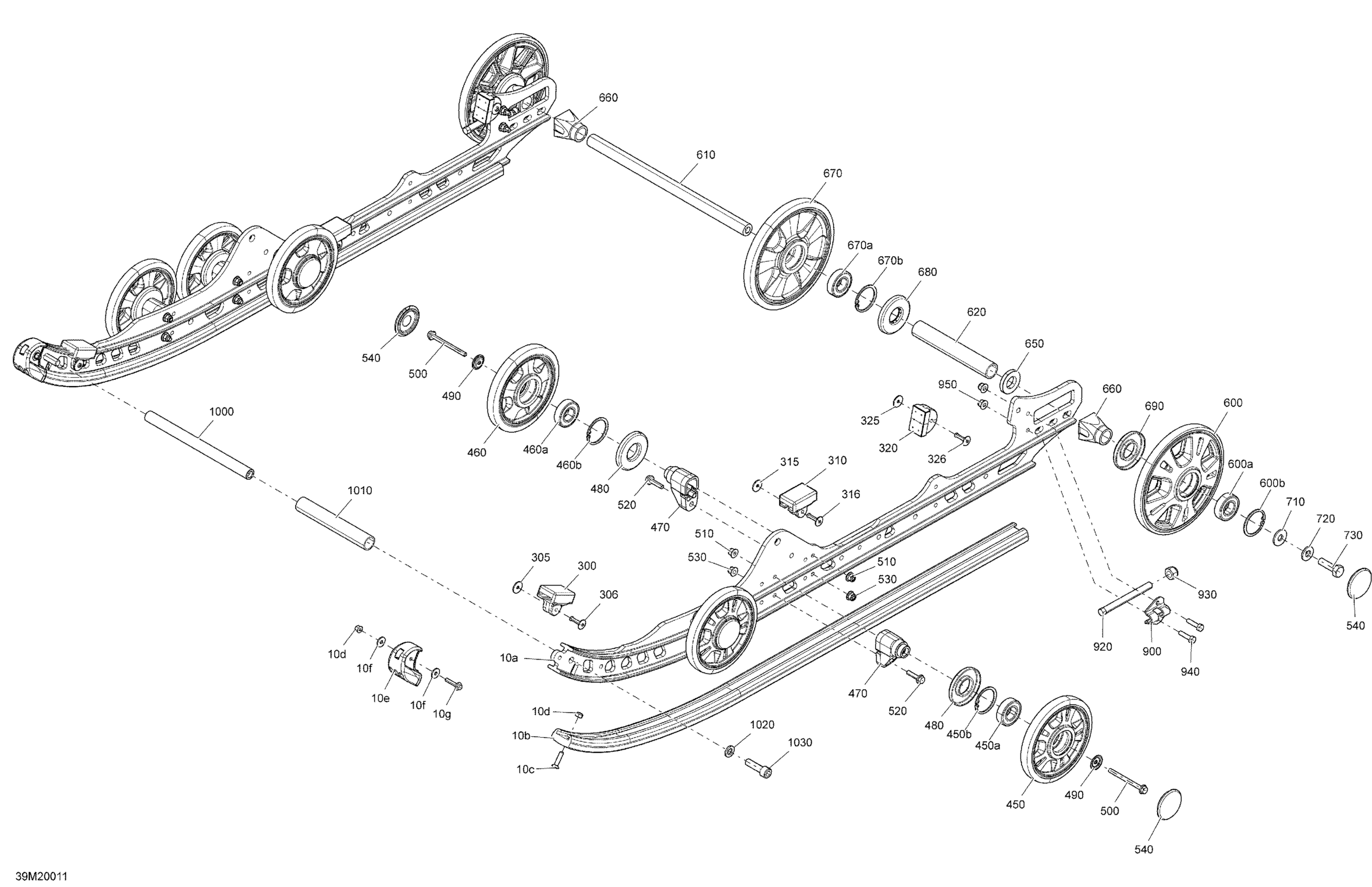

Ski-Doo MXZ 600 CARB - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

10a

Suspension Rail 120

503196633

$217.13

10b

Black Slider Shoe 120"

503191301

$26.84

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561414

$1.78

10e

Runner Protector

503191137

$9.90

10f

Washer

250200140

$0.96

10g

Hex. Flange Screw M5 X 25

207652544

$0.48

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310

Rubber Stopper

503190576

$9.93

315

Washer

503191273

$1.03

316

Pop Rivet 3/16

293150224

$0.96

320

Rubber Stopper

503191291

$17.88

325

Washer

503191273

$1.03

326

Pop Rivet 3/16

293150224

$0.96

450

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

460

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

470

Casted Support

503193894

$12.37

480

Labyrinth Seal

503190434

$4.16

490

Wheel Cup M6

503191820

$4.52

500

Hex. Flange Screw M6 X 70

250000944

$4.15

510

Hex. Flange Elastic Nut M6

233261466

$1.91

520

Hex. Flange Screw M6 X 25

250000945

$4.15

530

Hex. Flange Elastic Nut M6

233261466

$1.91

540

Black, Wheel Cap

503192771

$2.21

600

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

600a

Ball Bearing | Package-STD

503190396

$8.18

600b

Retaining Ring

415129371

$8.66

610

Rear Axle

503190429

$58.18

620

Spacer

503196317

$14.90

650

Washer

503190432

$12.15

660

Rear Wheel Spacer

503190428

$5.88

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

680

Labyrinth Seal

503190682

$5.67

690

Labyrinth Seal

503190434

$4.16

710

Washer

503191910

$2.18

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

900

Tensioner

503192583

$5.67

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex Screw M6 X 25

250000619

$0.96

950

Hex. Flange Elastic Nut M6

233261466

$1.91

1000

Axle Strap

503191260

$28.33

1010

Spacer

503196943

$7.36

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09
