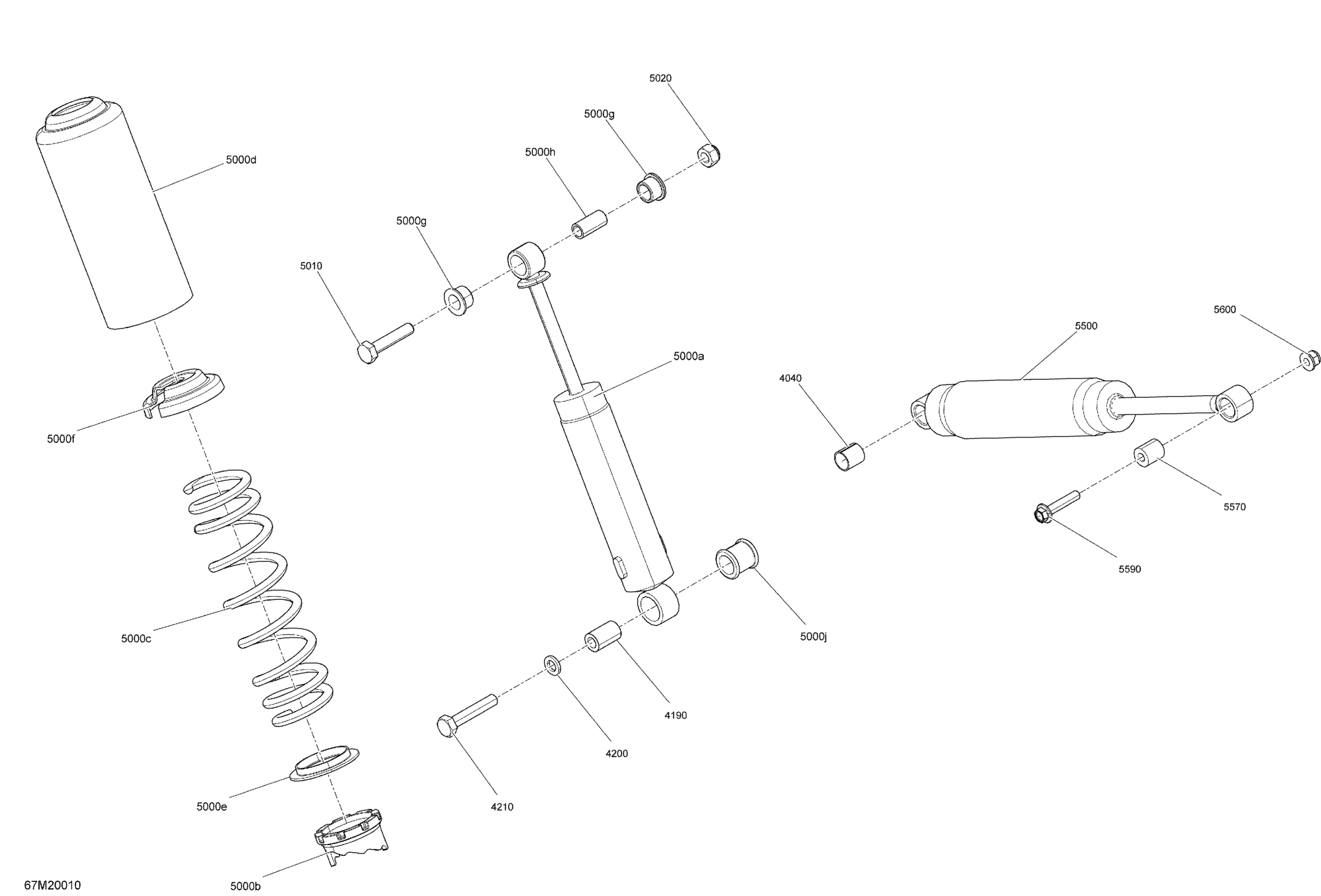

Ski-Doo MXZ 600 CARB - 2020 Suspension, Rear - Shocks Diagram

Description

Price

4040

Bushing

503191553

$5.54

4190

Central Shock Axle

503190604

$10.84

4200

Washer

503192496

$0.73

4210

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

5000a

Center Shock

503191590

$152.96

5000b

Adjustment Cam

505073625

$11.82

5000c

Black, Spring

503191329

$64.90

5000d

Protector

503193663

$34.30

5000e

Spring Guide

503191872

$2.12

5000f

Spring Stopper

706200881

$11.82

5000g

Urethane Bushing

503189117

$6.67

5000h

Bushing | Includes 240d to 240d1

503189282

$4.06

5000j

Bushing

503189271

$10.15

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5020

Elastic Locking Nut M10

233601466

$2.00

5500

Rear Shock

503191582

$152.96

5570

Bushing

414936000

$11.21

5590

Hex. Flange Screw M8 X 40

207684044

$1.43

5600

Elastic Flange Nut M8

233281466

$0.96
