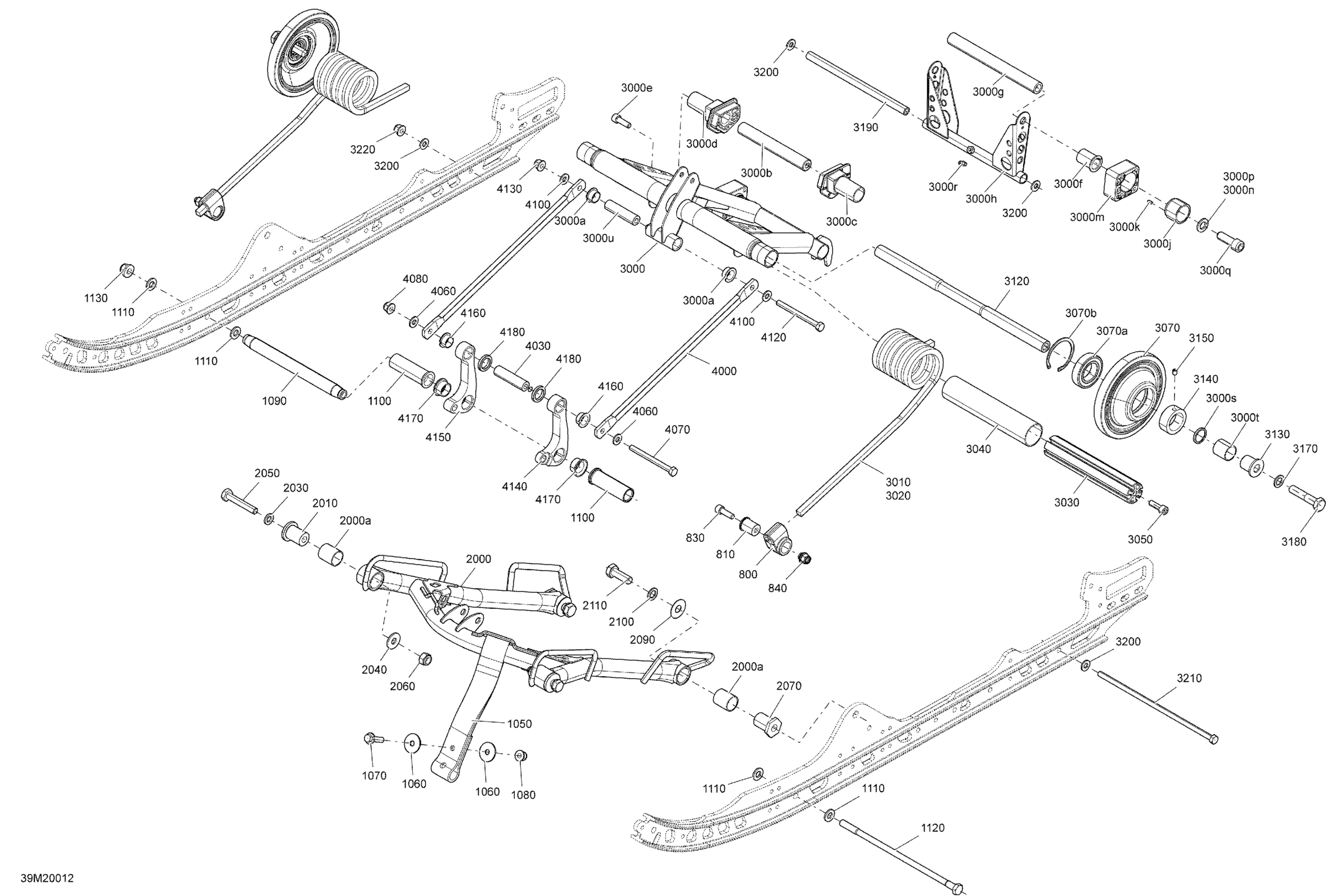

Ski-Doo MXZ 600 CARB - 2020 Suspension, Rear - Lower Section Diagram

#

Description
Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

1050

Stopper Strap

503192360

$19.97

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1080

Elastic Flange Nut M8

233281466

$0.83

1090

Center Shaft

503191764

$64.58

1100

Center Bushing

503191351

Unavailable

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

2000

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$447.66

2000a

Bushing

503191554

$5.88

2010

Axle

503190698

$17.66

2030

Washer

503192496

$0.75

2040

Washer

503191926

$1.57

2050

Hex. Cap Screw M10 X 60

207006056

$6.18

2060

Elastic Locking Nut M10

233601466

$1.74

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2100

Washer

503192491

$4.38

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$226.12

3000a

Hexagonal Nut M6

232061404

$0.32

3000b

Swivel Bushing

503191555

$5.71

3000c

Spring Cam Axe

503191178

$27.66

3000d

LH Spring Cam

503191191

$13.88

3000e

RH Spring Cam

503191190

$13.78

3000f

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

3000g

Cushion

503191640

$5.71

3000h

Lower Shaft

503192330

$46.12

3000j

Pivot Arm

503191302

$118.43

3000k

Block Guide

503189488

$37.66

3000m

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

3000n

LH Block, 4 Positions

503192301

$24.58

3000p

RH Block, 4 Positions

503192300

$24.58

3000q

Washer | 7415/7416. 7417/7418.

503189148

$2.72

3000r

Socket Head Screw M12 X 35

205523554

$4.28

3000s

Grease Fitting

408200700

$2.80

3000t

Washer

503191774

$2.25

3000u

Bushing

503191773

$13.60

3010

Black LH Spring, Square

503191613

$59.97

3020

Black RH Spring, Square

503191612

$59.97

3030

Spring Axle

503191344

$34.58

3040

Plastic Bushing

503191345

$6.89

3050

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

3070

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$36.12

3070a

Ball Bearing

503191778

$11.46

3070b

Retaining Ring

415129598

$8.92

3120

Upper Shaft

503191776

$46.12

3130

Bushing

503191775

$15.26

3140

Retaining Ring

503191782

$13.95

3150

Socket Set Screw M6 X 8

206260844

$1.25

3170

Washer

503192491

$4.38

3180

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.52

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Link Rod

503191802

$27.66

4030

Axle Bar (Long)

503190643

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4100

Washer

503192494

$3.11

4120

Screw M8 X 90

503193372

$4.28

4130

Elastic Flange Nut M8

233281466

$0.83

4140

LH Rocker Arm

503191890

$61.51

4150

RH Rocker Arm

503191894

$61.51

4160

Swivel Bushing

503191555

$5.71

4170

Bushing

503191552

$5.71

4180

Plastic Spacer

503190694

$2.05
