- MXZ 600 CARB - 2020
Cooling - System

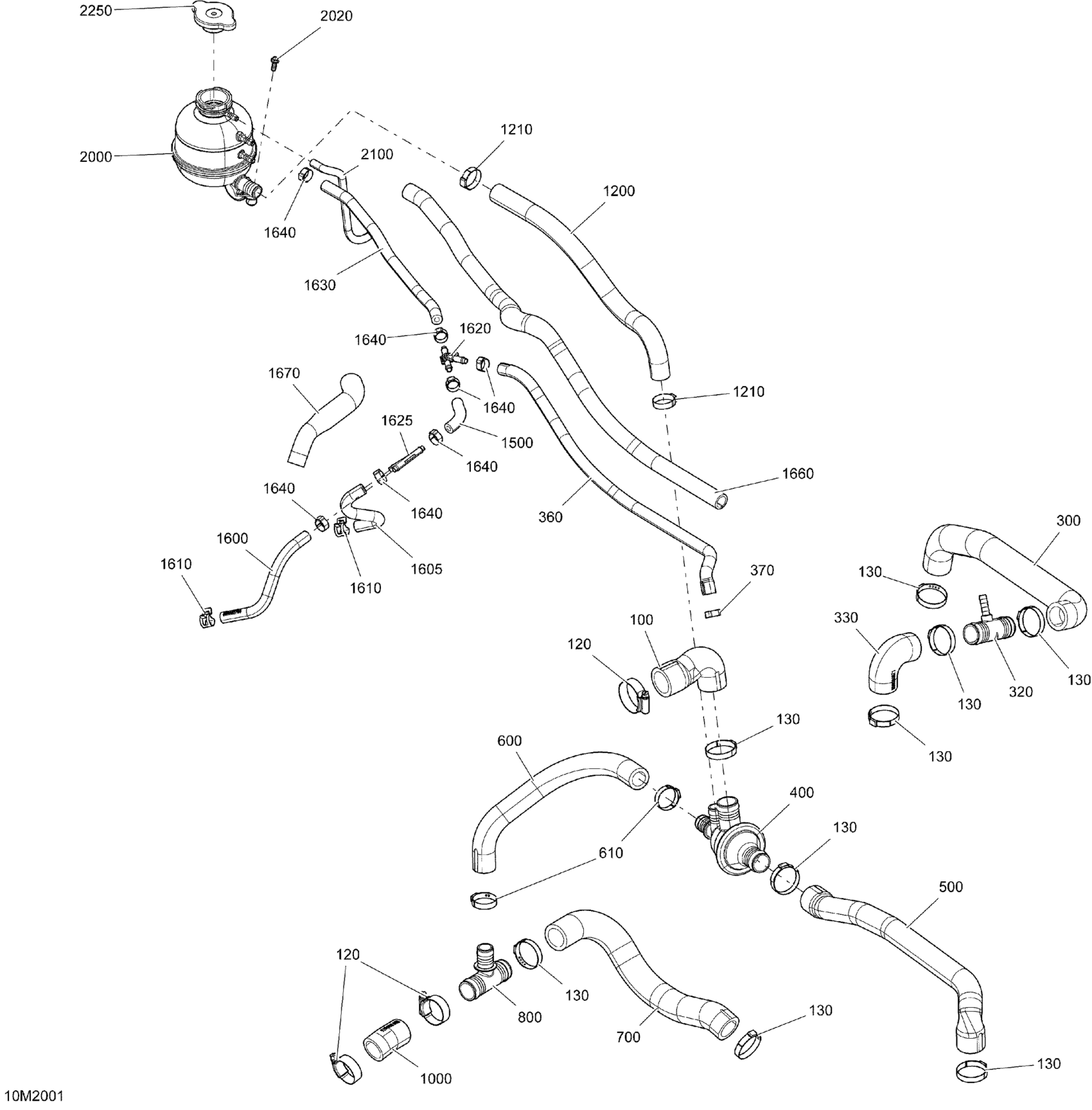

Ski-Doo MXZ 600 CARB - 2020 Cooling - System Diagram
#
100
Engine Outlet Hose
509000678
Unavailable
120
Aba Gear Clamp, 26-38 MM
509000443
Unavailable
130
Oetiker Gear Clamp, 36.5-706R
509000529
Unavailable
300
Radiator Hose
509000670
Unavailable
310
Oetiker Gear Clamp, 36.5-706R
509000529
Unavailable
320
T-Fitting
509000510
Unavailable
330
Radiator Hose This part replaces 509000671.
509001066
Unavailable
340
Oetiker Gear Clamp, 36.5-706R
509000529
Unavailable
360
Bleeder Hose
509000502
Unavailable
370
Crimp Clamp, 15.3-706R
293650047
Unavailable
400
Thermostat Housing
509000499
Unavailable
500
Thermostat Outlet Hose
509000679
Unavailable
510
Oetiker Gear Clamp, 36.5-706R
509000529
Unavailable
600
Bypass Hose
509000672
Unavailable
610
Crimp Clamp
293650099
Unavailable
700
Radiator Hose
509000673
Unavailable
710
Oetiker Gear Clamp, 36.5-706R
509000529
Unavailable
800
T-Fitting
509000372
Unavailable
1000
Engine Inlet Hose This part replaces 509000675.
509001067
Unavailable
1010
Aba Gear Clamp, 26-38 MM
509000443
Unavailable
1020
Aba Gear Clamp, 26-38 MM
509000443
Unavailable
1200
Filling Hose
509000676
Unavailable
1210
Oeticker Gear Clamp, 25.6-706R
509000442
Unavailable
1500
Was 415129508 Bleeder Hose
219704416
Unavailable
1600
Bleeder Hose
509000769
Unavailable
1605
Bleeder Hose
509000768
Unavailable
1610
Spring Clamp
293650210
Unavailable
1620
Y-Fitting
293710140
Unavailable
1625
Y-Fitting
293710059
Unavailable
1630
Was 415129508 Bleeder Hose
219704416
Unavailable
1640
Oetiker Clamp
293650046
Unavailable
1660
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
1670
Protector Tube, 16 mm
513033231
Unavailable
2000
Coolant Tank
509000368
Unavailable
2020
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
2100
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
2250
Radiator Pressure Cap
509000180
Unavailable
