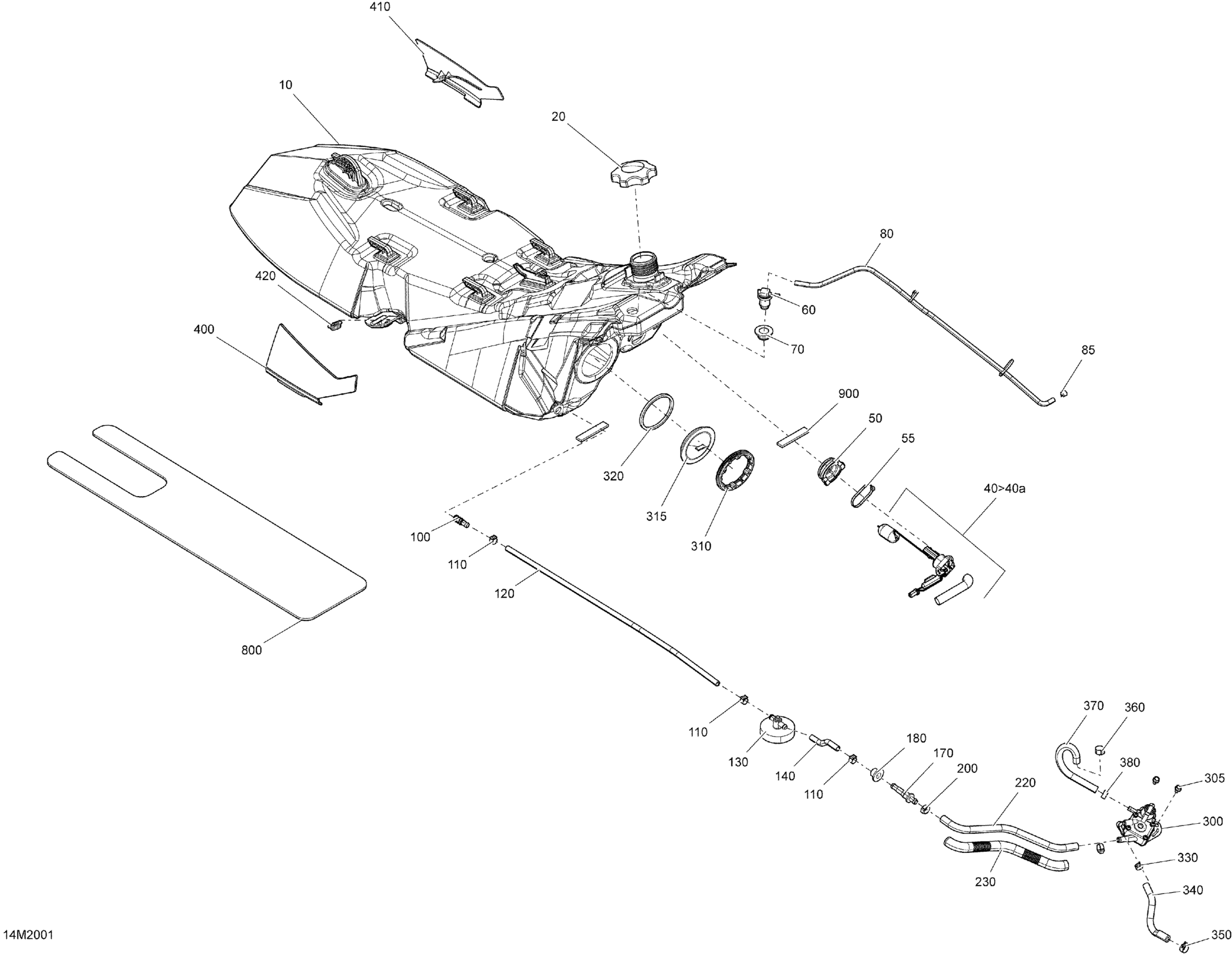

Ski-Doo MXZ 600 CARB - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513033695

$304.45

20

Fuel Tank Cap

513033860

$22.36

20

Fuel Tank Cap

513033942

$24.60

20

Fuel Tank Cap

513033943

$24.60

20

Fuel Tank Cap

513033969

$24.60

40

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

40a

Fuse, 0.5 Ampère

710001995

$7.25

50

Grommet

513033606

$17.88

55

Tie Wrap 368 mm

293750008

$0.97

60

Check Valve

513033842

$32.81

70

Grommet

513033596

$17.88

80

Polyurethane Hose 10000Mm Long

219704410

$52.96

85

Spring Clamp

414554800

$0.81

100

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

110

Norma Spring Clamp

513033010

$8.42

120

Polyurethane Hose 1000Mm Long

219704391

Unavailable

170

Male Connector

414872700

Unavailable

180

Grommet

513033435

$4.28

200

Crimp Clamp

293650053

$2.78

220

Formed Hose

513033165

$28.33

230

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Fuel Pump

513033184

$84.99

305

Hex. Flange Screw M6 X 10

210261040

$1.43

330

Spring Clamp

414415200

$0.81

340

Formed Hose

513033327

$23.10

350

Universal Spring Clamp

513033029

$4.96

360

Oetiker Clamp

293650125

$3.09

370

Formed Hose

513033343

$23.10

380

Spring Clamp

414655700

$0.66

400

RH Cap

513033418

$12.24

410

LH Cap

513033419

$12.24

420

Shoulder Bushing

513033326

$12.24

800

Insulating Foam

513033588

$12.24

900

Gasket

513033813

$3.19
