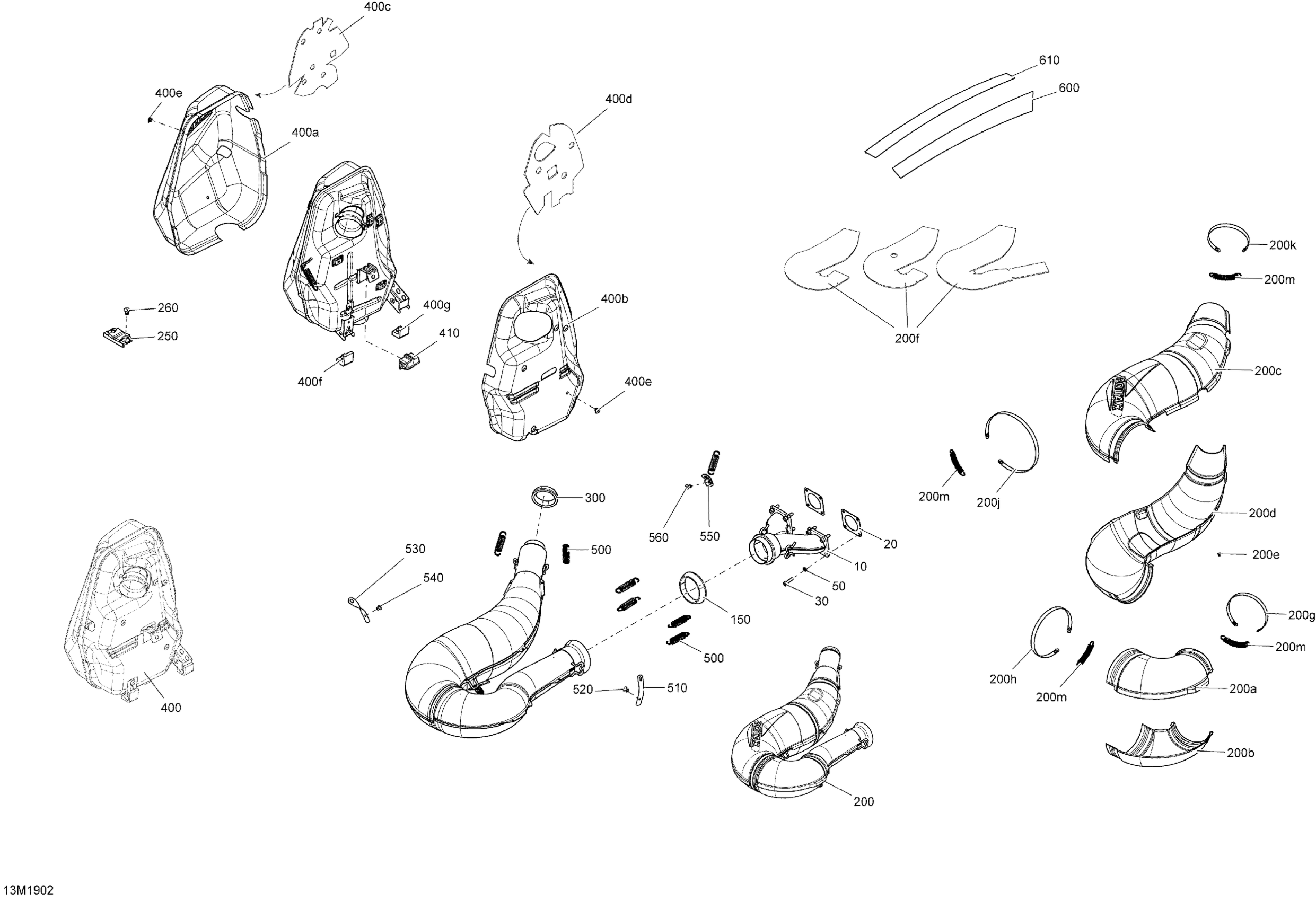

Ski-Doo MXZ 600 CARB - 2020 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Manifold

420673131

$289.99

20

Gasket

420931610

$11.65

30

Socket Head Screw M8 X 25

205082544

$1.15

40

Hex. Screw M8 X 20

207182044

$0.74

50

Washer

250200111

$2.11

150

Exhaust Gasket

514053487

$26.49

200

Exhaust Tuned Pipe | Includes 200 to 200m

514055064

$752.49

200a

Front Upper Half Enveloppe

514054992

$40.99

200b

Front Lower Half Enveloppe

514054993

$40.99

200c

Rear Upper Half Enveloppe

514055039

$65.99

200d

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

200e

Henrob Rivet

293150091

$0.77

200f

Insulating Wool

514054487

$20.99

200g

Retaining Strap

514054408

$13.10

200h

Retaining Strap

514054409

$13.10

200j

Retaining Strap

514054410

$13.10

200k

Retaining Strap

514053499

$11.47

200m

Spring

514053643

$6.35

250

Bumper

514054275

$16.34

260

Pop Rivet 3/16"

293150103

$0.55

300

Exhaust Gasket

514053812

$25.99

400

Muffler Ass'y | Includes 400 to 400g

514054972

$858.49

400a

RH Deflector

514054984

$58.99

400b

LH Deflector

514054967

$58.99

400c

RH Insulating Wool

514054711

$21.99

400d

LH Insulating Wool

514054299

$20.99

400e

Pop Rivet 3/16”

390910000

$0.57

400f

Lower Stopper

514054274

$20.49

400g

Lower Stopper

514054496

$26.49

410

Upper Stopper

514054606

$19.99

500

Spring

415107100

$6.35

510

Spring Bracket, 5mm hole

514054974

$8.45

520

Stavex Rivet

293150144

$0.82

530

Spring Bracket, 5mm hole

514054974

$8.45

540

Avex Rivet

390909200

$0.30

550

Spring Bracket, 8.0mm hole

514054975

$8.45

560

Ornit Rivet 6,5 X 14.5

293150266

$2.40

600

Reflective Sheet

514054488

$14.99

610

Heat Shield

514054817

$5.69
