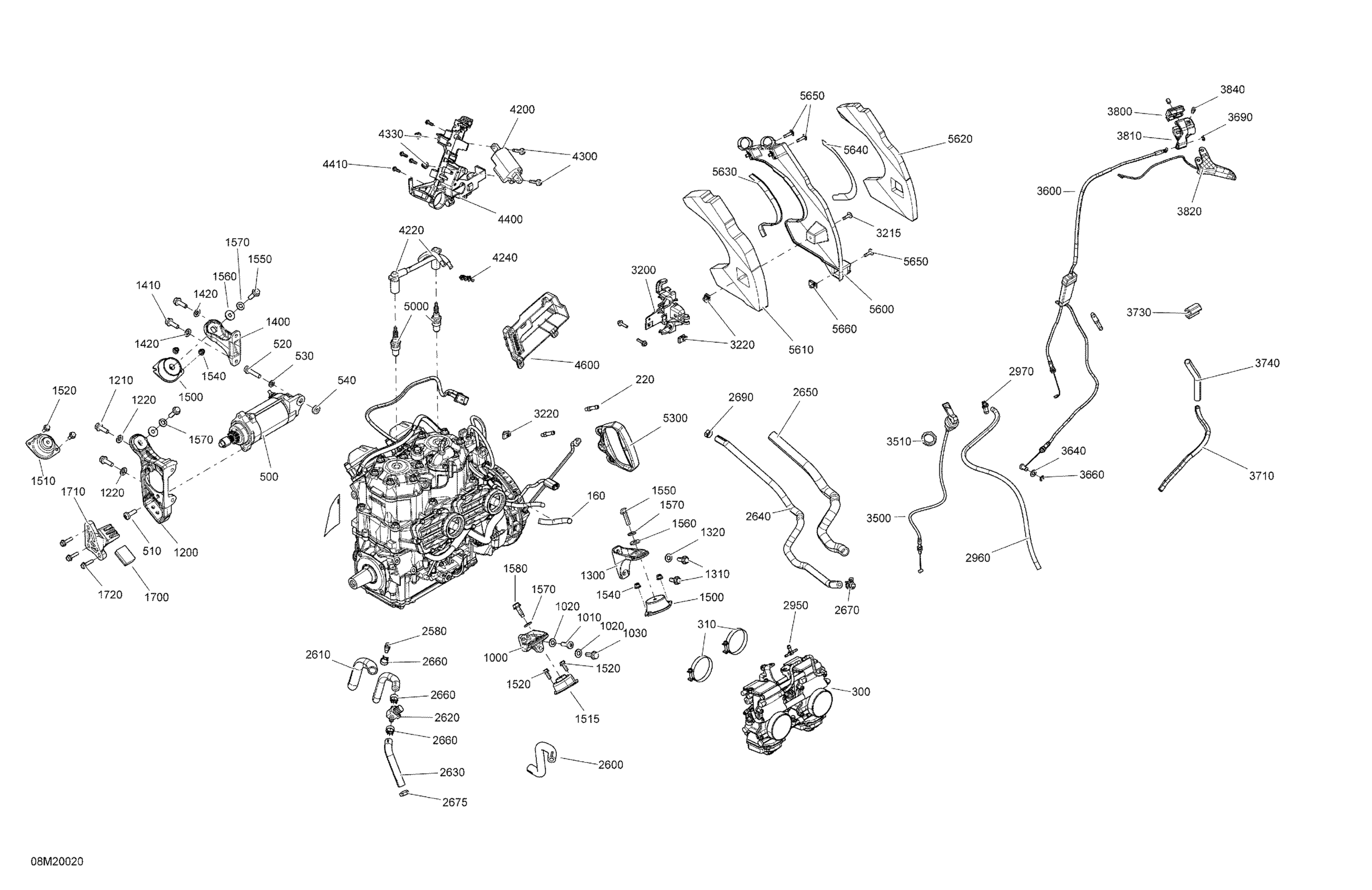

Ski-Doo MXZ 600 CARB - 2020 Engine - System Diagram

#

Description
Price

160

Tubing 10 MM 1000MM Long

219704407

$2.79

220

Hose Nipple

420924724

$14.83

300

Carburetor Kit, TM40-B418

403138815

$1.00

310

Gemi Clamp

512059835

$11.60

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

520

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

530

Flat Washer With Teflon 8 mm

250200008

$3.80

540

Washer

515176500

$11.12

1000

Rear Support, PTO

512060478

$31.99

1010

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

1020

Conical Spring Washer M8

250200146

$1.01

1030

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1200

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1300

Rear Support, MAG

512060559

$31.99

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1320

Conical Spring Washer M8

250200146

$1.01

1400

Front Support, MAG

512060469

$31.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Rubber Mount

512060729

$65.99

1510

Rubber Mount

512060387

$46.99

1515

Rubber Mount

512060448

$51.99

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1550

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Conical Spring Washer M8

250200146

$1.01

1580

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

1700

Stopper

512060627

$10.33

1710

Stopper Support

512060576

$29.49

1720

Hex. Flange Screw M6 X 25

207562544

$1.69

2580

Male Connector 1/8"-27 NPT

512060196

$10.33

2600

Hose Formed

512060355

$24.49

2610

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2620

Valve 5/16” | Grand Touring 500.

512059324

$44.99

2630

Hose Formed

512060353

$23.49

2640

Hose Formed

512060347

$31.99

2650

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2660

Spring Clamp

414655700

$0.72

2670

Norma Spring Clamp

293650214

$15.89

2675

Oetiker Clamp

293650125

$3.29

2690

Oetiker Clamp

293650046

$2.89

2950

T-Fitting

572045500

$7.51

2960

Polyurethane Hose 10000Mm Long

219704410

$56.99

2970

Male Connector

414580700

$4.12

3200

Solenoid Support

512060298

$14.22

3215

Torx Screw M5 X 20

250000528

$2.11

3220

Panel Nut M5 X 0.8

250000958

$4.23

3500

Choke Cable

512060672

$44.49

3510

Plastic Nut

512060671

$1.01

3600

Throttle Cable

512060886

$76.49

3640

Flat Washer 8 mm, Nylon

234081100

$1.39

3660

Circlip

414753500

$0.71

3690

Circlip

414274500

$0.90

3710

Tubing 6 Mm 3000Mm Long

219704425

$13.75

3730

Protector

512060313

$10.33

3740

Tubing 10 MM 1000MM Long

219704407

$2.79

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Throttle Handle Ass'y

512061252

$124.99

3840

Flange Screw

732601143

$4.12

4200

Ignition Coil

512059968

$51.99

4220

Cable

512060291

$51.99

4240

Plastic Clip, Spark Plug Wire

410914600

$5.61

4300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

4330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4400

Coils Support

512060924

$10.33

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

4600

Calibrated Module, 600

512060680

$739.99

5000

Spark Plug NGK BR9ECS

415128524

$10.59

5300

Starter Grip

512060136

$14.83

5600

Noise Shield

512060338

$18.49

5610

Inner Noise Foam

512060341

$19.99

5620

Outer Noise Foam

512060342

$19.99

5630

Heat Shield

512060574

$7.79

5640

Heat Shield

512060575

$8.59

5650

Torx Screw M5 X 20

250000528

$2.11

5660

Panel Nut M5 X 0.8

250000958

$4.23
