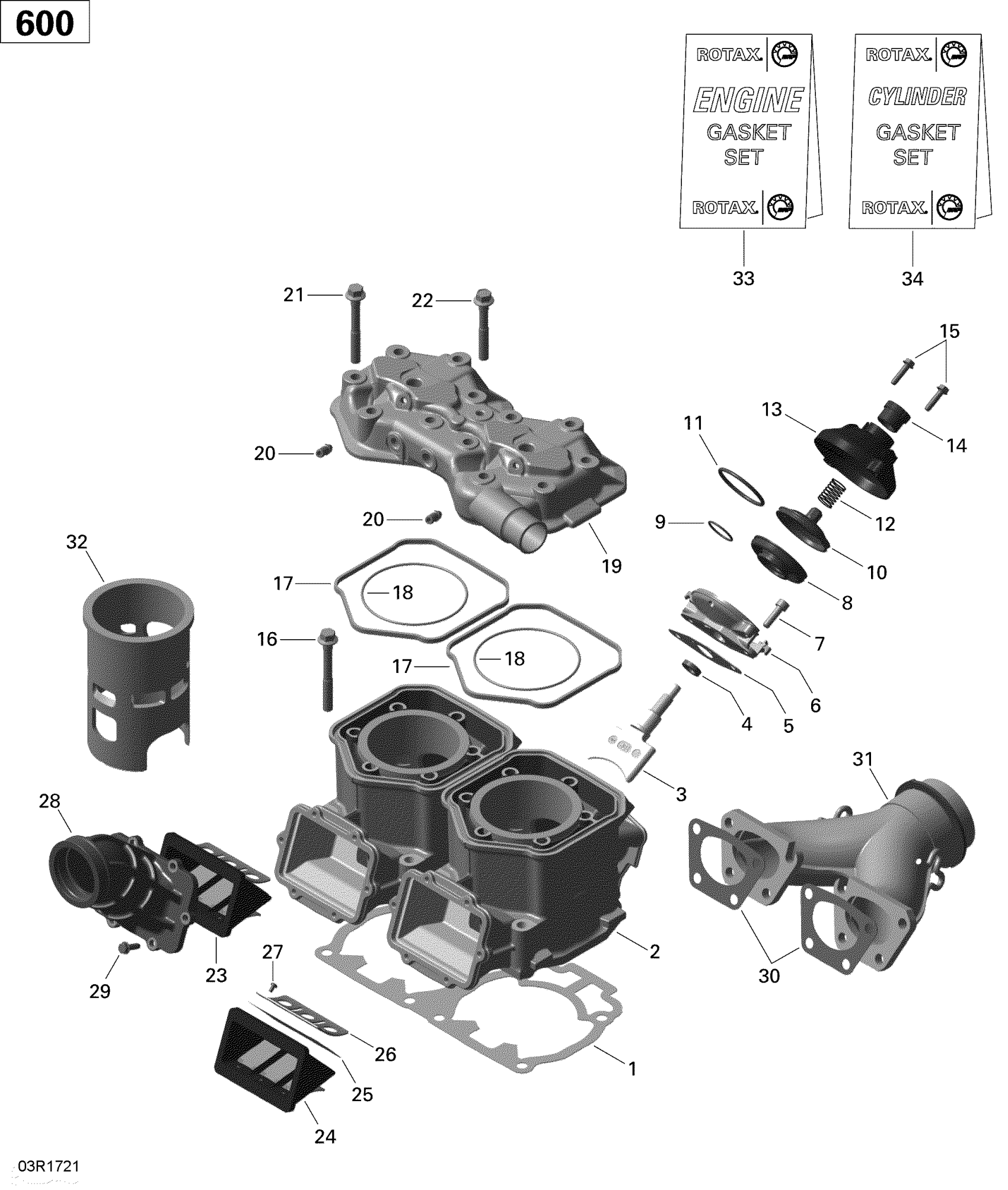

Ski-Doo MXZ 600 CARB - 2020 Engine - Cylinder and Cylinder Head - 600 CARB Diagram

#

Description
Price

1

Gasket 0.5 mm

420431420

$23.10

1

Gasket 0.6 mm

420431421

$18.63

1

Gasket 0.7 mm

420431422

$26.09

1

Gasket 0.8 mm

420431423

$24.60

1

Gasket 0.9 mm

420431424

$23.85

2

Cylinder With Sleeve

420613628

$435.04

2

Cylinder With Sleeve

420613628

$435.04

3

Exhaust Valve

420854371

$55.94

4

Oil Seal | Included in gasket kit

420950732

$8.09

5

Gasket

420250239

$6.42

6

Valve Housing

420854266

$91.01

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

Hex. Tapping Screw M5 X 20

420841555

$1.63

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

17

Rubber Ring

420931590

$5.52

18

O-Ring This part replaces 420850540.

293300026

$3.06

19

Cylinder Head Cover

420413011

$271.61

20

Hose Nipple

420924724

$14.10

21

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

22

Hex. Screw M8 X 56.5

420941627

$8.09

23

Reed Valve Ass'y

420924519

$49.22

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Reed Pedal

420924532

$42.51

26

Reed Pedal Stop

420924539

$11.18

27

Phillips Screw M3 X 5

420941215

$1.63

28

Intake Socket

420667490

$112.66

29

Taptite Screw M5 X 16

420941928

Unavailable

30

Gasket

420931610

$11.04

31

Exhaust Manifold

420673131

$263.40

32

Cylinder Sleeve

420923443

Unavailable

33

Gasket Set, Engine

420893070

$203.70

34

Gasket Set, Cylinder

420893075

$161.91
