Description

Price

10

Black, Front Bottom Pan

502006971

$114.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Foam Upper

502007210

$15.99

50

LH Foam Upper

502007211

$17.49

60

RH Middle Foam

502007212

$21.99

70

LH Middle Foam

502007213

$21.99

80

RH Lower Foam

502007214

$15.99

90

LH Lower Foam

502007215

$15.99

200

Deep Black Bottom Pan Cap

502007068

$70.99

210

Torx Truss Screw M6 X 20

250000705

$2.11

220

Panel Nut M6 X 1.0

250100198

$2.11

400

Black, RH Bottom Pan

502006831

$77.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

415

Pop Rivet 3/16"

293150103

$0.55

420

Pop Rivet 3/16"

390402300

$0.75

430

Washer

517124300

$0.19

440

Torx Screw K50 X 16

250000720

$1.69

450

Black, Nylon Cap

414916600

$4.69

600

Black, LH Bottom Pan

502007252

$88.99

605

Gasket, Neoprene 2000Mm Long

219704476

$15.36

610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

615

Pop Rivet 3/16"

293150103

$0.55

620

Pop Rivet 3/16"

390402300

$0.75

630

Washer

517124300

$0.19

640

Torx Screw K50 X 16

250000720

$1.69

650

Black, Nylon Cap

414916600

$4.69

800

Black Front Bumper

502007116

$78.49

810

Hex. Flange Screw M6 X 20

207662044

$2.00

820

Elastic Flange Nut M6 X 1.0

233261416

$2.11

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

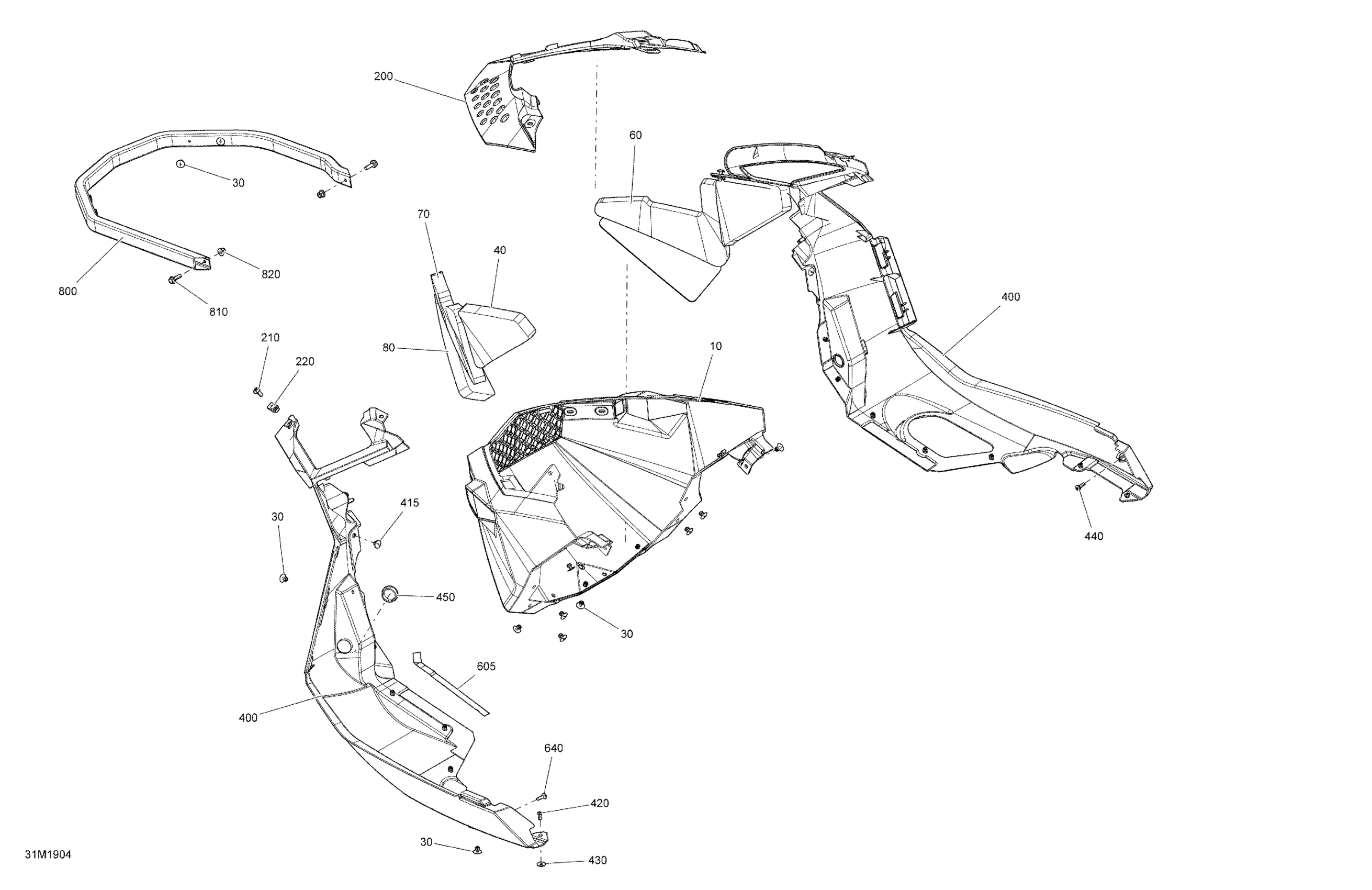

Ski-Doo 001 - MXZ 600 CARB, 2019 09- Bottom Pan Diagram

Black, Front Bottom Pan

Pop Rivet 3/16" | DS 650 X

RH Foam Upper

LH Foam Upper

RH Middle Foam

LH Middle Foam

RH Lower Foam

LH Lower Foam

Deep Black Bottom Pan Cap

Torx Truss Screw M6 X 20

Panel Nut M6 X 1.0

Black, RH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Pop Rivet 3/16"

Washer

Torx Screw K50 X 16

Black, Nylon Cap

Black, LH Bottom Pan

Gasket, Neoprene 2000Mm Long

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Pop Rivet 3/16"

Washer

Torx Screw K50 X 16

Black, Nylon Cap

Black Front Bumper

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Pop Rivet 3/16" | DS 650 X
